L605
DLX
black , pickled, bright
850
5kg
7-20 days
Tool Steel sheet
Haynes25
Product Description

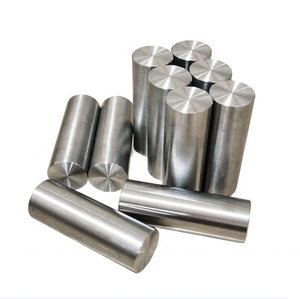

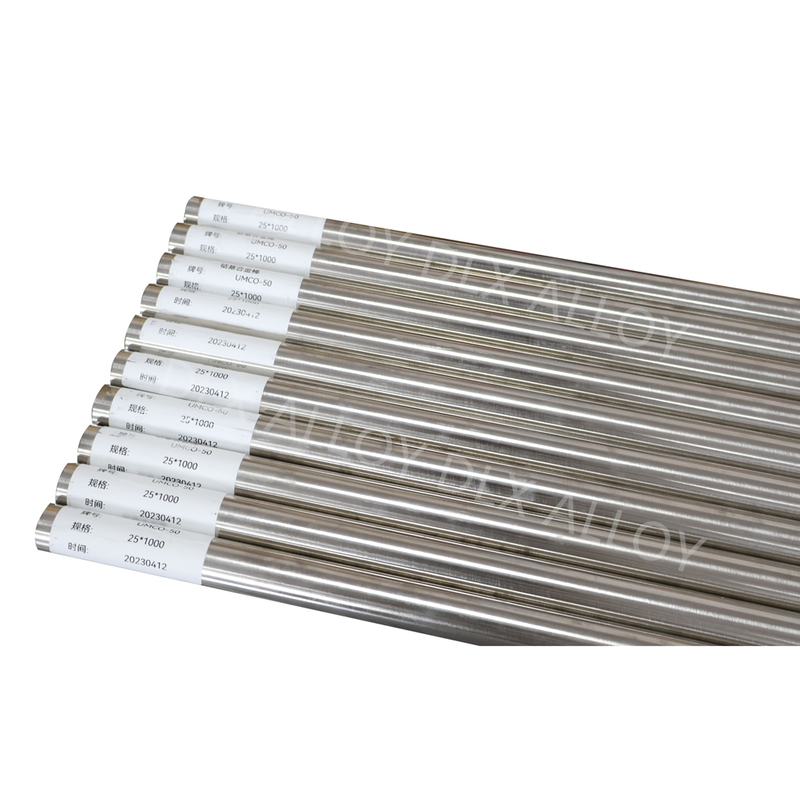

Cobalt Base Alloy Bars L605 are a class of high-temperature alloys primarily based on metallic cobalt, strengthened by adding elements such as chromium, tungsten, molybdenum, nickel, and carbon. Renowned for their exceptional high-temperature strength, superior wear resistance, outstanding corrosion resistance (especially to hot corrosion), and excellent thermal fatigue resistance, these alloys maintain structural integrity and functionality in extreme environments (e.g., high temperature, high pressure, severe wear, oxidation, and molten metal corrosion). They are the material of choice for critical applications in aerospace engines, gas turbines, chemical equipment, and wear-resistant components.
Maintains superior tensile strength and creep resistance at temperatures up to 1000°C or higher, significantly outperforming many stainless steels and nickel-base alloys.
Exhibits extremely high resistance to sliding wear, abrasive wear, and erosive wear (especially alloys containing carbide-strengthening phases), resulting in long service life.
Forms a dense, stable chromia (Cr₂O₃) protective layer at high temperatures, resisting oxidation in air or oxygen-containing environments.
Offers excellent resistance to "hot corrosion" (high-temperature sulfidation/oxidation) caused by combustion of fuels containing sulfur, vanadium, and other impurities – a key advantage over some nickel-base alloys.
Demonstrates good corrosion resistance in numerous acids, alkalis, and molten metal environments.
Withstands repeated heating and cooling cycles without significant crack formation, ideal for components experiencing severe thermal cycling.
Achieves dual strengthening via solid solution elements (Cr, W, Mo) and hard carbide phases (e.g., Cr₂₃C₆, WC, W₂C), delivering comprehensive performance.
Some cobalt-base alloys offer good weldability (requiring specific procedures) and can be processed into complex parts via casting, forging, powder metallurgy, and machining (though generally more challenging to machine than austenitic stainless steels).
Specification
| Steel grade | Haynes 25 | Haynes 188 | Haynes 214 | Hyanes 230 | Haynes 242 |
| Corresponding brand | L605,UNS R30605、AMS 5537、AMS 5796、AMS 5804 | HA188 UNS R30188 KCN22W | UNS N10242 ,ASTM B434 W.NR 2.4646 UNS N07214 AWS 061 | UNS N06230 ASME SB435， UNS N06230 AMS5878 ANS5891 | UNS N10242 ,ASTM B434 |
| Cobalt Base Alloy Bar L605 Chemical composition% | |||||
| C | 0.05-0.15 | 0.05-0.15 | 0.15 | 0.05-0.15 | 0.03 |
| Cr | 19.0-21.0 | 20.0-24.0 | 15.0-17.0 | 20.0-24.0 | 8.0 |
| Ni | 9.0-11.0 | 20.0-24.0 | balance | balance | balance |
| W | 14.0-16.0 | 13.0-16.0 | 1.0 | 13.0-15.0 | / |
| Co | balance | balance | 2.0 | 5.0 | 2.5 |
| Mn | 1.0-2.0 | 1.25 | 1.0 | 0.3-1.0 | 0.8 |
| Fe≤ | 3.0 | 3.0 | 2.0-6.0 | 3.0 | 2.0 |
| Si≤ | 1.0 | 0.20-0.50 | 0.50 | 0.25-0.75 | 0.8 |
| P≤ | 0.03 | 0.020 | / | 0.030 | / |
| S≤ | 0.030 | 0.015 | 0.015 | 0.015 | / |
| Mo≤ | / | / | 1.0 | 1.0-3.0 | 24.0-26.0 |
| Ti≤ | / | / | 0.5 | / | / |
| Al≤ | / | / | 4.0-5.0 | 0.20-0.50 | 0.50 |
Application Field
Due to their unique combination of properties, Cobalt Base Alloy Bars are widely used in the following demanding applications:
Gas Turbines: Turbine blades, guide vanes, combustion chamber components, sealing rings, nozzles.
Aircraft Engines: High-temperature valves, valve seats, bearings.
Gas & Steam Turbines: Blades, nozzles, burner components.
Nuclear Industry: Wear- and corrosion-resistant parts.
Valves & Trim (Seats, Plugs, Stems): For highly corrosive, solid-particle-laden, high-temperature/pressure environments.
Pump Components (Impellers, Wear rings).
Catalyst grids, high-temperature furnace internals.
Wear-Resistant Components: Cutting tools, dies (especially hot-work dies), bearings, sealing rings, wear plates, rolls, screw conveyor flights.
Medical Implants: Certain alloys (e.g., CoCrMo) for orthopedic implants (hips, knees), dental implants
Valves & Trim (Seats, Plugs, Stems): For highly corrosive, solid-particle-laden, high-temperature/pressure environments.
Pump Components (Impellers, Wear rings).
Catalyst grids, high-temperature furnace internals.
DLX Advantage
CHANGZHOU DLX ALLOY CO, LTD was established in 2002 and has got ISO9001 International Quality Management System Certificate and SGS Certificate. Our factory is professional in researching and producing special alloy material. From melting, drawing, heat treatment, finishing and testing .We offer nickel-based, copper-based, and iron-based alloys, including super alloy, welding materials, anti-corrosion alloy, precision alloy, FeCrAl alloy, NiCr alloy, CuNi alloy, thermocouple and etc, in the form of wire, strip, ribbon, bar, tube, plate.
1.Market Leader - Top 5 in China's nonferrous metal industry
2.Flexible products - Thousands of product specifications,Meet multiple needs of buyers
3.Low MOQ - Can customize samples
4.Short production lead time，fast delivery of whole cabinet
5.Professional inspection equipment - Before delivery, we will use spectrometers, tensile testers and other professional equipment to conduct a comprehensive inspection of the products to ensure that the goods are qualified for acceptance
6.Professional business team - Quickly responds to customer inquiries,24-hour professional quotation online The salesperson will follow the customer's requirements for the use of the product,Professionally recommend more appropriate performance and price products to customers
7.Intact packaging - Packaging according to customer needs.You can customize wooden boxes to ensure that the goods arrive at the destination in good condition
8.Various payment methods - Facilitate customer payment
9.Get good reviews from customers - Old customers have long-term cooperation,The longest is more than 7 years
10.Received various awards - Google is very recognized by us,They give us awards every year
FAQ
Opt for our L605 cobalt alloy bars for factory-direct supply at competitive wholesale prices, ensuring high purity ideal for electronic and industrial applications. We offer custom sizes, large stock availability, and fast global shipping for reliable delivery.
Delivery for small orders of L605 alloy bars typically takes 10-30 days, depending on quantity. Large orders may require up to 60 days to ensure quality production.
Yes, we fully support OEM and ODM production for cobalt base alloy bar L605. Simply send us your samples or drawings to get started.
We accept flexible payment options including T/T, L/C, D/A, D/P, Western Union, MoneyGram, and PayPal for seamless transactions.
Absolutely, you're welcome to visit our factory anytime before placing your L605 alloy bar order. This helps us build a strong partnership.
Our production base for cobalt base alloy bar L605 is in Jiangsu, China, with efficient global shipping based on your order size and requirements.
Yes, we can provide samples of our high-purity L605 alloy bars upon request to help you evaluate quality.
