Grades | Nickel (Ni) | Copper (Cu) | Aluminum (Al) | Titanium (Ti) | Iron (Fe) | Manganese (Mn) | Sulfur (S) | Carbon (C) | Silicon (Si) |
Monel 400 | ≥ 63 | 28-34 | ≤ 2.5 | ≤2.0 | ≤ 0.024 | ≤ 0.3 | ≤ 0.5 | ||
Monle K500 | ≥63 | 27-33 | 2.3-3.15 | 0.35-0.85 | ≤2 | ≤1.5 | ≤0.01 | ≤0.25 | ≤0.5 |
Grades | Density (g/cm³) | Melting Point (°C) | Tensile Strength (Rm N/mm²) | Yield Strength (Rp 0.2N/mm²) | Elongation at Break A5 (%) | Brinell Hardness (HB) |
Monel 400 | 8.83 | 1300°C-1390°C | 480 | 170 | 35 | ≥331 |
Monel K500 | 8.05 | 1288°C-1343°C | 1100 | 790 | 20 | / |
Steps | DZX Do | Time |
Confirmation of product parameters and application | We confirm the product according to the demand | Immediate |
Sample customization | In stock or confirm OEM/ODM customization | Immediate |
Production and processing | Confirmation of production as well as product testing | 7-15 days |
Packaging and Transportation | Using carton + preservative film + pallet | According to the national |
Monel alloys offer high corrosion resistance, strength, and durability, especially in marine and chemical environments.
Common grades include Monel 400 and Monel K-500, each suited to specific corrosion and strength requirements.
Monel alloys are nickel-copper alloys known for their exceptional corrosion resistance, used in various demanding applications.

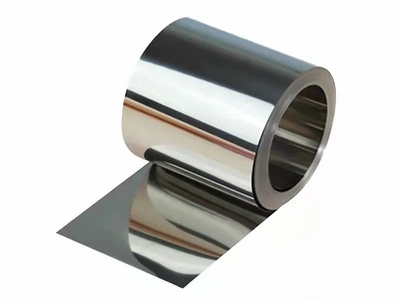

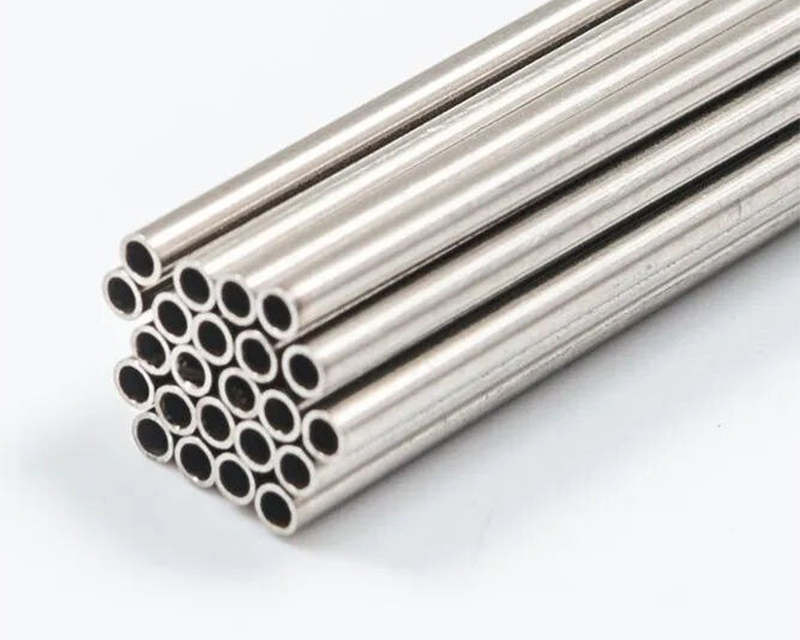

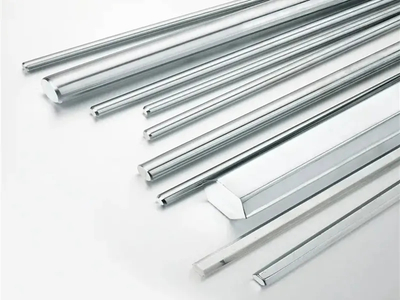

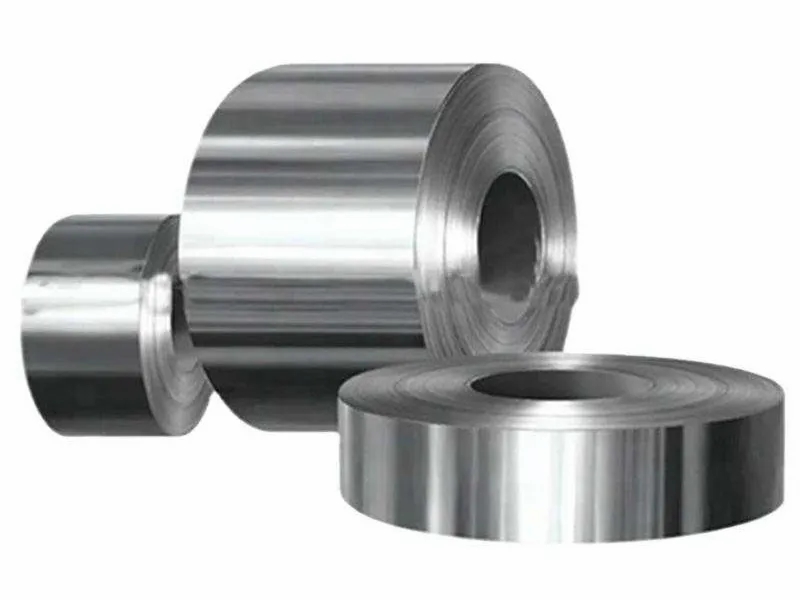

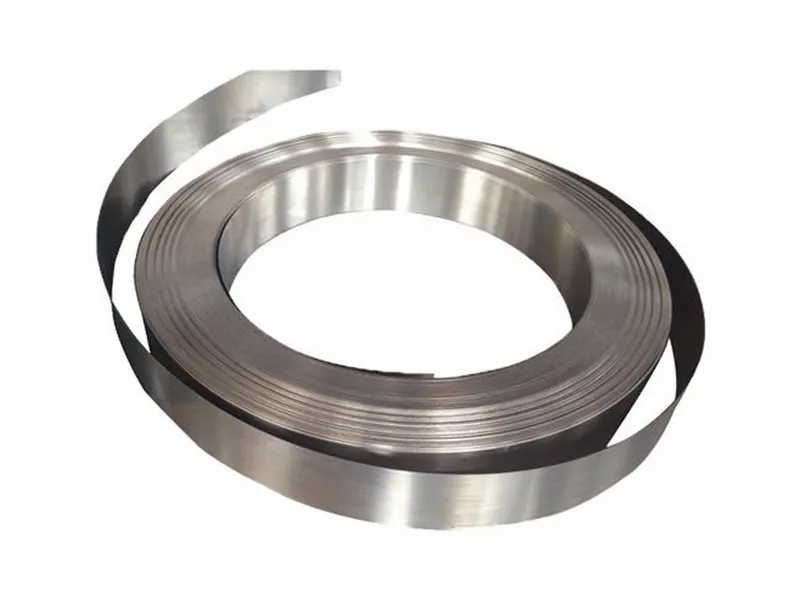

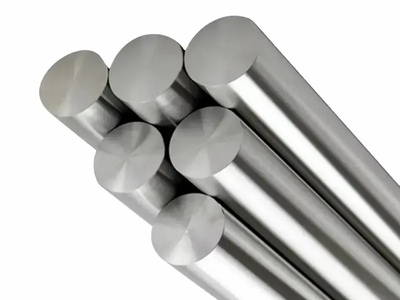

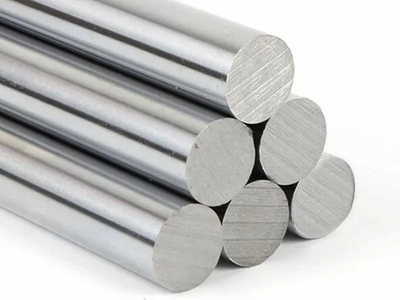

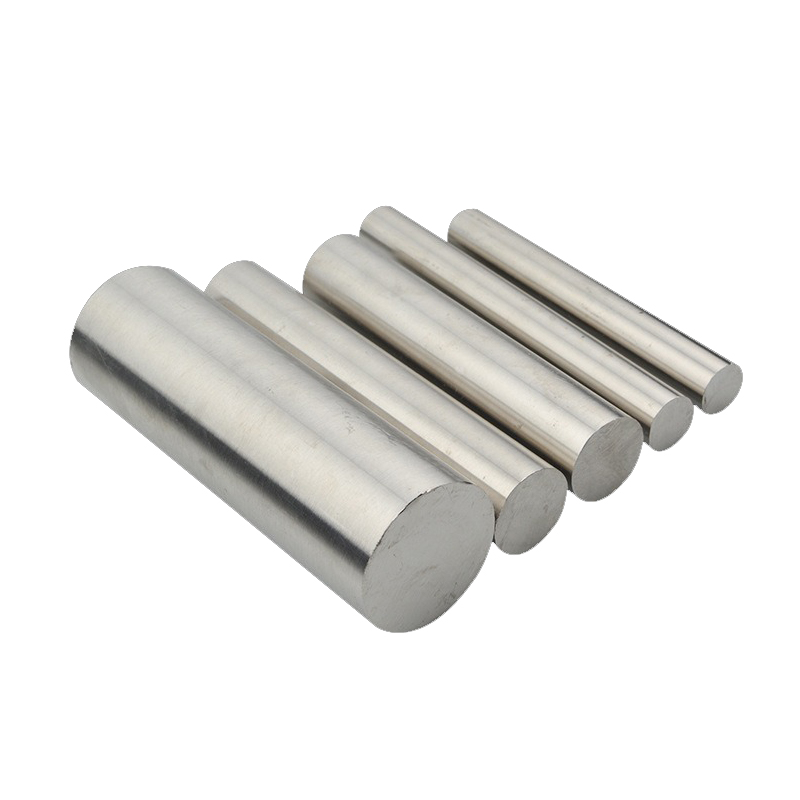

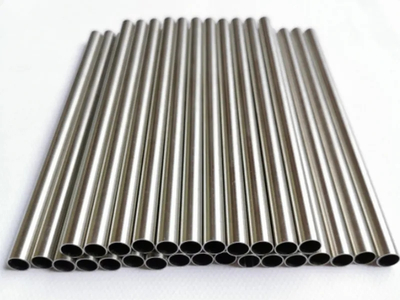

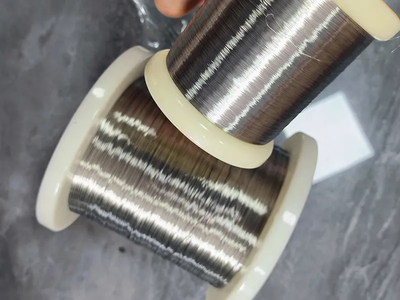

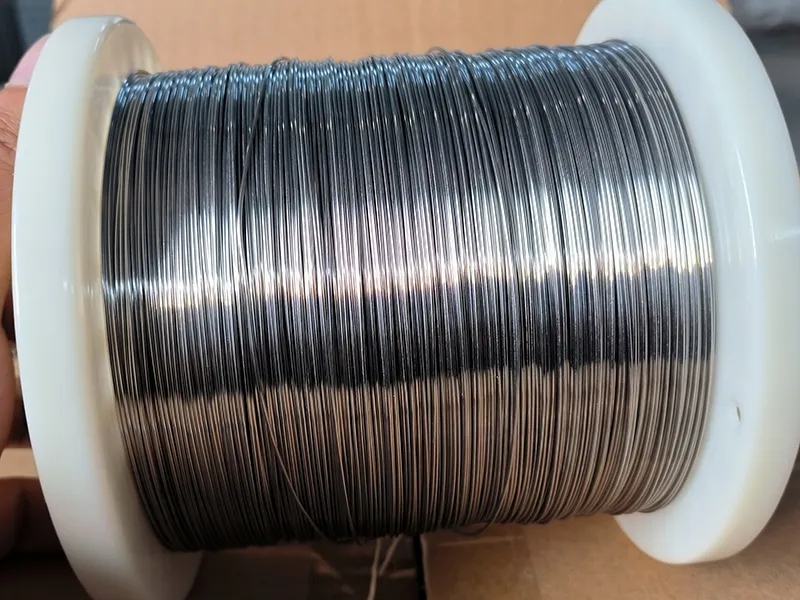

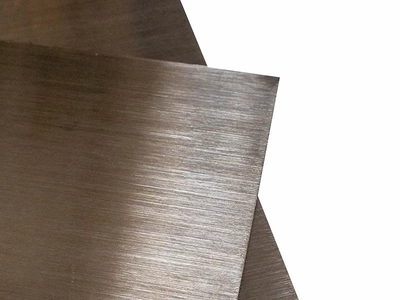

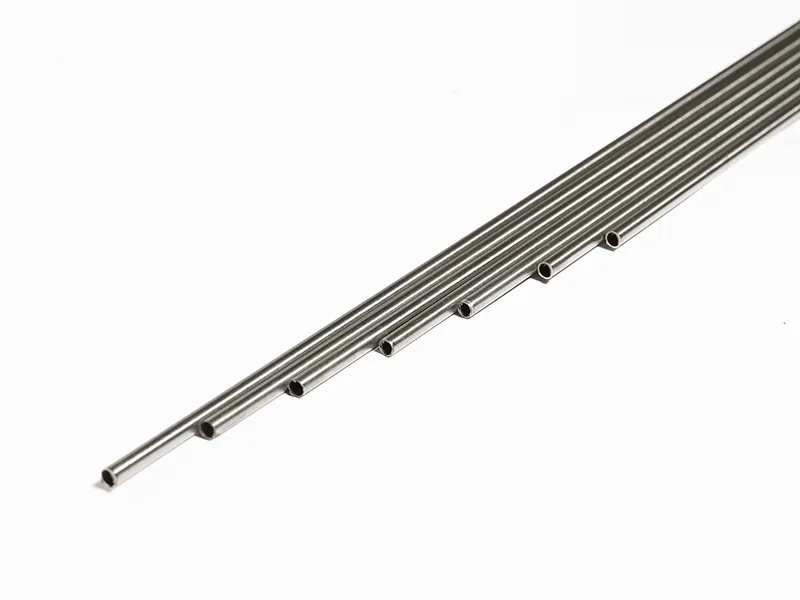

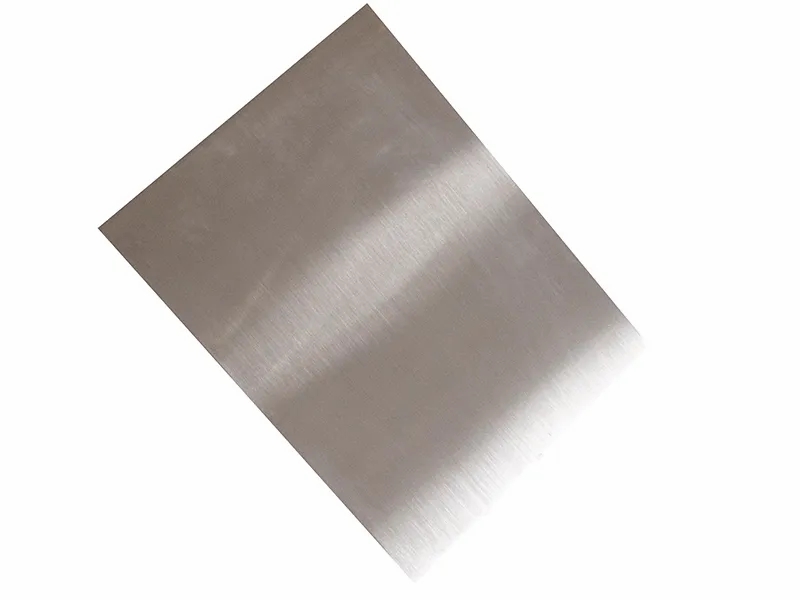

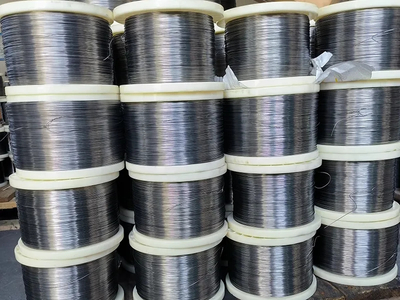

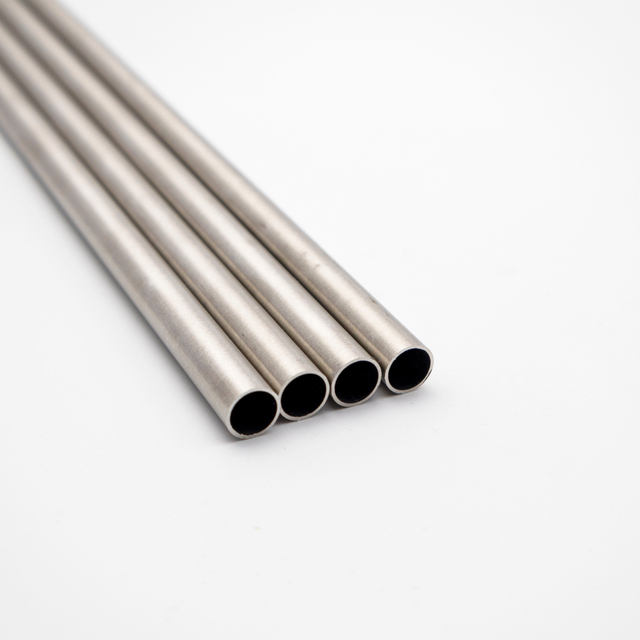

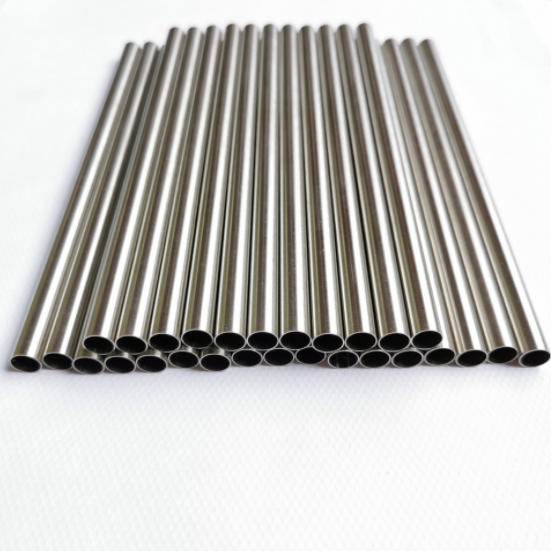

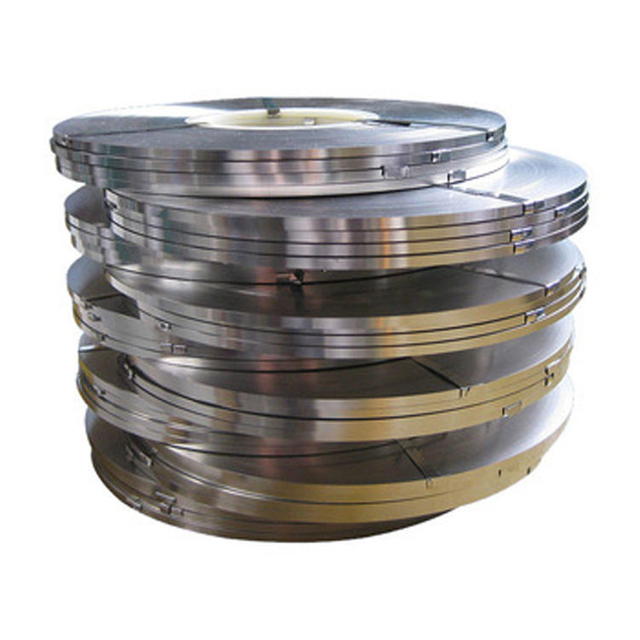

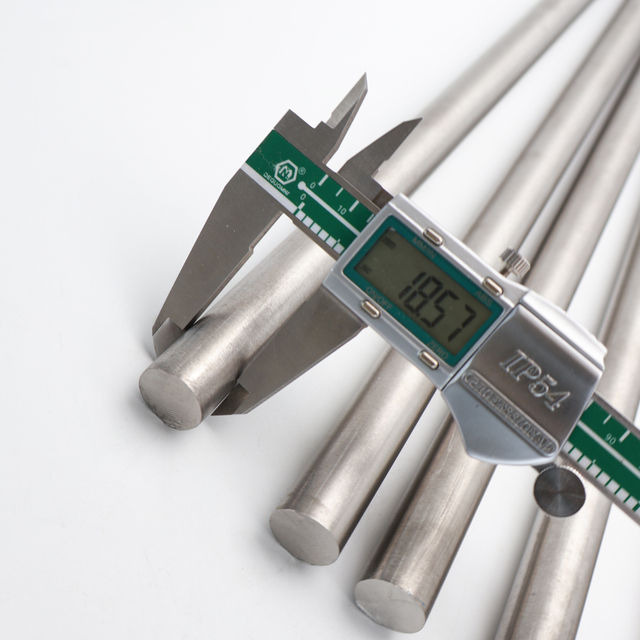

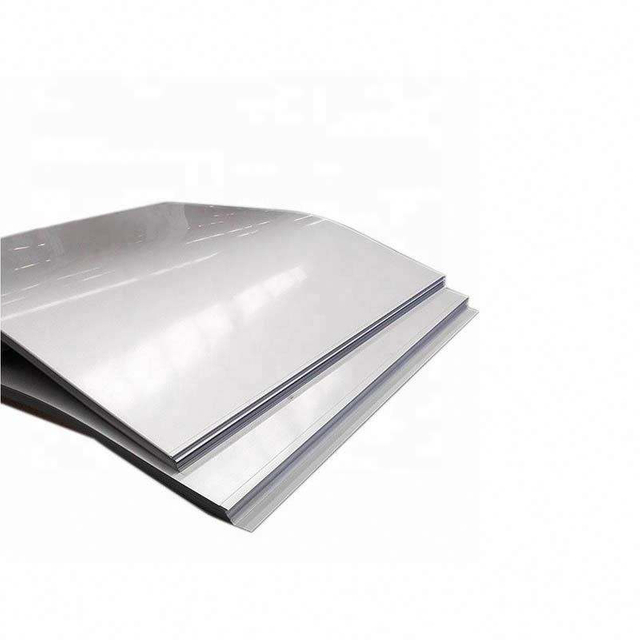

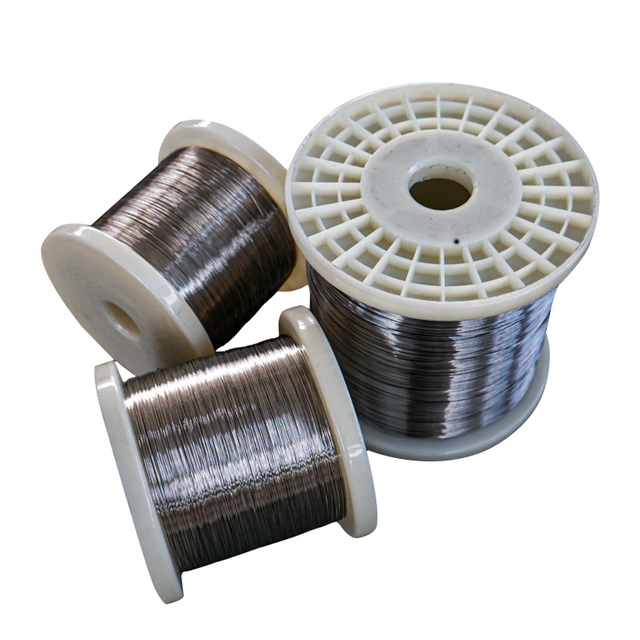

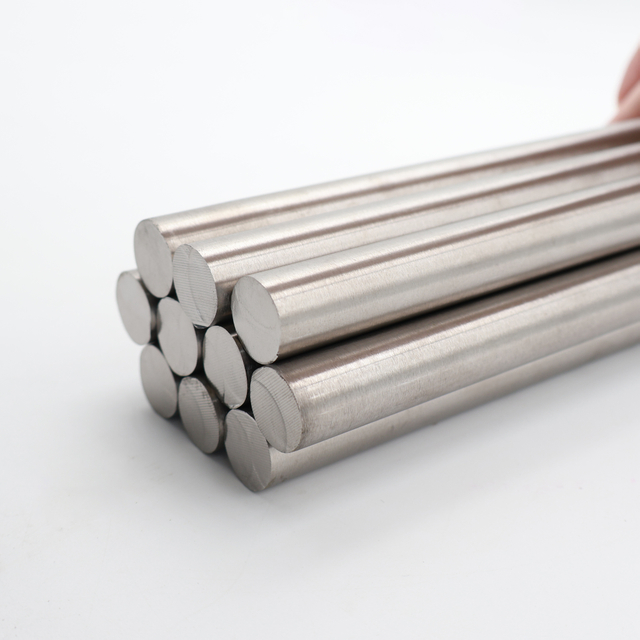

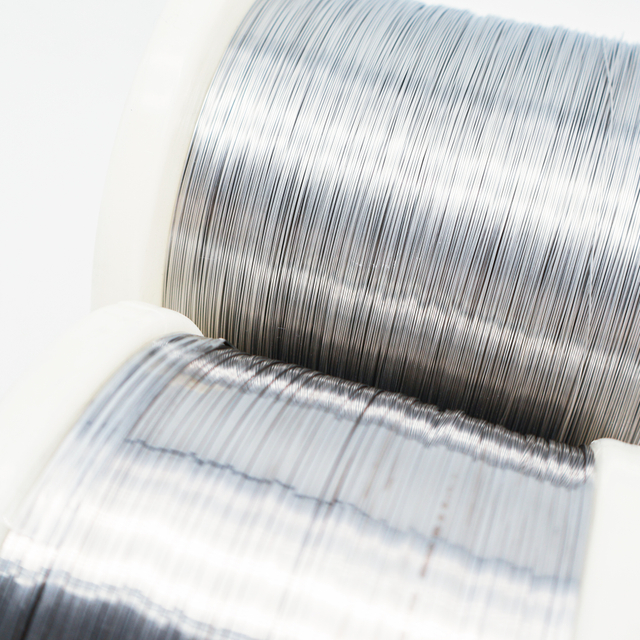

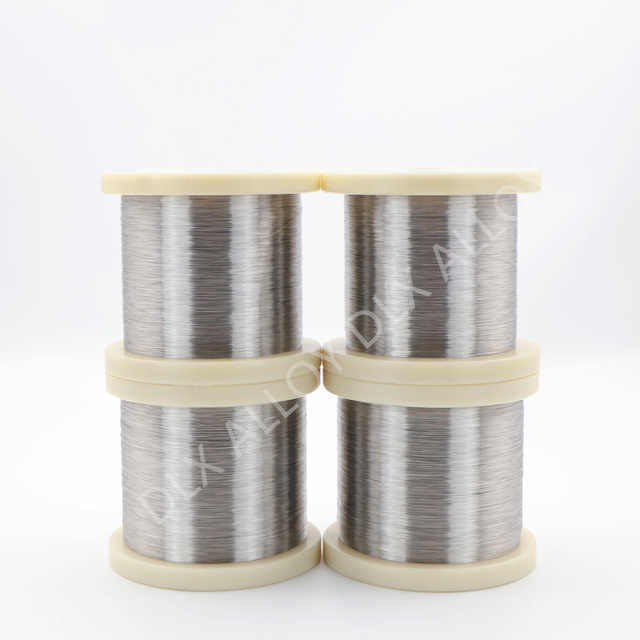

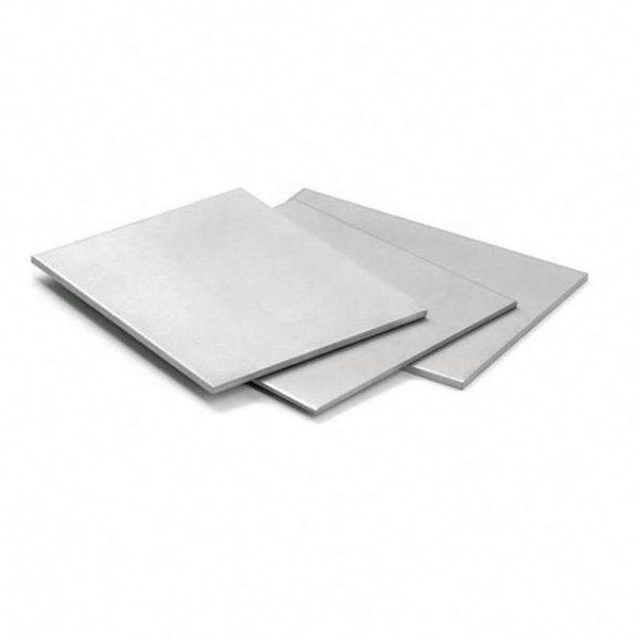

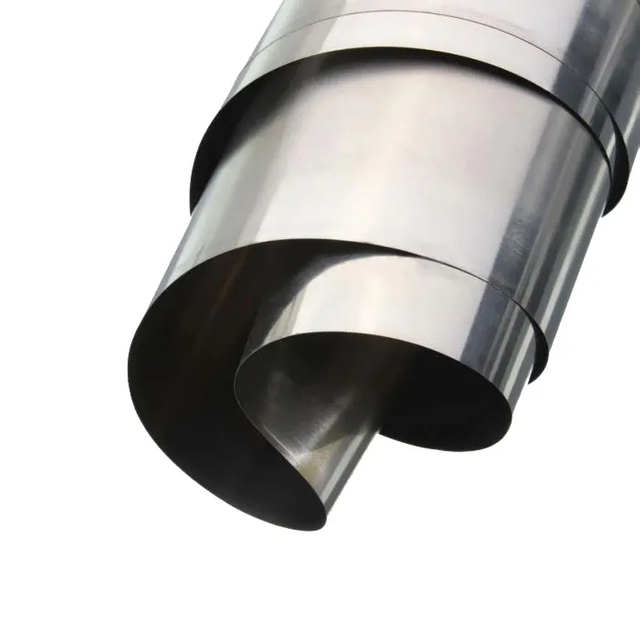

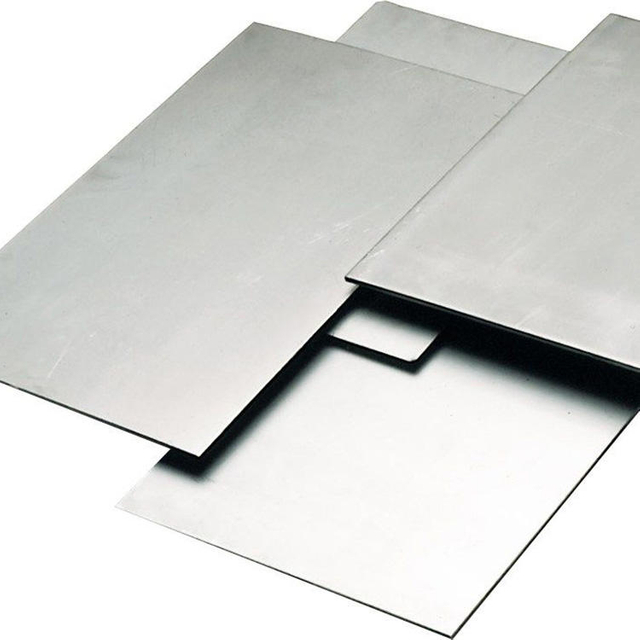

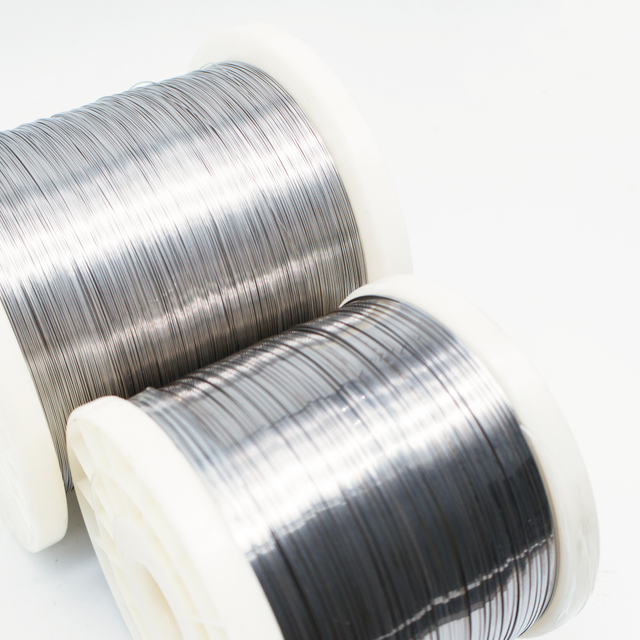

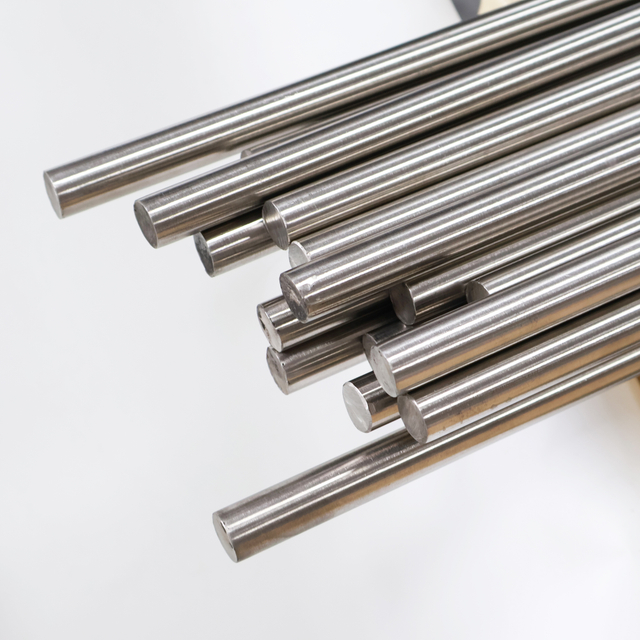

Monel alloys are available as wire, rod, tube, strip, and plate, allowing flexibility for applications like wiring, piping, or structural components.
Marine, oil and gas, chemical processing, and aerospace industries use Monel for its durability in corrosive and high-stress settings.
Monel alloys offer superior corrosion resistance, especially in seawater and acidic conditions, compared to many standard metals.
Monel alloys are used in marine, chemical, and aerospace industries for components like valves, pumps, and heat exchangers exposed to corrosive environments.
