Monel 400, Monel K500
DLX
Customized
8.83 g/cm3
ISO9001
5kg
1300-1390°C
10-25 days
Industry
Ni,Cu,Fe, C,Mn,Si,S
Product Description
Monel K500 Rod, a premier nickel-copper alloy, is engineered to deliver outstanding corrosion resistance in aggressive marine and chemical environments, including seawater, acids, and alkalis. This high-performance alloy is ideal for applications requiring durability and reliability under harsh conditions.
Enhanced by precipitation hardening, Monel K500 Rod offers exceptional yield and tensile strength, approximately three times that of Monel 400, with superior hardness achieved through the addition of aluminum and titanium. It maintains excellent mechanical properties from sub-zero temperatures up to 480°C, making it suitable for both cryogenic and elevated temperature applications.
The unique incorporation of aluminum and titanium in Monel K500 Rod enables age hardening, allowing for enhanced strength without compromising its excellent corrosion resistance. This alloy can be readily fabricated and welded in both annealed and age-hardened conditions, serving critical applications in marine engineering, chemical processing, oil and gas production, and high-performance instrumentation.
Monel K500 Rod resists corrosion from seawater, acids, and alkalis, ensuring durability in harsh marine and chemical environments.
Through age hardening with aluminum and titanium, it achieves exceptional tensile and yield strength, surpassing Monel 400.
Maintains reliable mechanical properties from cryogenic conditions to 480°C, ideal for diverse thermal applications.
Offers outstanding resistance to fatigue and erosion, making it perfect for high-stress components like pump shafts.
Easily machined and welded in annealed or age-hardened states, supporting complex manufacturing for industrial applications.
Specification
| Name | Monel 400(N04400) | Monel K500(N05500) | |
| Chemmical Composition wt. | Ni | 63.0-67.0 | 63.0-67.0 |
| Fe | ≤2.00 | ≤2.00 | |
| C | ≤0.03 | ≤0.25 | |
| Mn | ≤1.50 | ≤0.15 | |
| P | - | - | |
| Si | ≤0.50 | ≤1.00 | |
| Cu | 28.0-34.0 | margin | |
| S | - | ≤0.01 | |
| Cr | - | - | |
| Al | - | 2.0-4.0 | |
| TI | - | 0.25-1.00 | |
| Others | - | - |
| Item | Density | Melting point | Tensile Strength | Yield Strength | Elongation | HB |
| Monel K500 | 8.05 g/cm3 | 1288-1343°C | 1100 | 790 | 20% | - |
| Monel 400 | 8.83 g/cm3 | 1300-1390°C | 480 | 170 | 35% | >331 |
Application Field
Monel K500 Rod N05500 is used in various applications due to its corrosion resistance and strength. Here are five key application fields:
Used in seawater-exposed components like propeller shafts, valves, and fasteners due to excellent resistance to saltwater corrosion.
Employed in equipment like heat exchangers, pumps, and piping systems handling acids and alkalis.
Utilized in high-strength, corrosion-resistant parts such as springs and wiring in harsh environments.
Applied in downhole equipment, valves, and instrumentation for resistance to sour gas and corrosive fluids.
Used in electrical components and heating elements for its high conductivity and durability.
Our Advantage

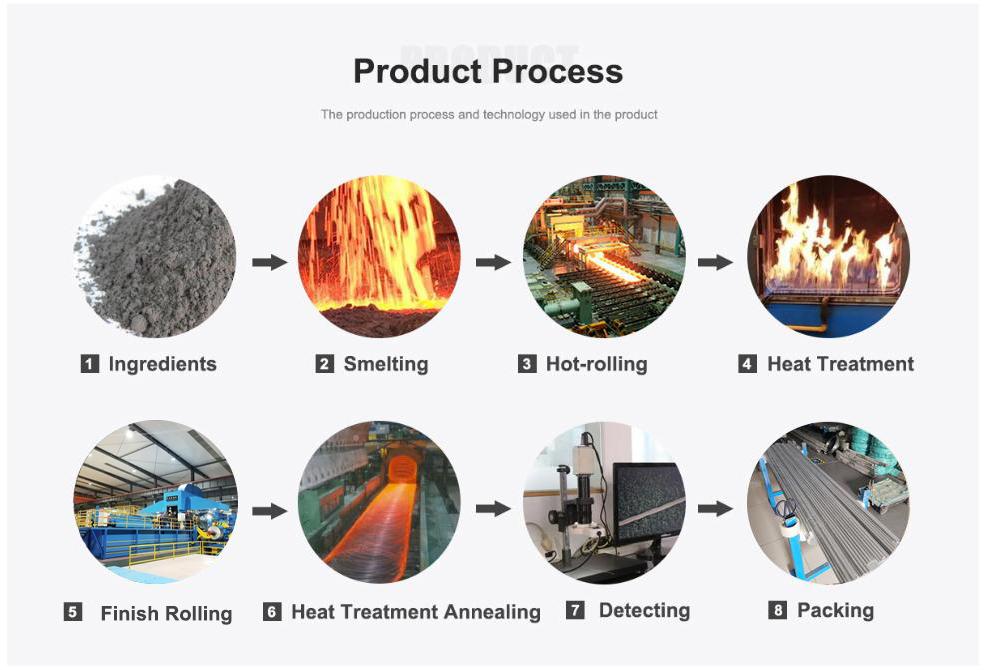

CHANGZHOU DLX ALLOY CO, LTD was established in 2002 and has got ISO 9001 International Quality Management System Certificate and SGS Certificate. Our factory is professional in researching and producing special alloy material. From melting, drawing, heat treatment, finishing and testing .We offer nickel-based, copper-based, and iron-based alloys, including super alloy, welding materials, anti-corrosion alloy, precision alloy, FeCrAl alloy, NiCr alloy, CuNi alloy, thermocouple and etc, in the form of wire, strip, ribbon, bar, tube, plate.
FAQ
Factory Direct Supply with Competitive Wholesale Prices
Custom Sizes & Large Stock Availability
Fast Global Shipping & Reliable Industrial Supply
Guaranteed High Purity for Electronic & Industrial Applications
It depends on the quantity of the order, 10-30 days for small orders. For large orders, it takes 60 days.
Yes! We accept OEM/ODM production. You can send us your samples or drawings.
With professional quality team, advanced product quality planning, strict implementation and continuous improvement, we will issue product quality inspection certificate, including chemical analysis report.
Yes, you can. Please tell us the products and applications you need, and we will send you detailed technical data and drawings for your evaluation and confirmation.
We have a professional business team who will work one-on-one to protect your product needs, and if you have any questions, he can answer them for you!
Yes, you are welcome to visit our factory. We are glad to have the opportunity to get to know each other.
We manufacture our products in Jiangsu, China and ship them from China to your country as soon as possible, which usually depends on your product requirements and quantity.
Yes, we can.
