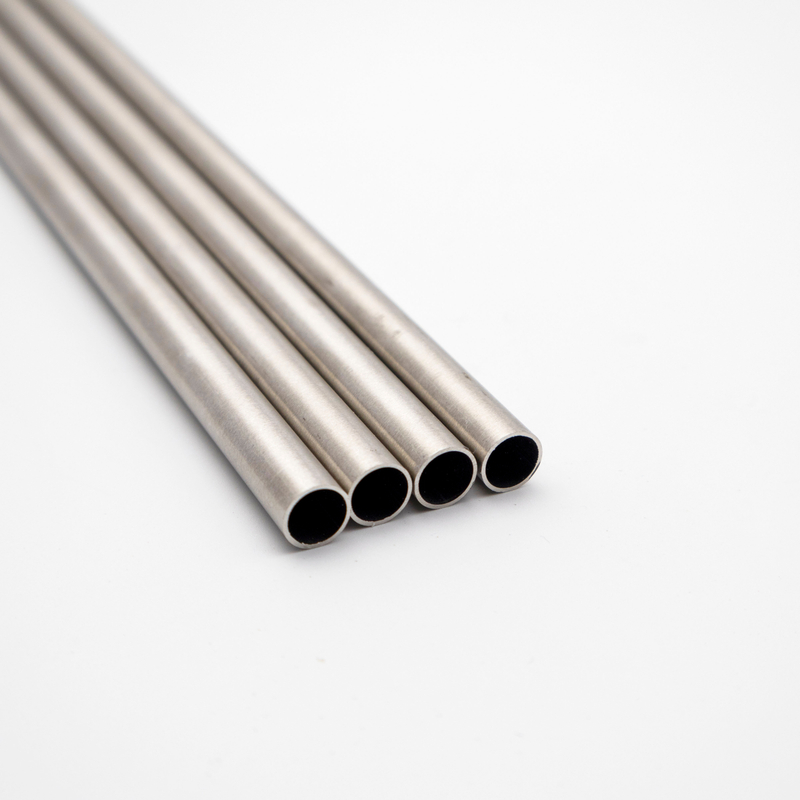

Monel K500 Tubes N05500, a high-performance nickel-copper alloy, offers exceptional corrosion resistance in harsh environments. Ideal for marine, chemical, and oil industries, it ensures durability and reliability. Factory-direct pricing guarantees cost-effective solutions for your industrial needs.
Monel 400, Monel K500
DLX
bright
480
ISO9001
5kg
10-30 Days
chemical,petroleum, aerospace, new energy, etc
Nickel Base Alloy
Product Description
Monel K500 Tubes N05500 is a high-performance nickel-copper alloy renowned for its exceptional corrosion resistance and versatility across a wide range of applications. With excellent resistance to seawater, acids, and alkaline environments, it is widely used in marine, chemical, and oil industries. Monel K500 offers outstanding durability, making it a reliable choice for demanding industrial applications.
1. Excellent Corrosion Resistance - Monel K500 Tubes N05500 exhibits excellent resistance to corrosion in diverse environments, including seawater, hydrofluoric acid, sulfuric acid, and alkalis, making it ideal for marine and chemical processing applications.
2. High Strength and Toughness - This nickel-copper alloy provides robust tensile strength and toughness, maintaining performance across a broad temperature range, from subzero to 1000°F (538°C), suitable for high-pressure and high-temperature environments.
3. Excellent Ductility - Monel K500 Tubes N05500 retains good ductility at low temperatures, ensuring flexibility and reliability in cryogenic conditions without compromising mechanical properties.
4. Thermal Conductivity - With high thermal conductivity, this alloy is well-suited for heat exchangers, condensers, and other thermal management systems in industrial settings.
5. Weldability and Formability - Monel K500 Tubes N05500 is easily welded and fabricated using standard processes, enabling its use in manufacturing complex components such as pipes, fittings, and valves.
Specification
| Name | Monel 400(N04400) | Monel K500(N05500) | |
| Chemmical Composition wt. | Ni | 63.0-67.0 | 63.0-67.0 |
| Fe | ≤2.00 | ≤2.00 | |
| C | ≤0.03 | ≤0.25 | |
| Mn | ≤1.50 | ≤0.15 | |
| P | - | - | |
| Si | ≤0.50 | ≤1.00 | |
| Cu | 28.0-34.0 | margin | |
| S | - | ≤0.01 | |
| Cr | - | - | |
| Al | - | 2.0-4.0 | |
| TI | - | 0.25-1.00 | |
| Others | - | - |
| Item | Density | Melting point | Tensile Strength | Yield Strength | Elongation | HB |
| Monel K500 | 8.05 g/cm3 | 1288-1343°C | 1100 | 790 | 20% | - |
| Monel 400 | 8.83 g/cm3 | 1300-1390°C | 480 | 170 | 35% | >331 |
Application Field
Monel K500 Tubes N05500 is used in various applications due to its corrosion resistance and strength. Here are five key application fields:
Used in seawater-exposed components like propeller shafts, valves, and fasteners due to excellent resistance to saltwater corrosion.
Employed in equipment like heat exchangers, pumps, and piping systems handling acids and alkalis.
Utilized in high-strength, corrosion-resistant parts such as springs and wiring in harsh environments.
Applied in downhole equipment, valves, and instrumentation for resistance to sour gas and corrosive fluids.
Used in electrical components and heating elements for its high conductivity and durability.
Our Advantage

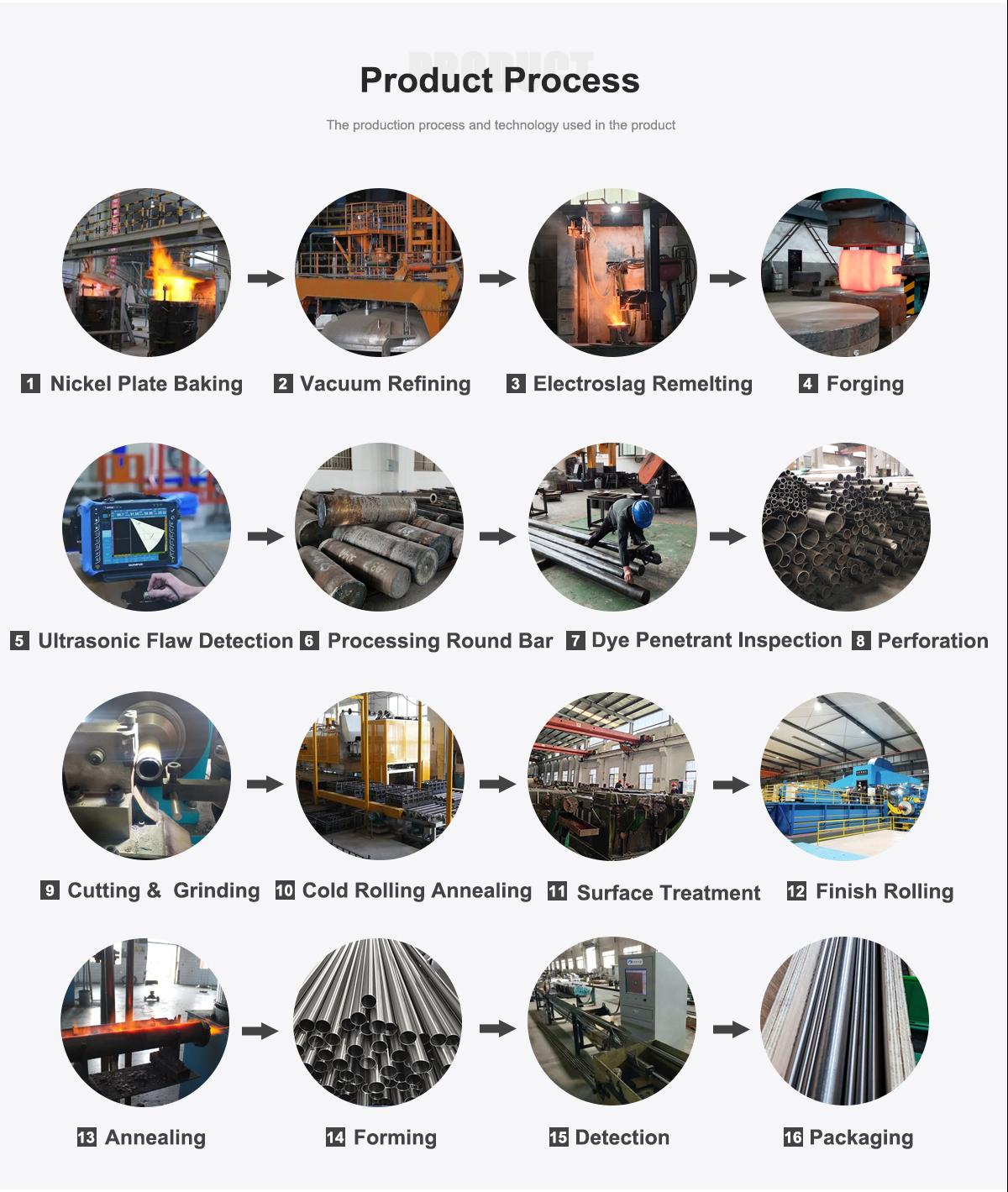

CHANGZHOU DLX ALLOY CO, LTD was established in 2002 and has got ISO 9001 International Quality Management System Certificate and SGS Certificate. Our factory is professional in researching and producing special alloy material. From melting, drawing, heat treatment, finishing and testing .We offer nickel-based, copper-based, and iron-based alloys, including super alloy, welding materials, anti-corrosion alloy, precision alloy, FeCrAl alloy, NiCr alloy, CuNi alloy, thermocouple and etc, in the form of wire, strip, ribbon, bar, tube, plate.
FAQ
When selecting a reliable source for Monel K500 tubes N05500, prioritize partners offering factory-direct supply at competitive wholesale prices. We provide custom sizes with large stock availability, ensuring quick access to high-purity Monel K500 tubing ideal for electronic, industrial, and harsh-environment applications. Benefit from fast global shipping and dependable industrial supply chains that minimize downtime.
Delivery timelines for Monel K500 tubes N05500 vary by order quantity. Small orders ship in 10-30 days, while large or custom N05500 tube orders may require up to 60 days for production and quality checks. Contact us for precise Monel K500 delivery estimates based on your specifications.
Absolutely! We specialize in OEM/ODM production for Monel K500 tubes N05500. Submit your samples, drawings, or technical specs, and our experts will customize high-strength nickel-copper alloy tubing to meet your exact requirements, ensuring compliance with ASTM B864 and other industry standards.
Yes, we gladly supply comprehensive technical data sheets and CAD drawings for Monel K500 tubes N05500. Simply specify your product type , dimensions, and applications, and we'll deliver tailored resources for your evaluation and confirmation.
You're more than welcome to tour our state-of-the-art facility! Visiting allows you to witness our Monel K500 production processes firsthand, discuss N05500 tube quality standards, and build a stronger partnership. Schedule your visit today.
Yes! We provide samples of Monel K500 tubes N05500 for testing, subject to availability and shipping terms.
