Monel 400 Round Wire offers exceptional corrosion resistance and high strength for harsh environments. Ideal for marine, chemical, and aerospace applications, it ensures reliable performance. Compliant with ASTM B164, it’s perfect for precision welding and durable components.
Monel 400, Monel K500
DLX
black/Bright
Customized
415
ISO9001
3kg
5-20 Days
Industry, Construction,Boiler Pipe
Nickel

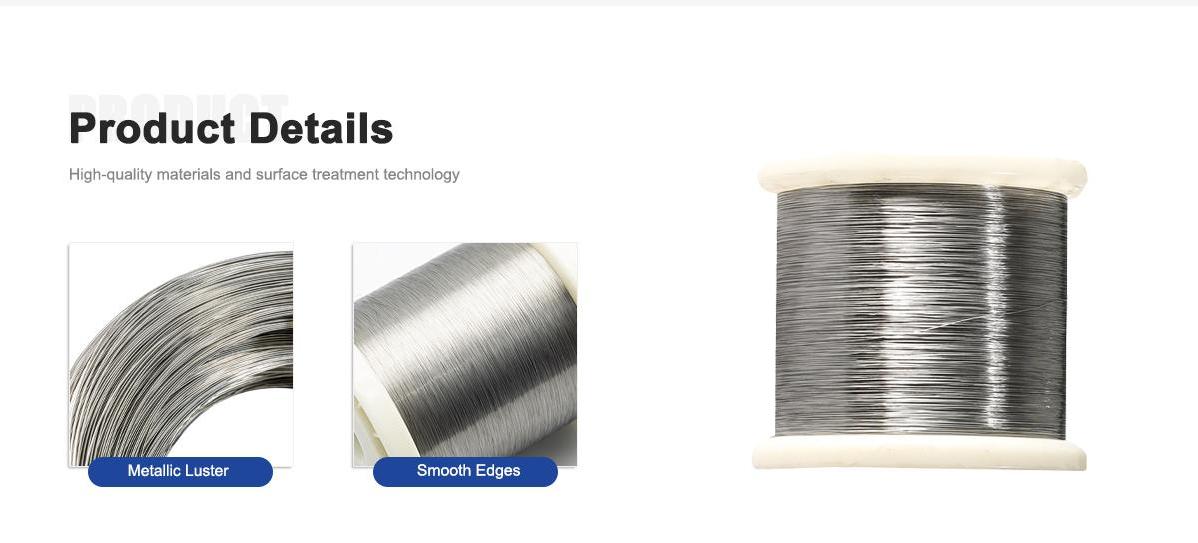

Product Description
Monel 400 Round Wire is a kind of corrosion resistant alloy with the largest dosage, the widest application and excellent comprehensive performance. Monel 400 alloy has excellent corrosion resistance in hydrofluoric acid and fluorogas medium, and also has excellent corrosion resistance to hot concentrated lye. Monel 400 Round Wire is also resistant to corrosion of neutral solution, water, seawater, atmosphere and organic compounds. An important characteristic of this alloy is that it generally does not produce stress corrosion crack and has good cutting performance.
1. Excellent Corrosion Resistance - Monel 400 round wire offers superior resistance to corrosion in various environments, including seawater, hydrochloric acid, hydrofluoric acid, sulfuric acid, and alkaline solutions, making it ideal for marine and chemical processing applications.
2. High Strength and Toughness - This nickel-copper alloy provides high tensile strength and toughness across a wide temperature range, from subzero to elevated temperatures, without requiring age-hardening treatments.
3. Good Ductility - Monel 400 round wire remains ductile even at low temperatures, maintaining its mechanical properties without becoming brittle, which is advantageous for applications in cryogenic environments.
4. Thermal Conductivity - The alloy exhibits good thermal conductivity, making it suitable for applications like heat exchangers and other thermal management systems.
5. Weldability and Formability - Monel 400 round wire is easily welded and fabricated using conventional processes, allowing for versatile use in manufacturing components like fasteners, cables, and wire mesh.
Specification
| Name | Monel 400(N04400) | Monel K500(N05500) | |
| Chemmical Composition wt. | Ni | 63.0-67.0 | 63.0-67.0 |
| Fe | ≤2.00 | ≤2.00 | |
| C | ≤0.03 | ≤0.25 | |
| Mn | ≤1.50 | ≤0.15 | |
| P | - | - | |
| Si | ≤0.50 | ≤1.00 | |
| Cu | 28.0-34.0 | margin | |
| S | - | ≤0.01 | |
| Cr | - | - | |
| Al | - | 2.0-4.0 | |
| TI | - | 0.25-1.00 | |
| Others | - | - |
| Item | Density | Melting point | Tensile Strength | Yield Strength | Elongation | HB |
| Monel K500 | 8.05 g/cm3 | 1288-1343°C | 1100 | 790 | 20% | - |
| Monel 400 | 8.83 g/cm3 | 1300-1390°C | 480 | 170 | 35% | >331 |
Application Field
Monel 400 round wire is used in various applications due to its corrosion resistance and strength. Here are five key application fields:
Used in seawater-exposed components like propeller shafts, valves, and fasteners due to excellent resistance to saltwater corrosion.
Employed in equipment like heat exchangers, pumps, and piping systems handling acids and alkalis.
Utilized in high-strength, corrosion-resistant parts such as springs and wiring in harsh environments.
Applied in downhole equipment, valves, and instrumentation for resistance to sour gas and corrosive fluids.
Used in electrical components and heating elements for its high conductivity and durability.
Our Advantage

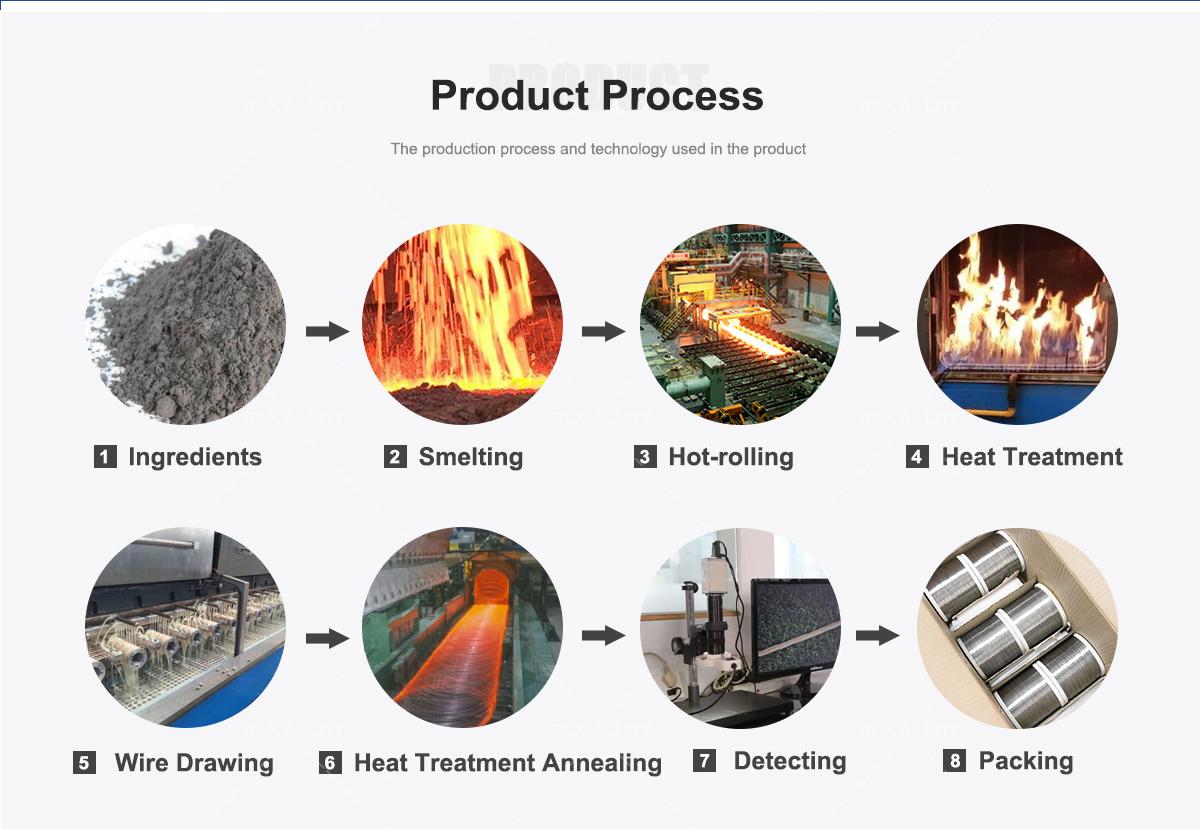

CHANGZHOU DLX ALLOY CO, LTD was established in 2002 and has got ISO 9001 International Quality Management System Certificate and SGS Certificate. Our factory is professional in researching and producing special alloy material. From melting, drawing, heat treatment, finishing and testing .We offer nickel-based, copper-based, and iron-based alloys, including super alloy, welding materials, anti-corrosion alloy, precision alloy, FeCrAl alloy, NiCr alloy, CuNi alloy, thermocouple and etc, in the form of wire, strip, ribbon, bar, tube, plate.
FAQ
Factory Direct Supply with Competitive Wholesale Prices
Custom Sizes & Large Stock Availability
Fast Global Shipping & Reliable Industrial Supply
Guaranteed High Purity for Electronic & Industrial Applications
It depends on the quantity of the order, 10-30 days for small orders. For large orders, it takes 60 days.
Yes! We accept OEM/ODM production. You can send us your samples or drawings.
With professional quality team, advanced product quality planning, strict implementation and continuous improvement, we will issue product quality inspection certificate, including chemical analysis report.
Yes, you can. Please tell us the products and applications you need, and we will send you detailed technical data and drawings for your evaluation and confirmation.
We have a professional business team who will work one-on-one to protect your product needs, and if you have any questions, he can answer them for you!
Yes, you are welcome to visit our factory. We are glad to have the opportunity to get to know each other.
We manufacture our products in Jiangsu, China and ship them from China to your country as soon as possible, which usually depends on your product requirements and quantity.
Yes, we can.
