ISO9001, ROHS
5 pcs
5-20 Days
Water/Air Heating
Flange & Tube Material:SS304 SS316 Copper Inconel / Resistance wire Material:FeCrAl & Nichrome Wire
Product Description

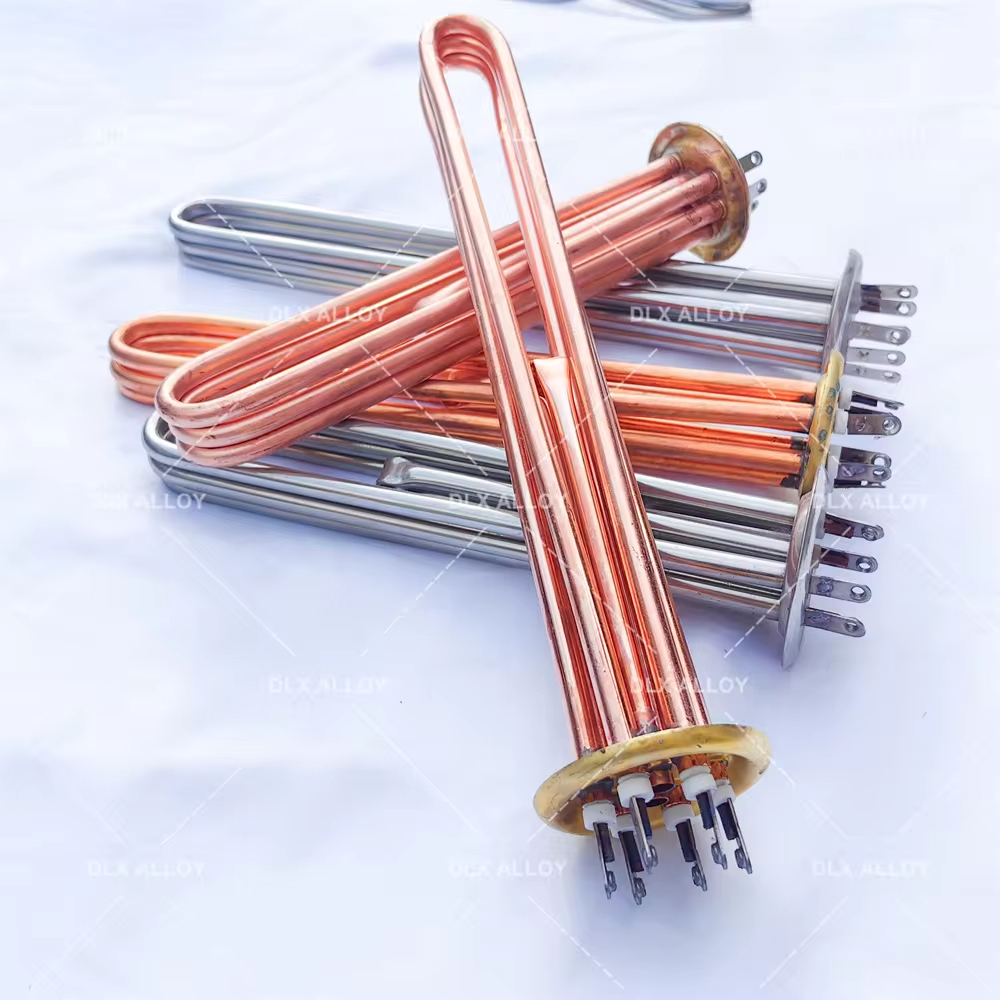

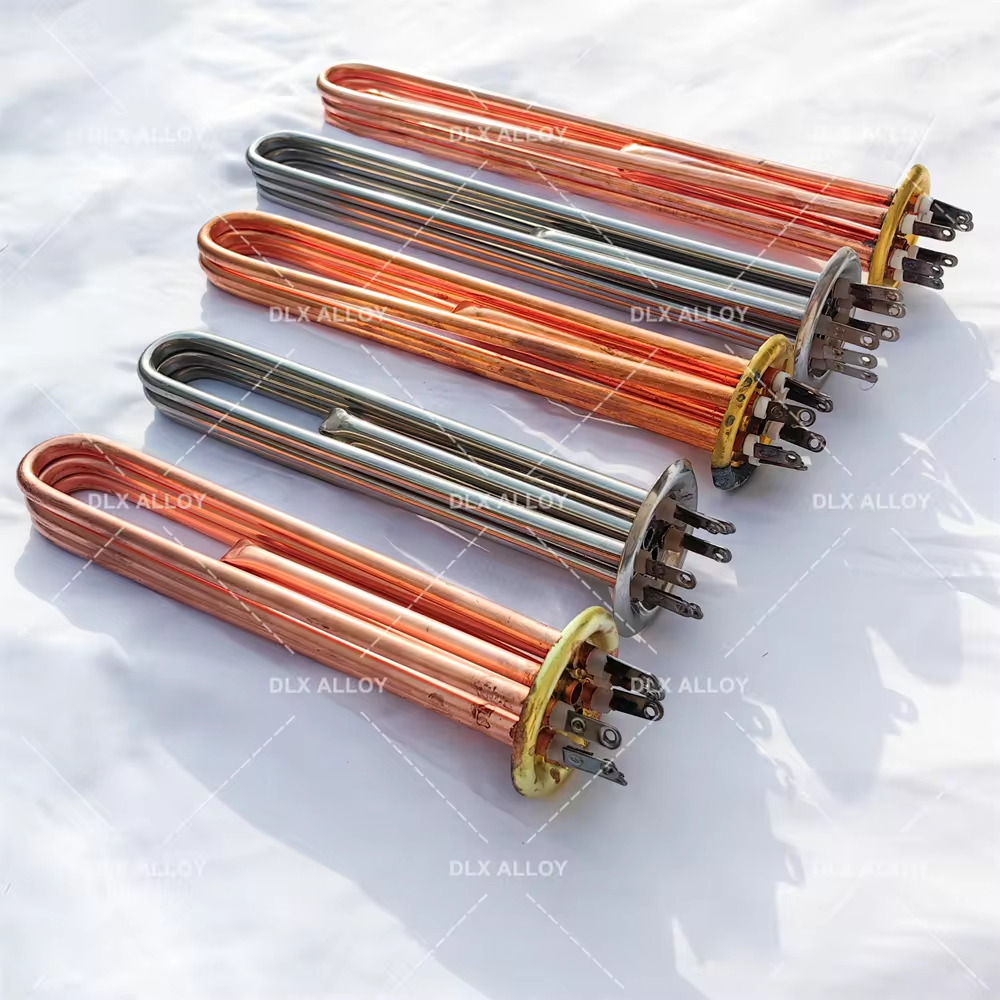

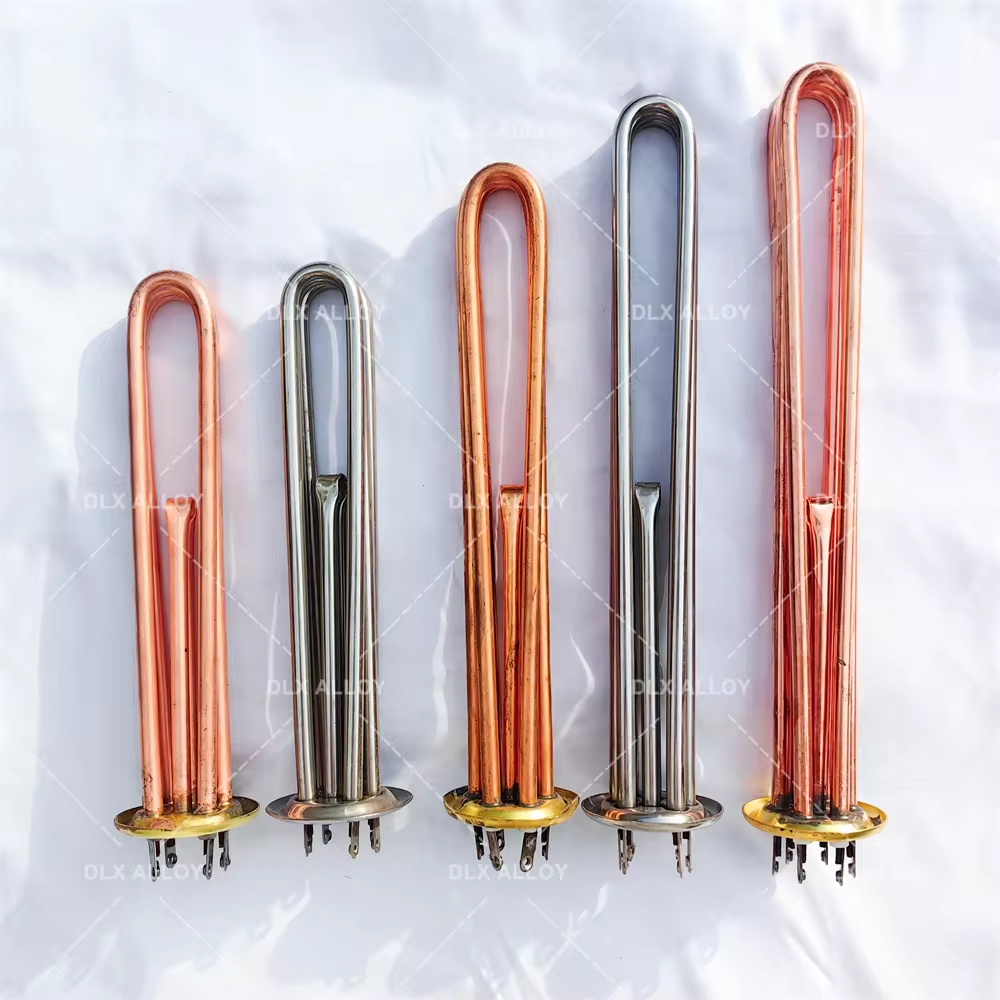

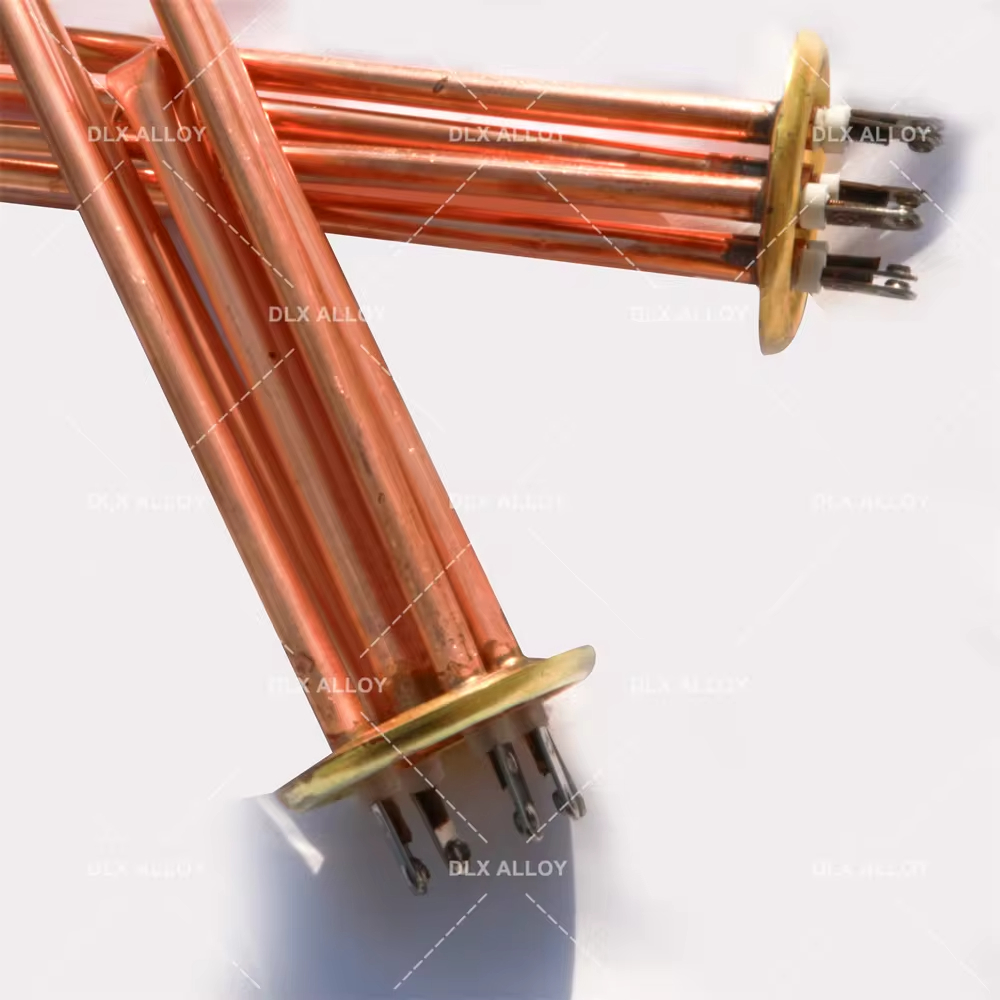

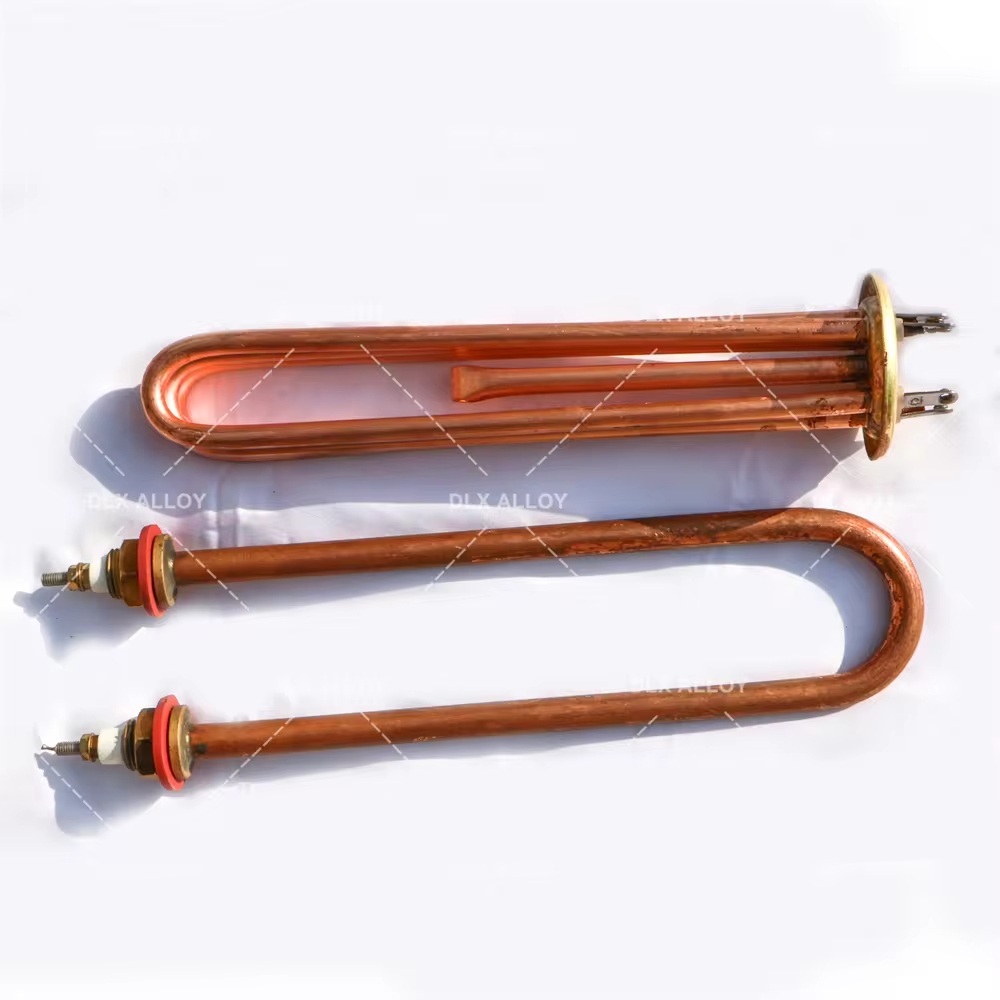

Immersion Heaters are of a variety styles for multi usage. All the tube elements are made of Nichrome heating wires, sheathed by pure stainless steel or Incoloy and Insulated by 99% purity Mgo , which gurantee long life span up to 15000 hours.

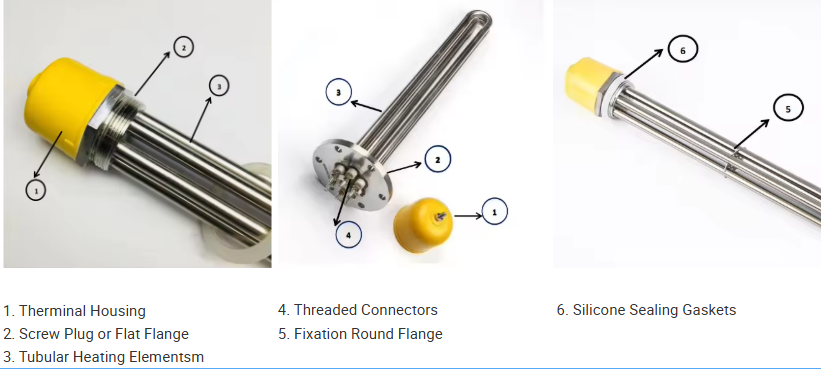

Also, the mounting terminals are of flexible choices - Hexagon Screws, Flat Flange(round or Square), with Anti-explosion Box, or with Thermostat or Thermocouple hose based on customer diverse applicance. Above all,
our factory has great capacity of designing and developing special immersion heaters to meet customer personalized needs. We never cease our steps in progress and growth with customers.

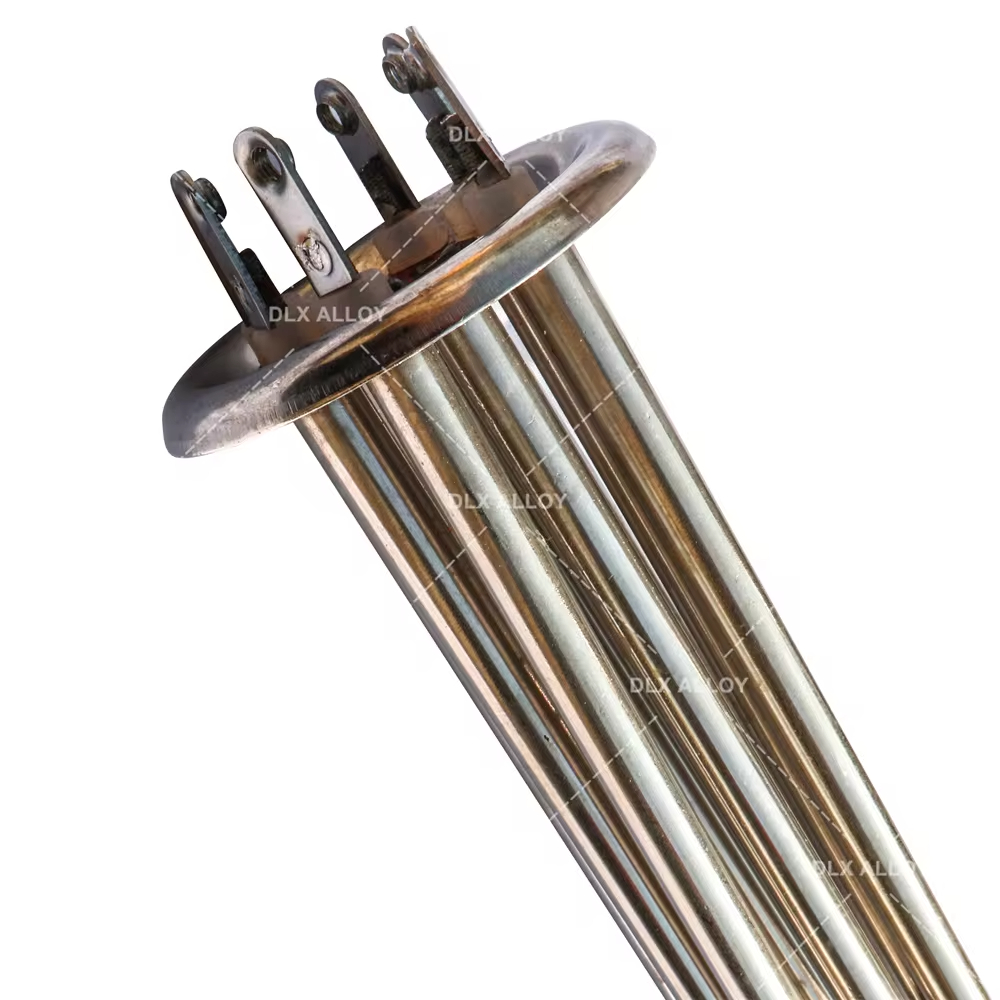

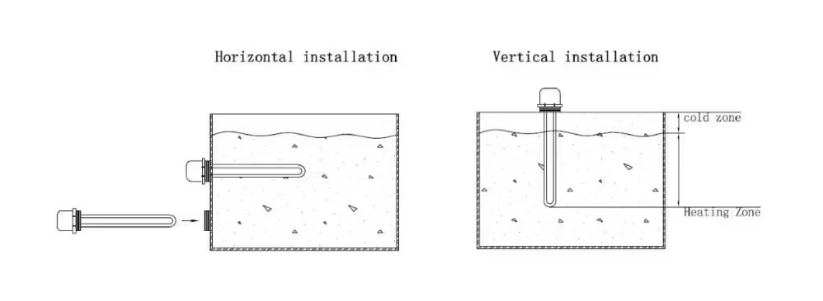

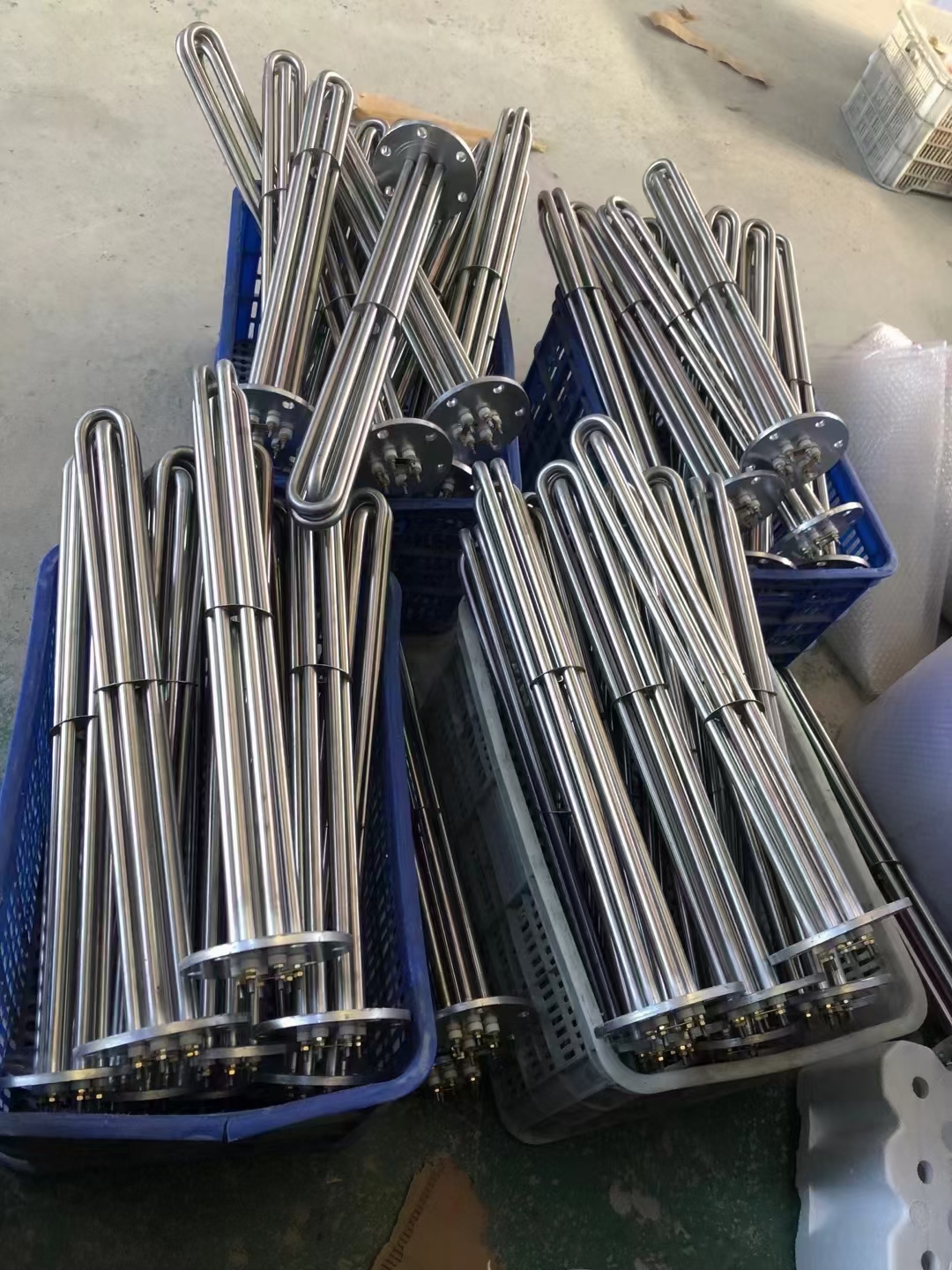

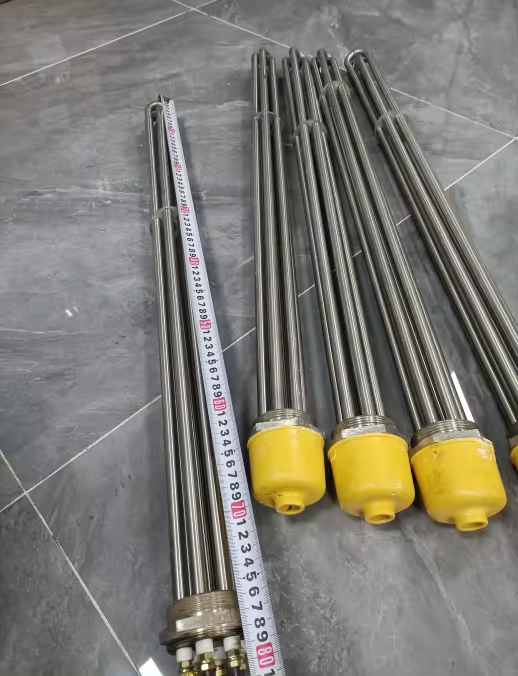

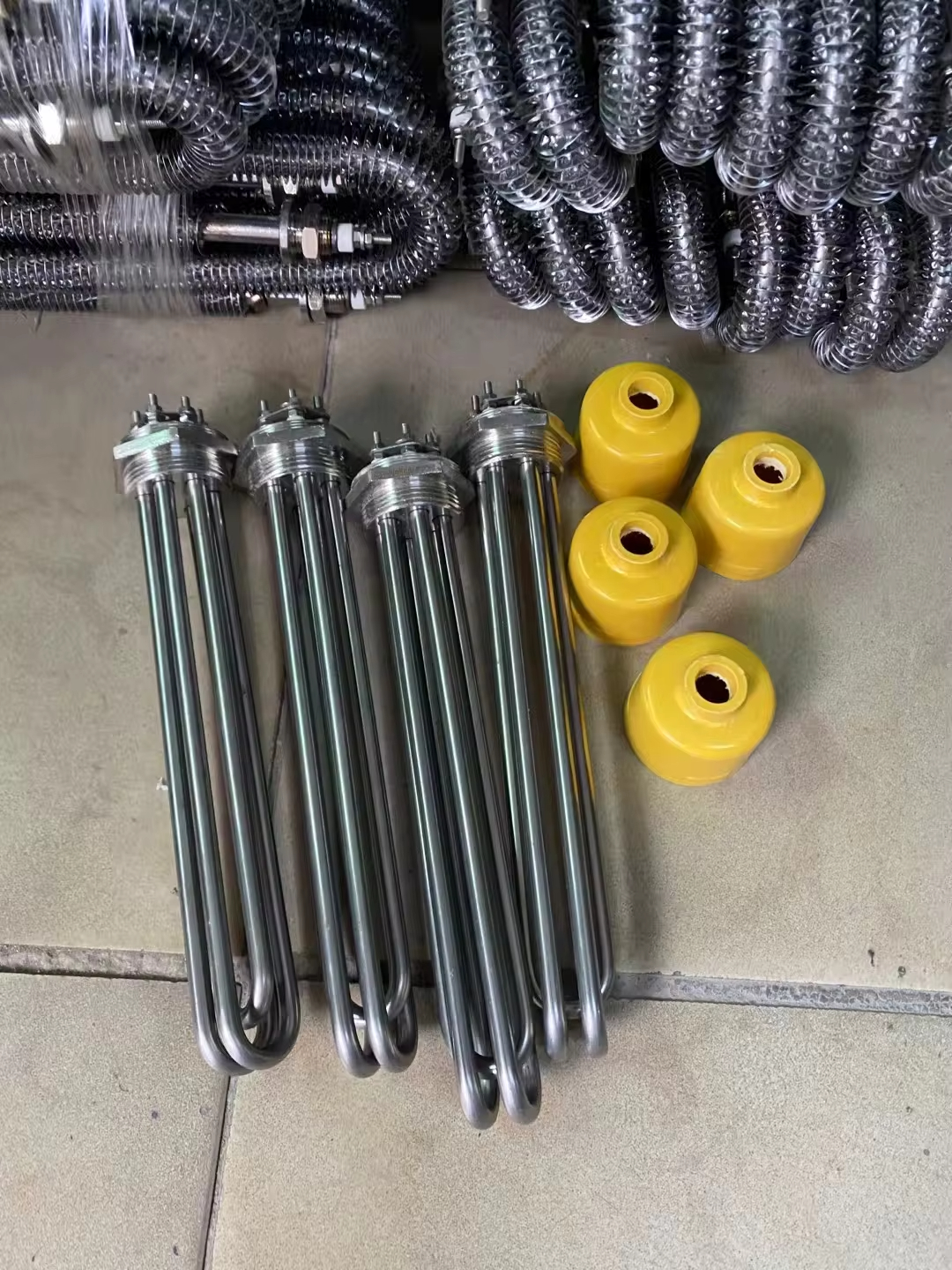

A number of heating pipes are welded or screwed to a flange to form a high-power electric heat pipe that can be disassembled as a whole. It is often used in large water tanks, boilers, heat conduction oil furnaces and other heating places In the raw material, choose SUS304 or SUS316 thickened stainless steel, high temperature resistance wire and high temperature insulation.
Designed to reduce the heating tube surface load, can be heated in water and oil.
Specification
| Technical Specification of Immersion Heater | |||
| Voltage | 110V AC up to 600V AC | ||
| Wattage | Customized | ||
| Immersion Length | 50mm-1000mm | ||
| Sheath Material | Stainless steel 304, 316L, 310S | T2 Copper | Incoloy800, 840 |
| Welded Elements QTY | 1 to 20 units or more | ||
| Bult in Thermostat | Temperature range 30°C -110°C | Thermostate suitable fo Max 250V up to 16 amps | Special for Screw plug immersion heaters |
| Bult in Thermowell | Thermowell hole size and length customized | ||
| Terminal Cover Material | Stainless steel | Nylon | Plastic |
| Screw Thread size | G / NPT / BSPP Thread 1'' 1 1/4'' 1 1/2'' 2'' etc | ||
| Round Flange size | DN80 DN100 DN120 DN150 DN200 etc | ||
Application Field
| Application | Sheath Material |
| Water, Freeze protection, Hotwater storage, Boilerandwaterheaters, Coolingtowers, Solution not corrosive to copper, Food equipment | Stainless Steel304 316L or Copper |
| Oil, Heavy and non-circulated oils, Solution water, Corrosive solutions, Steam super heating | Stainless Steel 316L 310s or Incoloy |
| Light oils , In forced oil circulation loops | Stainless Steel304 316L |
| Light oils , In forced oil circulation loops | Stainless Steel 316L 310s or Incoloy |
| Process water, Soap and detergent solutions, Soluble cutting oils, Demineralized or deionized water | Stainless Steel304 316L |
| Fluid heat transfer media, Tar, High to low viscosity petroleum oils, Asphalt, Wax, Paraffin, Degreasing solvents, Alcohol, Molten salt, Solutions not corrosive to steel | Stainless Steel304 316L |
DLX Advantage
CHANGZHOU DLX ALLOY CO, LTD was established in 2002 and has got ISO9001 International Quality Management System Certificate and SGS Certificate. Our factory is professional in researching and producing special alloy material. From melting, drawing, heat treatment, finishing and testing .We offer nickel-based, copper-based, and iron-based alloys, including super alloy, welding materials, anti-corrosion alloy, precision alloy, FeCrAl alloy, NiCr alloy, CuNi alloy, thermocouple and etc, in the form of wire, strip, ribbon, bar, tube, plate.
1.Market Leader - Top 5 in China's nonferrous metal industry
2.Flexible products - Thousands of product specifications,Meet multiple needs of buyers
3.Low MOQ - Can customize samples
4.Short production lead time，fast delivery of whole cabinet
5.Professional inspection equipment - Before delivery, we will use spectrometers, tensile testers and other professional equipment to conduct a comprehensive inspection of the products to ensure that the goods are qualified for acceptance
6.Professional business team - Quickly responds to customer inquiries,24-hour professional quotation online The salesperson will follow the customer's requirements for the use of the product,Professionally recommend more appropriate performance and price products to customers
7.Intact packaging - Packaging according to customer needs.You can customize wooden boxes to ensure that the goods arrive at the destination in good condition
8.Various payment methods - Facilitate customer payment
9.Get good reviews from customers - Old customers have long-term cooperation,The longest is more than 7 years
10.Received various awards - Google is very recognized by us,They give us awards every year
FAQ
Our immersion heaters offer factory-direct supply at competitive wholesale prices, with custom sizes, large stock availability, fast global shipping, and guaranteed high purity for electronic and industrial applications.
Delivery time depends on order quantity: 10-30 days for small orders and up to 60 days for large ones, ensuring reliable supply worldwide.
Yes, we fully support OEM/ODM production—simply send your samples or drawings to get started on customized immersion heaters.
We accept flexible payment options including T/T, L/C, D/A, D/P, Western Union, MoneyGram, and PayPal for seamless immersion heater purchases.
Absolutely, you're welcome to visit our factory—we'd love the chance to connect and discuss your immersion heater needs in person.
Our immersion heaters are manufactured in Jiangsu, China, with shipments sent promptly from China based on your order requirements and quantity.
Yes, we can provide immersion heater samples to help you evaluate quality before placing a full order.
