Product Description

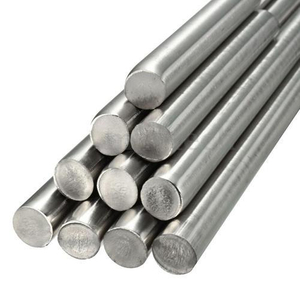

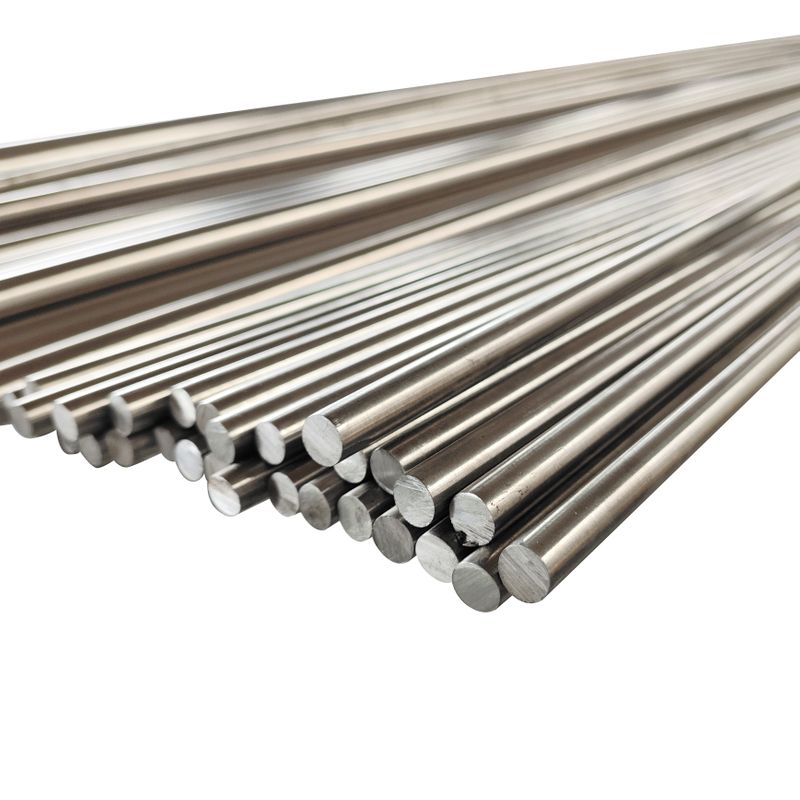

Kovar Alloy 4j29 Bar is a controlled-expansion iron-nickel-cobalt alloy renowned for its exceptional thermal expansion compatibility with hard glass and ceramics. 4J29 maintains near-zero dimensional variance across extreme temperature fluctuations, establishing itself as the gold standard for hermetic sealing in critical applications. This alloy bar also exhibits outstanding resistance to thermal stress cracking and corrosion in vacuum environments.
Kovar Alloy 4j29 Bar is particularly valued for its unique thermal expansion synchrony and impermeable sealing capabilities. A defining characteristic is its engineered crystallographic structure that remains geometrically stable from cryogenic to elevated temperatures, enabling the fabrication of precision components requiring micron-level tolerance retention during thermal cycling.
Maintains near-zero differential expansion with hard glass/ceramics across -60°C to +450°C, eliminating interfacial stress-induced sealing failures.
Creates impermeable metal-to-nonmetal joints sustaining helium leak rates <10⁻⁹ Pa·m³/sec under vacuum/high pressure, ensuring lifetime sealing reliability.
Forms a dense, stable chromia (Cr₂O₃) protective layer at high temperatures, resisting oxidation in air or oxygen-containing environments.
Zero outgassing in critical vacuum environments.
Resists weak acids, alkaline vapors, and electronic cleaning agents.
Precisely tuned Fe-Ni-Co atomic ratio stabilizes crystal structure below/above Curie point (~430°C), enabling micron-level dimensional reproducibility during thermal cycling.
Optimized annealed microstructure delivers unified mechanical strength and ductility, supporting complex machining while ensuring thin-wall seal rigidity.
Forms chemical-bonded interfaces with borosilicate glass for hermetic seals.
Compatible with TIG/electron beam welding for hybrid sealing structures.
Specification
| Kovar Alloy 4j29 Bar Chemical Composition | ||
| Elements | 4J29 | 4J36 |
| Carbon (C) | 0.03 | 0.05 |
| Sulfur (S) | 0.02 | 0.02 |
| Phosphorus (P) | 0.02 | 0.02 |
| Manganese (Mn) | ≤0.50 | 0.20-0.60 |
| Silicon (Si) | ≤0.30 | ≤0.30 |
| Nickel (Ni) | 28.5-29.5 | 35.0-37.0 |
| Chromium (Cr) | - | - |
| Cobalt (Co) | 16.8-17.8 | - |
| Iron (Fe) | Rest | Rest |
| Other Elements | - | - |
| Kovar Alloy 4j29 Bar Mechanical Properties | ||
| Alloy Grade | 4J36 Invar Alloy | 4J29 Kovar Alloy |
| Density (g/cm³) | 8.1 | 8.2 |
| Tensile Strength (MPa) | 500-600 | 600-700 |
| Yield Strength (MPa) | 250-350 | 300-400 |
| Hardness (HV) | 150-200 | 200-250 |
Application Field
Leveraging unique thermal expansion properties and hermetic reliability, Kovar Alloy 4j29 Bars are critical in:
Microwave/laser device housings: Glass-to-metal seals for TWTs, magnetrons
Vacuum relays/switches: Ceramic-metal brazed contacts
Optoelectronic sensors: Hermetic packaging for IR detector windows
Satellite sensor modules: Pressure/temperature probes in thermal cycling
Aero-engine igniters: Ceramic-insulated sealing assemblies
Space-grade connectors: Vacuum feedthrough RF connectors
Lithography systems: Thermal-compensation substrates for wafer stages
CVD chambers: Process gas seals at elevated temperatures
Ion implanters: Vacuum feedthroughs for precision electrodes
Fuel cells: Sealing frames for PEM membrane edges
Concentrated solar: Glass-metal transitions for molten salt tubes
Fusion reactors: First-wall diagnostic probe seals
Particle accelerators: UHV beamline sealing flanges
Synchrotrons: Thermal-stress compensators for X-ray windows
Cryogenic systems: Multi-layer insulation seals for LHe dewars
