Product Description

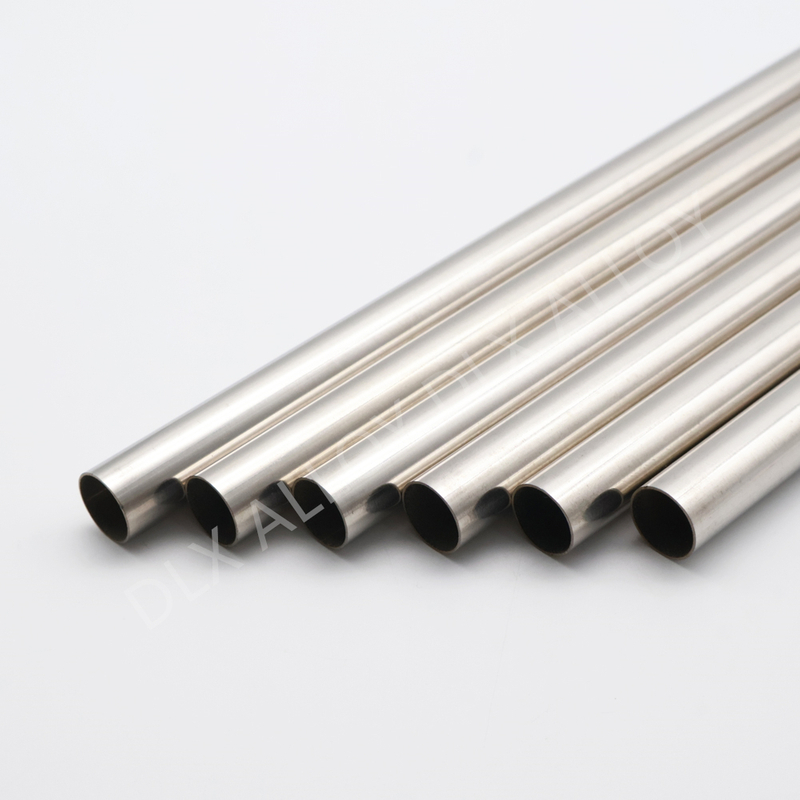

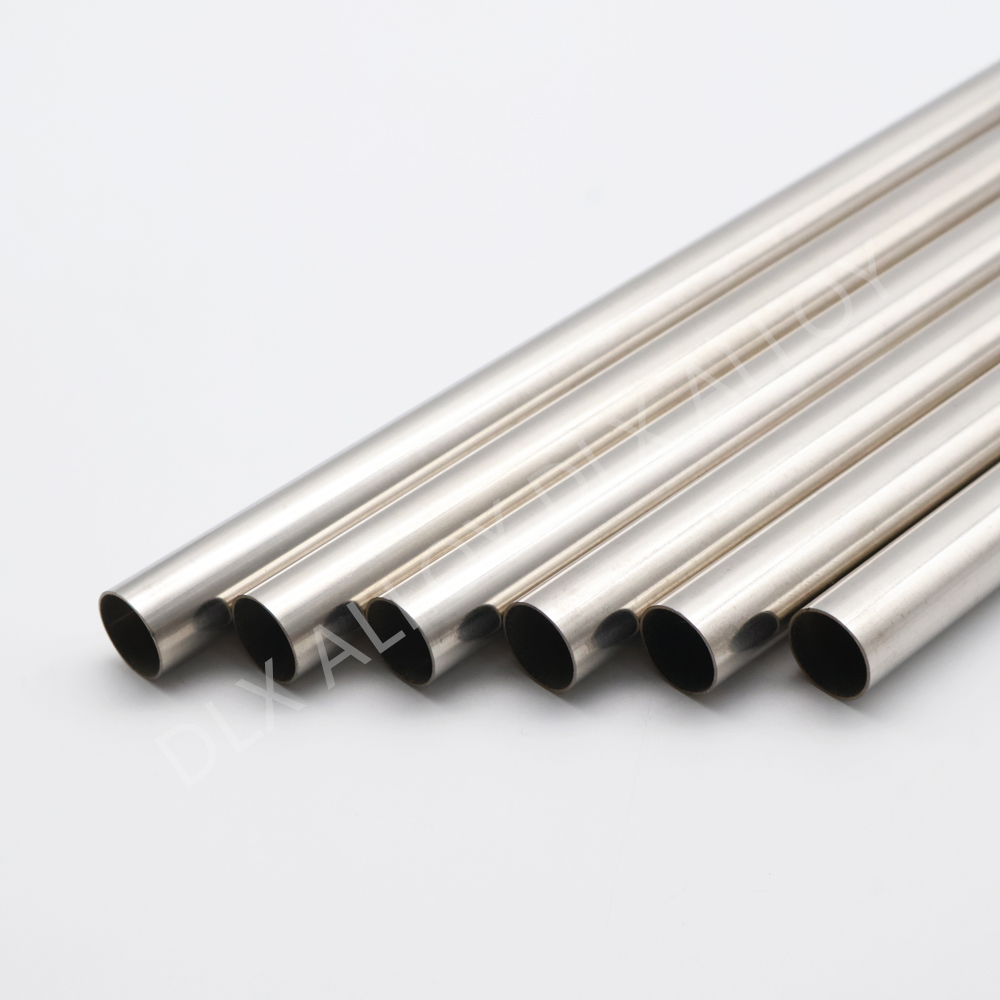

Gr2 Titanium Tubes are seamless or welded tubes made from Grade 2 titanium, a commercially pure titanium alloy known for its excellent corrosion resistance, moderate strength, and formability. These tubes are widely used in heat exchangers, condensers, and other industrial systems due to their ability to withstand harsh environments, including seawater, acids, and alkalis.
Our titanium tubes are manufactured with precision, offering consistent quality and performance. With outer diameters ranging from 3mm to 300mm and wall thicknesses from 0.3mm to 20mm, they are customizable to meet specific project requirements.
Provides superior tensile strength up to 900 MPa, ideal for structural components in high-stress environments.
Resists pitting, crevice corrosion, and stress corrosion cracking, even in aggressive media like seawater and acids—key for long-lasting Titanium Tubes.
Compliant with ASTM F67 and F136 standards, making these Corrosion Resistant Titanium Tubes safe for medical implants and devices.
Endures cyclic loading without failure, ensuring durability in dynamic applications like heat exchangers and piping systems.
Specification
| Name | Titanium Tube &Pipe |
| Items | Pure Titanium,Titanium alloy |
| Standard | ASTM B338/337 |
| Material Grade | GR.1,GR.2 |
| Tolerance | a) Outer Diameter: +/- 0.01mm |
| b) Thickness: +/- 0.01mm | |
| c) Length: +/- 0.1mm | |
| Surface | Pickling, annealing, polishing, bright. |
| Processing Service | Bending, Welding, Decoiling, Cutting, Punching |
| Technique | Seamless,Weld |
| ASTM B265 | CHINA BT3620.1 | JAPANJISH4600 | Elementary Ratios(wt%) | MechanicaCapacity | |||||||
| N,max | C,max | H,max | Fe,max | O,max | Others | TensileStrengthMpa,min | Extend rate%,min | ||||
| PureTitanium | Gr.1 | TA1 | Class 1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | - | 240 | 24 |
| Gr.2 | TA2 | Class 2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | - | 345 | 20 | |
| Gr.3 | TA3 | Class 3 | 0.05 | 0.08 | 0.015 | 0.30 | 0.35 | - | 450 | 18 | |
| Gr.4 | TA4 | Class 4 | 0.05 | 0.08 | 0.015 | 0.50 | 0.40 | - | 550 | 15 | |
| TitaniumAlloy | Gr.5 | TC4 | Class 60 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | A1:5.5-6.75 V:3.5-4.5 | 895 | 10 |
| Gr.7 | TA9 | Class 12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | Pd: 0.12-0.25 | 345 | 20 | |
| Gr.9 | TC2 | Class 61 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | A1:2.5-3.5 V:2.0-3.0 | 620 | 15 | |
| Gr.11 | TCA-1 | Class 11 | 0.03 | 0.08 | 0.015 | 0.20 | 0.20 | Pd: 0.12-0.25 | 240 | 24 | |
| Gr.23 | TC4 ELI | Class60E | 0.03 | 0.08 | 0.015 | 0.25 | 0.25 | A1:5.5-6.75 V:3.5-4.5 | 828 | 10 | |
Application Field
With their unparalleled high strength, corrosion resistance, and lightweight properties, Gr2 Titanium Tubes are indispensable in various sectors:
Utilized in aircraft tubing, hydraulic systems, and engine components for High Strength Titanium Tubes that withstand extreme temperatures and pressures
Employed in heat exchangers, reactors, and piping where Corrosion Resistant Titanium Tubes prevent degradation from corrosive chemicals and acids
Ideal for seawater desalination plants and shipbuilding due to the superior corrosion resistance of Titanium Tubes in saline environments
Applied in surgical implants, catheters, and prosthetics, leveraging the biocompatibility of these High Strength & Corrosion Resistant Titanium Tubes
Used in condensers and desalination equipment for durable, lightweight Titanium Alloy Tubes that ensure efficient heat transfer and longevity.
DLX Advantage
CHANGZHOU DLX ALLOY CO, LTD was established in 2002 and has got ISO9001 International Quality Management System Certificate and SGS Certificate. Our factory is professional in researching and producing special alloy material. From melting, drawing, heat treatment, finishing and testing .We offer nickel-based, copper-based, and iron-based alloys, including super alloy, welding materials, anti-corrosion alloy, precision alloy, FeCrAl alloy, NiCr alloy, CuNi alloy, thermocouple and etc, in the form of wire, strip, ribbon, bar, tube, plate.
1.Market Leader - Top 5 in China's nonferrous metal industry, specializing in Premium Titanium Tubes.
2.Flexible products - Thousands of specifications for Titanium Tubes, meeting diverse needs for high strength and corrosion resistant applications.
3.Low MOQ - Customize samples of Titanium Alloy Tubes starting from small quantities.
4.Short production lead time，fast delivery of whole cabinet
5.Professional inspection equipment - Before delivery, we will use spectrometers, tensile testers and other professional equipment to conduct a comprehensive inspection of the products to ensure that the goods are qualified for acceptance
6.Professional business team - Quickly responds to customer inquiries,24-hour professional quotation online The salesperson will follow the customer's requirements for the use of the product,Professionally recommend more appropriate performance and price products to customers
7.Intact packaging - Packaging according to customer needs.You can customize wooden boxes to ensure that the goods arrive at the destination in good condition
8.Various payment methods - Facilitate customer payment
9.Get good reviews from customers - Old customers have long-term cooperation,The longest is more than 7 years
10.Received various awards - Google is very recognized by us,They give us awards every year
FAQ
A: Grade 2 commercial pure titanium offers the best combination of corrosion resistance in seawater, chlorine, and acidic environments, superior strength-to-weight ratio, and virtually unlimited service life. Unlike stainless steel and Cu-Ni, Gr2 titanium is completely immune to pitting, crevice corrosion, and stress corrosion cracking in marine and chemical applications.
A: Yes. ASTM B338 Gr2 titanium tubes are the industry-standard material for seawater desalination plants, offshore oil & gas platforms, and shipbuilding worldwide due to their proven 30+ year corrosion-free performance in saline environments.
A: Absolutely. Major power generation companies globally specify Grade 2 titanium condenser and heat exchanger tubes because of their excellent resistance to erosion-corrosion, low fouling tendency, and outstanding thermal conductivity in steam turbine applications.
A: Yes. UNS R50400 (Gr2) is the most widely used medical-grade titanium for surgical implants, dental instruments, and medical device components due to its proven biocompatibility, osseointegration properties, and non-magnetic characteristics.
A: All our seamless and welded Gr2 titanium tubes are 100% manufactured in our own mills located in Jiangsu Changzhou, China – one of the world’s largest and most advanced titanium production bases.
A: Yes, we keep large stock and produce both ASTM B338 seamless and ASME SB338 welded Grade 2 titanium tubes to meet different pressure, cost, and delivery requirements of global customers.
