Product Description

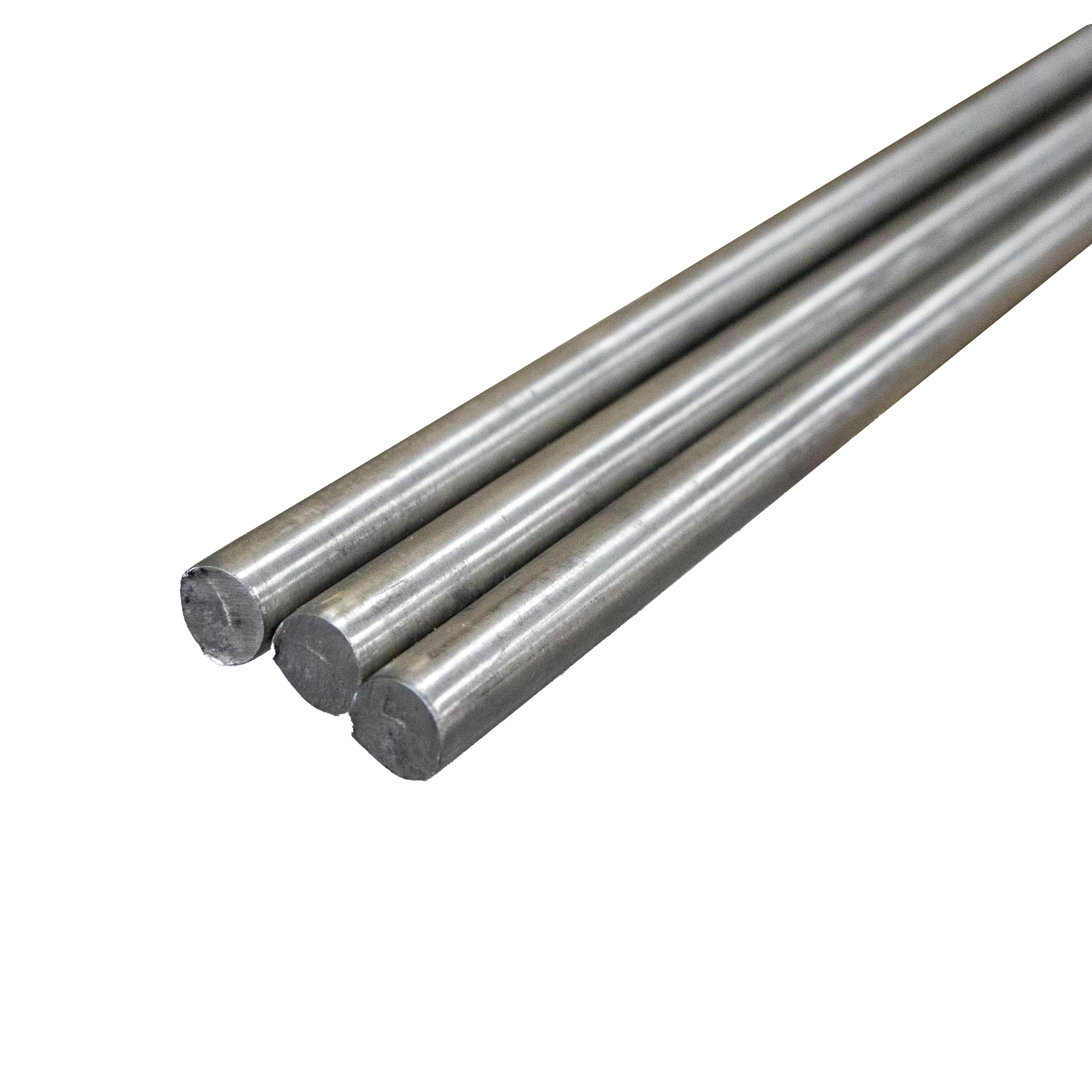

GR5 Titanium Rods, composed primarily of 90% titanium with 6% aluminum and 4% vanadium, belong to the alpha-beta titanium alloy family. This composition grants GR5 Titanium Rods outstanding mechanical properties, including high tensile strength up to 950 MPa and excellent fatigue resistance. The "workhorse" of titanium alloys, GR5 Titanium Rods are widely used in chemical processing due to their superior resistance to corrosive media like acids, chlorides, and seawater.
Our Wholesale Custom GR5 Titanium Rods are manufactured with high purity levels, available in round, square, hex, and flat profiles. These GR5 Titanium Rods ensure biocompatibility and thermal stability up to 400°C, making them indispensable for harsh chemical environments.
Provides superior tensile strength up to 900 MPa, ideal for structural components in high-stress environments.
Resists pitting, crevice corrosion, and stress corrosion cracking, even in aggressive media like seawater and acids—key for long-lasting Titanium Rods.
Compliant with ASTM F67 and F136 standards, making these Corrosion Resistant Titanium Rods safe for medical implants and devices.
Endures cyclic loading without failure, ensuring durability in dynamic applications like heat exchangers and piping systems.
Specification
| item | value |
| Place of Origin | China |
| Product name | titanium rod |
| Application | mechanical |
| Shape | Round |
| Technique | Forged |
| Grade | gr1 gr2 gr5 gr12 gr23 |
| Processing Service | Welding, Cutting |
| Material | titanium |
| Surface | Bright |
| ASTM B265 | CHINA BT3620.1 | JAPANJISH4600 | Elementary Ratios(wt%) | MechanicaCapacity | |||||||
| N,max | C,max | H,max | Fe,max | O,max | Others | TensileStrengthMpa,min | Extend rate%,min | ||||
| PureTitanium | Gr.1 | TA1 | Class 1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | - | 240 | 24 |
| Gr.2 | TA2 | Class 2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | - | 345 | 20 | |
| Gr.3 | TA3 | Class 3 | 0.05 | 0.08 | 0.015 | 0.30 | 0.35 | - | 450 | 18 | |
| Gr.4 | TA4 | Class 4 | 0.05 | 0.08 | 0.015 | 0.50 | 0.40 | - | 550 | 15 | |
| TitaniumAlloy | Gr.5 | TC4 | Class 60 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | A1:5.5-6.75 V:3.5-4.5 | 895 | 10 |
| Gr.7 | TA9 | Class 12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | Pd: 0.12-0.25 | 345 | 20 | |
| Gr.9 | TC2 | Class 61 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | A1:2.5-3.5 V:2.0-3.0 | 620 | 15 | |
| Gr.11 | TCA-1 | Class 11 | 0.03 | 0.08 | 0.015 | 0.20 | 0.20 | Pd: 0.12-0.25 | 240 | 24 | |
| Gr.23 | TC4 ELI | Class60E | 0.03 | 0.08 | 0.015 | 0.25 | 0.25 | A1:5.5-6.75 V:3.5-4.5 | 828 | 10 | |
Application Field
Capitalizing on their lightweight design, biocompatibility, and resilience in extreme environments, GR5 Titanium Rods are indispensable in:
Titanium rods for aerospace: Used in engine mounts, landing gear, and airframes for their high strength titanium rods properties and fatigue resistance.
Corrosion resistant titanium rods in propeller shafts and hull fittings, enduring saltwater without degradation.
Titanium rods for medical use: Essential for spinal rods, hip replacements, and dental implants, leveraging biocompatibility and corrosion resistant titanium rods features.
High-performance components like exhaust systems and bicycle frames, benefiting from the strength-to-weight ratio of high strength titanium rods.
DLX Advantage
CHANGZHOU DLX ALLOY CO, LTD was established in 2002 and has got ISO9001 International Quality Management System Certificate and SGS Certificate. Our factory is professional in researching and producing special alloy material. From melting, drawing, heat treatment, finishing and testing .We offer nickel-based, copper-based, and iron-based alloys, including super alloy, welding materials, anti-corrosion alloy, precision alloy, FeCrAl alloy, NiCr alloy, CuNi alloy, thermocouple and etc, in the form of wire, strip, ribbon, bar, Rod, plate.
1.Market Leader - Top 5 in China's nonferrous metal industry, specializing in GR5 Titanium Rods.
2.Flexible products - Thousands of specifications for Titanium Rods, meeting diverse needs for high strength and corrosion resistant applications.
3.Low MOQ - Customize samples of GR5 Titanium Rods starting from small quantities.
4.Short production lead time，fast delivery of whole cabinet
5.Professional inspection equipment - Before delivery, we will use spectrometers, tensile testers and other professional equipment to conduct a comprehensive inspection of the products to ensure that the goods are qualified for acceptance
6.Professional business team - Quickly responds to customer inquiries,24-hour professional quotation online The salesperson will follow the customer's requirements for the use of the product,Professionally recommend more appropriate performance and price products to customers
7.Intact packaging - Packaging according to customer needs.You can customize wooden boxes to ensure that the goods arrive at the destination in good condition
8.Various payment methods - Facilitate customer payment
9.Get good reviews from customers - Old customers have long-term cooperation,The longest is more than 7 years
10.Received various awards - Google is very recognized by us,They give us awards every year
FAQ
A: GR5 titanium rod is also widely known as Ti-6Al-4V, TC4, or Grade 5 titanium alloy round bar. It is the most popular aerospace and medical grade titanium alloy produced in Baoji, China Titanium Valley.
A: China accounts for over 60% of global titanium alloy production. Factories here offer direct mill prices, complete ASTM B348 / AMS 4928 certification, and faster lead times than Europe and USA suppliers.
A: Yes, Ti-6Al-4V (GR5) is the standard workhorse material for aircraft structural parts, engine components, and high-performance racing parts due to its outstanding strength-to-weight ratio and high-temperature performance.
A: Absolutely. Medical-grade GR5 ELI (Extra Low Interstitial) titanium rods are widely used for orthopedic implants, bone screws, spinal systems, and dental implants because of excellent biocompatibility and corrosion resistance.
A: Yes, Grade 5 titanium alloy exhibits exceptional corrosion resistance in marine, offshore platforms, chemical processing, and desalination equipment – far superior to stainless steel and nickel alloys.
