3J01、3J21、3J22、3J40、3J53、S3J47
DLX
ISO9001
5kg
Precision Sensing、Medical、Aerospace
Product Description

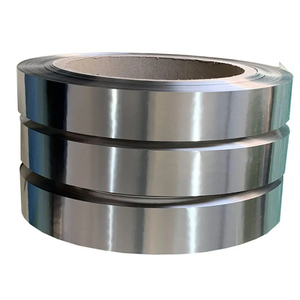

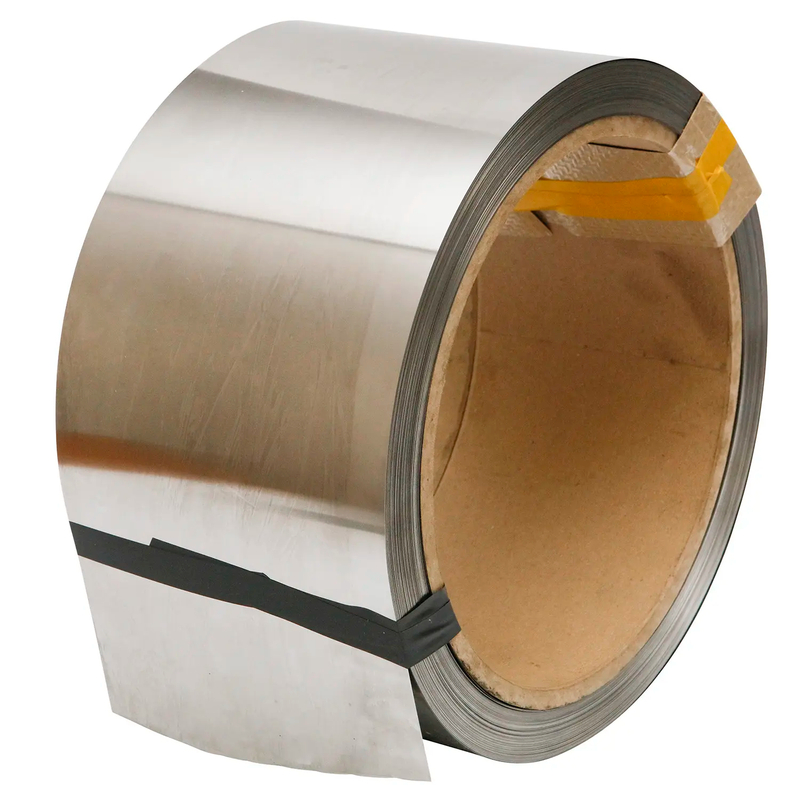

3J53 Elastic Alloy Strips are premium functional materials engineered through Vacuum Induction Melting (VIM) with precise ratios of nickel, cobalt, beryllium, chromium, and other elements. 3J53 Elastic Alloy Strips deliver an ultra-high elastic limit (≥1600 MPa), near-zero hysteresis loss (<0.1% energy dissipation), superior stress relaxation resistance (<0.05% deformation after 10,000 hours at 200℃), and stable temperature performance (≤5% elastic modulus variation from -50℃ to 400℃). Designed for extreme environments, they exhibit exceptional high-cycle fatigue resistance (>10⁷ cycles) and biocompatibility compliant with ISO 5832 standards.
These properties make them ideal for critical applications including strain-sensitive elements in precision sensors, minimally invasive medical implants (such as heart valve stents and orthopedic devices), and aerospace actuators (engine valves and satellite mechanisms). Supported by ISO 13485 (Medical) and AS9100 (Aerospace) certifications, elastic alloys guarantee zero-failure performance in demanding operational conditions across healthcare, aerospace, and advanced instrumentation sectors.
Elastic strain limit up to 1.5%~2.0% (vs. <0.5% for SS), withstands 10⁷ load cycles without permanent deformation (ASTM E466).
Temperature coefficient |αᴇ| ≤ 10 ppm/℃ (-50~150℃), e.g., Ni-Span C® 902 alloy.
Dynamic loss angle tanδ < 0.001 (1kHz), frequency stability ±0.001% (resonator applications).
Stress retention >97% after 1000h (70%σ₀.₂, 150℃ | ASTM E328).
Passivated alloys pass 2000h salt spray (ISO 9227 NSS), e.g., Co40NiCrMo.
Relative permeability μʀ ≤ 1.002 (e.g., Ni36CrTiAl), compliant with ASTM A342 non-magnetic standard.
Specification
| 3j53 Constant Elastic Alloy Strips of Chemical composition% | ||||||
| Elements/Properties | 3J01 | 3J21 | 3J22 | 3J40 | 3J53 | S3J47 |
| C | ≤0.05 | ≤0.10 | ≤0.08 | ≤0.05 | ≤0.05 | ≤0.08 |
| Ni | 34.0-36.0 | 19.0-21.0 | 14.0-16.0 | 41.0-43.0 | 41.5-43.0 | 14.0-16.0 |
| Cr | 11.5-13.0 | 18.0-20.0 | 18.0-20.0 | 5.20-5.80 | 5.2-5.8 | 18.0-20.0 |
| Co | - | 余量 | 余量 | - | - | 余量 |
| Ti | 2.70-3.20 | - | - | 2.10-2.50 | 2.3-2.7 | - |
| Al | 1.00-1.30 | - | - | 0.50-0.80 | 0.5-0.8 | - |
| Mo | - | 6.0-8.0 | 6.0-8.0 | - | - | 6.0-8.0 |
| Fe | 余量 | ≤3.0 | ≤3.0 | 余量 | 余量 | ≤3.0 |
| Mn | ≤0.80 | ≤1.0 | ≤1.0 | ≤0.80 | ≤0.80 | ≤1.0 |
| Si | ≤0.80 | ≤0.60 | ≤0.60 | ≤0.80 | ≤0.80 | ≤0.60 |
| Elastic Limit (MPa) | ≥980 | ≥1500 | ≥1600 | ≥850 | ≥1000 | ≥1700 |
| Hysteresis Loss (%) | ≤0.15 | ≤0.08 | ≤0.05 | ≤0.10 | ≤0.08 | ≤0.03 |
| Operating Temperature Range (°C) | -60~250 | -50~400 | -50~450 | -50~150 | -60~200 | -50~500 |
Application Field
Due to their unique combination of properties, 3j53 Constant Elastic Alloy Strips are widely used in the following demanding applications:
Pressure sensor diaphragms, optical encoder springs
Pacemaker lead wires, minimally invasive surgical springs
Satellite antenna deployment mechanisms, fuel valve shims
DLX Advantage
CHANGZHOU DLX ALLOY CO, LTD was established in 2002 and has got ISO9001 International Quality Management System Certificate and SGS Certificate. Our factory is professional in researching and producing special alloy material. From melting, drawing, heat treatment, finishing and testing .We offer nickel-based, copper-based, and iron-based alloys, including super alloy, welding materials, anti-corrosion alloy, precision alloy, FeCrAl alloy, NiCr alloy, CuNi alloy, thermocouple and etc, in the form of wire, strip, ribbon, bar, tube, plate.
1.Market Leader - Top 5 in China's nonferrous metal industry
2.Flexible products - Thousands of product specifications,Meet multiple needs of buyers
3.Low MOQ - Can customize samples
4.Short production lead time，fast delivery of whole cabinet
5.Professional inspection equipment - Before delivery, we will use spectrometers, tensile testers and other professional equipment to conduct a comprehensive inspection of the products to ensure that the goods are qualified for acceptance
6.Professional business team - Quickly responds to customer inquiries,24-hour professional quotation online The salesperson will follow the customer's requirements for the use of the product,Professionally recommend more appropriate performance and price products to customers
7.Intact packaging - Packaging according to customer needs.You can customize wooden boxes to ensure that the goods arrive at the destination in good condition
8.Various payment methods - Facilitate customer payment
9.Get good reviews from customers - Old customers have long-term cooperation,The longest is more than 7 years
10.Received various awards - Google is very recognized by us,They give us awards every year
FAQ
Our 3J53 elastic alloy strips feature factory-direct pricing, custom sizing, and large stock availability, providing high-purity material with fast global shipping for precision electronic and industrial applications.
Delivery for 3J53 elastic alloy strips typically takes 10–30 days for small orders and up to 60 days for bulk quantities, depending on your specific requirements.
Yes, we support both OEM and ODM production for 3J53 elastic alloy strips—simply share your samples or drawings to receive custom-engineered solutions.
We offer flexible payment methods for 3J53 elastic alloy strips orders, including T/T, L/C, D/P, Western Union, MoneyGram, and PayPal.
Yes, we welcome you to visit our 3J53 elastic alloy strips production facility in Jiangsu, China to discuss your needs directly with our technical team.
All 3J53 elastic alloy strips are manufactured in our Jiangsu, China facility and shipped worldwide according to your order specifications and quantity.
Yes, we provide 3J53 elastic alloy strips samples for quality verification, helping you evaluate performance before full-order commitment.
