ERNiCrMo-3,ERNiCrMo-4,ERNiCrMo-13,ERNiCrFe-3,ERNiCr-3,ERNi-1
DLX
Bright
0.8mm ~5.0mm or customized
8.3g/cm3
965
ISO9001/ CE/ROHS
10kg
10-25 days
chemical,petroleum,Industry
15kg/spool
Product Description

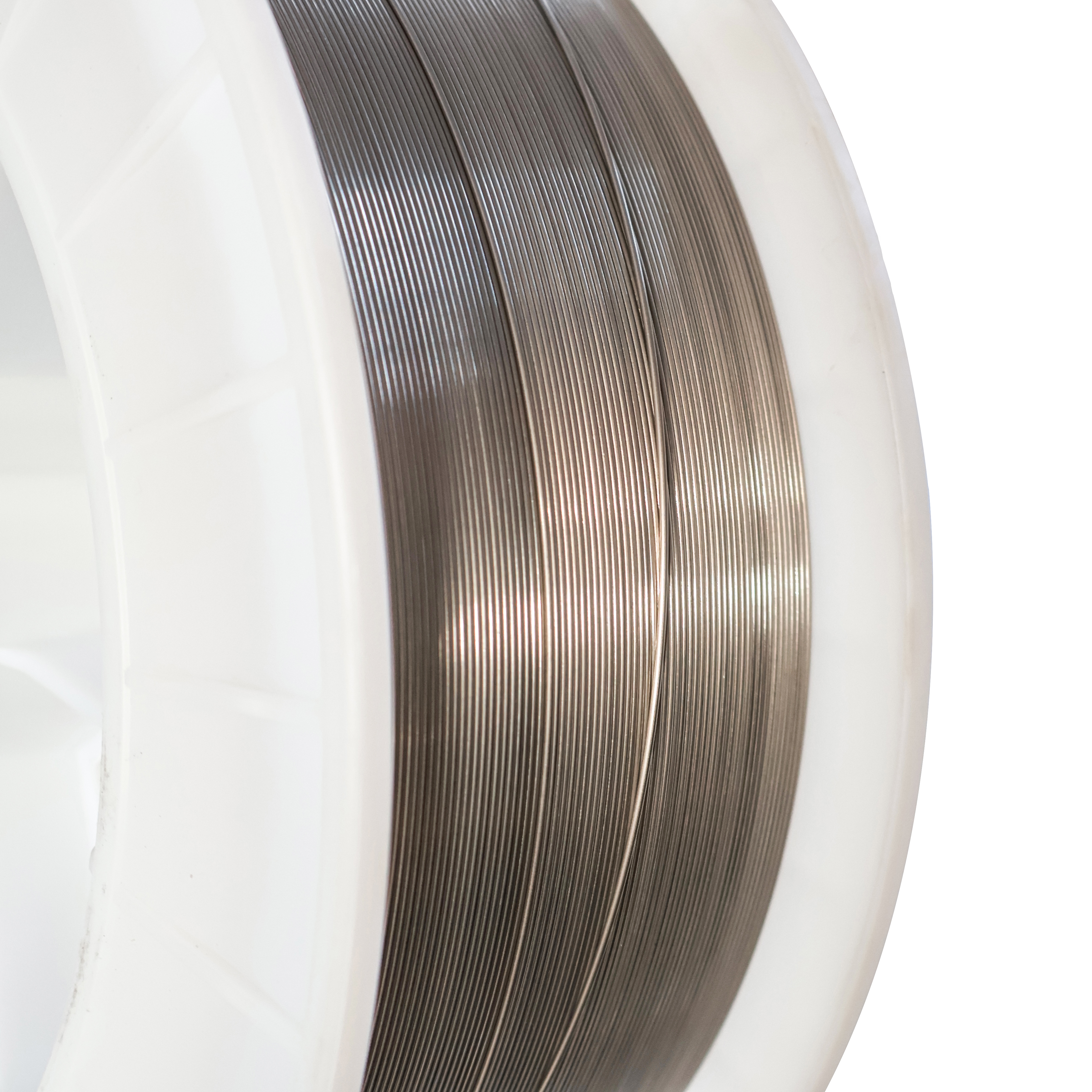

AWS ERNiCrMo-3 MIG TIG welding wire is engineered for demanding industrial environments. This nickel-chromium-molybdenum alloy wire ensures strong, durable welds with exceptional resistance to pitting, crevice corrosion, and oxidizing conditions. Suitable for both MIG (Metal Inert Gas) and TIG (Tungsten Inert Gas) welding processes, it achieves excellent mechanical properties and maintains integrity under high temperature and corrosive conditions. Its uniform composition and consistent diameter provide smooth feeding and stable arc performance, optimizing welding efficiency and quality.
Specification
Welding series: ERNiCrMo-3,ERNiCrMo-4,ERNiCrMo-13,ERNiCrFe-3,ERNiCrFe-7,ERNiCr-3,ERNiCr-7,ERNiCu-7,ERNi-1, ER70S-6.
Standard: Conforms to Certification AWS A5.14 ASME SFA A5.14
Size: 0.8MM / 1.0MM / 1.2MM / 1.6MM / 2.4MM / 3.2MM / 3.8MM / 4.0MM / 5.0MM

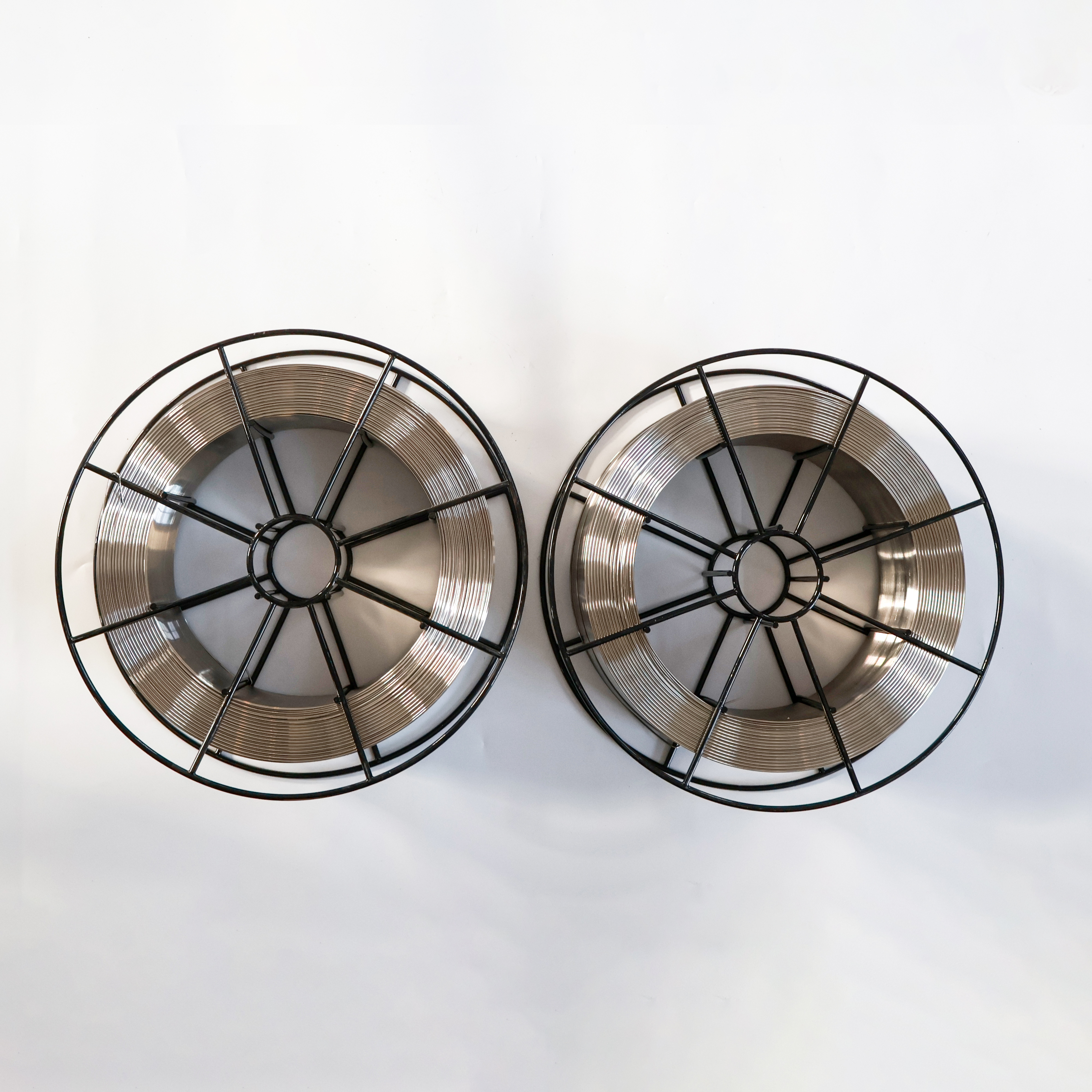

Form: MIG(15kgs/spool), TIG(5kgs/box)
Type | Standard | Manin chemcial composition % | Typical application |
Nickel welding wire | A5.14 ERNi-1 | Ni ≥ 93 Ti3 Al1 Cr-- Mo-- | ERNi-1 is used for GMAW, GTAW and ASAW welding of Nickel 200 and 201, joining these alloys to stainless and carbon steels, and |
NiCr | A5.14 ERNiCrFe-3 | Ni≥ 67 Cr 20 Mo--- Mn3 Nb2.5 Fe2 | Type ENiCrFe-3 electrodes are used for welding of nickel-chromium-iron alloys to themselves and for dissimilar welding between |
A5.14 ERNiCrFe-7 | Ni: Rest Cr 30 Fe 9 | Type ERNiCrFe-7 is used for gas-tungsten-arc and gas-metal-arc welding of INCONEL 690. | |
NiCrMo welding wire | A5.14 ERNiCrMo-3 | Ni≥ 58 Cr 21 Mo 9 Nb3.5 Fe ≤1.0 | ERNiCrMo-3 is used primarily for gas tungsten and gas metal arc and matching composition base metals. It is also used for welding |
A5.14 ERNiCrMo-4 | Ni Rest Cr 16 Mo 16 W3.7 | ERNiCrMo-4 is used for welding nickel-chromium-molybdenum base materials to itself, steel and other nickel base alloys and for | |
A5.14 ERNiCrMo-10 | Ni Rest Cr 21 Mo 14 W3.2 Fe 2.5 | ERNiCrMo-10 is used for welding nickel-chromium-molybdenum base materials to themselves, steel and other nickel base alloys, and for cladding steels. Can be used to weld duplex, super duplex stainless steels. | |
A5.14 ERNiCrMo-14 | Ni Rest Cr 21 Mo 16 W3.7 | ERNiCrMo-14 is used for gas-tungsten-arc and gas-metal-arc welding of duplex, super-duplex and super-austenitic stainless steels, | |
NiCu welding wire | A5.1 4ERNiCu-7 | Ni 65 Cr-- Mo-- Ti2 Other: Cu | ERNiCu-7 is a copper-nickel alloy base wire for GMAW and GTAW welding of Monel alloys 400 and 404. Also used for overlaying steel |
Industrial-grade nickel alloy: Optimized for high-performance welding applications.
Superior corrosion resistance: Effective in aggressive chemical and marine environments.
High-temperature stability: Maintains mechanical strength and toughness at elevated temperatures.
Compatible with MIG & TIG welding: Ensures versatility for various welding setups.
Consistent quality and arc stability: Smooth feeding, minimal spatter, and uniform weld appearance.
Excellent mechanical properties: High tensile strength, toughness, and ductility.
DLX Advantage

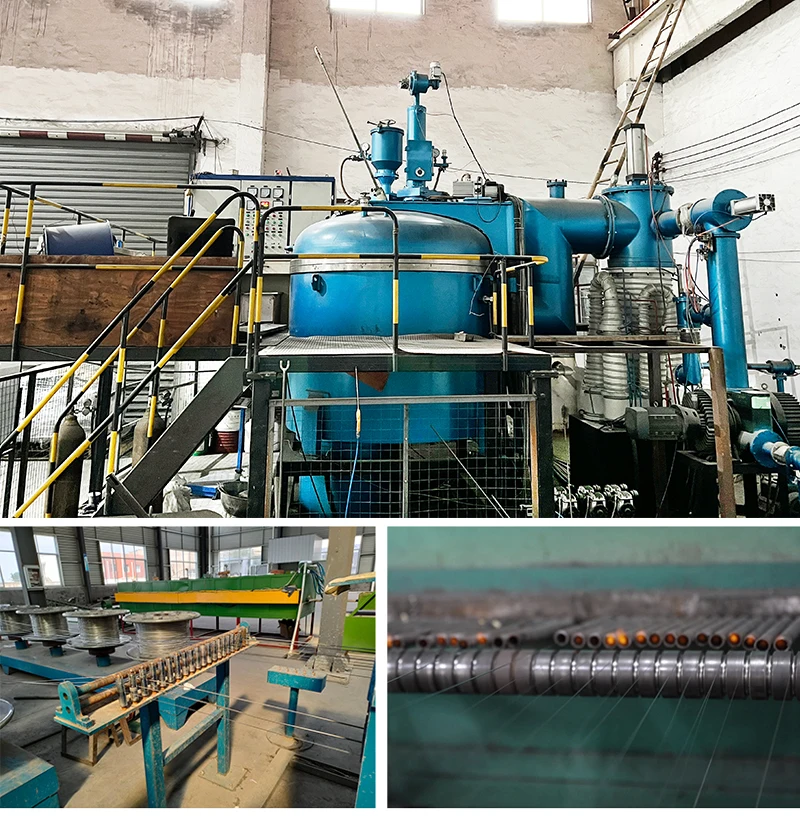

CHANGZHOU DLX ALLOY CO, LTD was established in 2002 and has got ISO9001 International Quality Management System Certificate and SGS Certificate. Our factory is professional in researching and producing special alloy material. From melting, drawing, heat treatment, finishing and testing .We offer nickel-based, copper-based, and iron-based alloys, including super alloy, welding materials, anti-corrosion alloy, precision alloy, FeCrAl alloy, NiCr alloy, CuNi alloy, thermocouple and etc, in the form of wire, strip, ribbon, bar, tube, plate.
1.Market Leader - Top 5 in China's nonferrous metal industry
2.Flexible products - Thousands of product specifications,Meet multiple needs of buyers
3.Low MOQ - Can customize samples
4.Short production lead time, fast delivery of whole cabinet
5.Professional inspection equipment - Before delivery, we will use spectrometers, tensile testers and other professional equipment to conduct a comprehensive inspection of the products to ensure that the goods are qualified for acceptance
6.Professional business team - Quickly responds to customer inquiries,24-hour professional quotation online
7.Intact packaging - Packaging according to customer needs.You can customize wooden boxes to ensure that the goods arrive at the destination in good condition
8.Various payment methods - Facilitate customer payment
9.Get good reviews from customers - Old customers have long-term cooperation,The longest is more than 7 years
10.Received various awards - Google is very recognized by us,They give us awards every year
FAQ
A1: It is suitable for welding nickel-chromium-molybdenum alloys, including Inconel 625 and similar corrosion-resistant alloys.
A2: Yes, AWS ERNiCrMo-3 is designed for both MIG and TIG welding processes, offering stable arc performance and consistent weld quality.
A3: Welded joints maintain mechanical strength and corrosion resistance at temperatures up to approximately 1200°F (650°C).
A4: Store in a dry, temperature-controlled environment, away from moisture and contaminants, to preserve its welding performance.
A5: Depending on the application, stress-relieving or solution treatment may be recommended for critical service environments.
