3J01、3J21、3J22、3J40、3J53、S3J47
DLX
ISO9001
5kg
Precision Sensing、Medical、Aerospace
Product Description

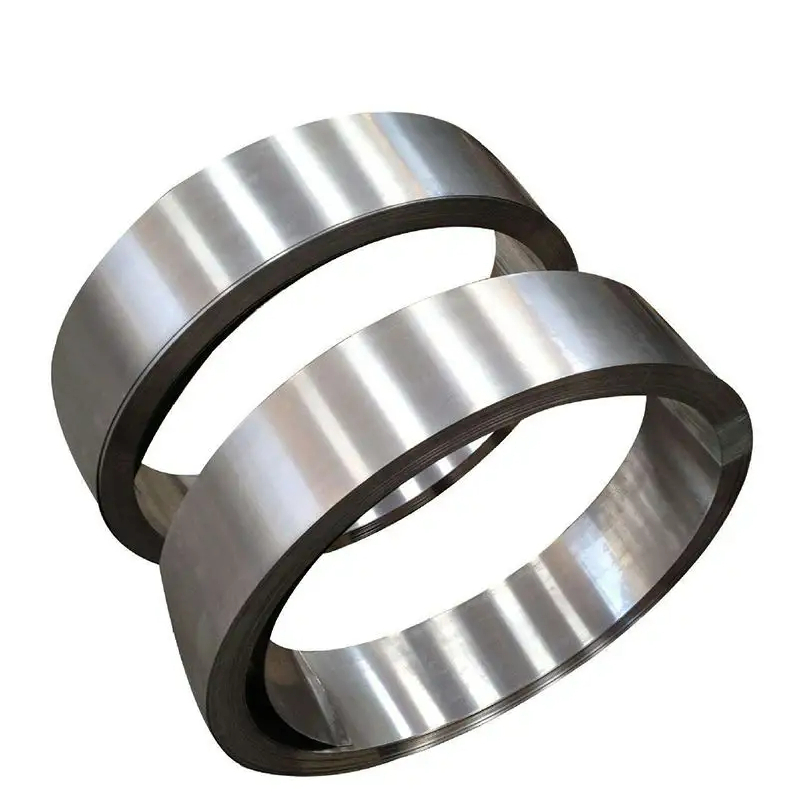

3j53 Constant Elastic Alloy Strips are premium functional materials engineered through Vacuum Induction Melting (VIM) with precise ratios of nickel, cobalt, beryllium, chromium, and other elements. 3j53 Constant Elastic Alloy Strips deliver an ultra-high elastic limit (≥1600 MPa), near-zero hysteresis loss (<0.1% energy dissipation), superior stress relaxation resistance (<0.05% deformation after 10,000 hours at 200℃), and stable temperature performance (≤5% elastic modulus variation from -50℃ to 400℃). Designed for extreme environments, they exhibit exceptional high-cycle fatigue resistance (>10⁷ cycles) and biocompatibility compliant with ISO 5832 standards.
These properties make them ideal for critical applications including strain-sensitive elements in precision sensors, minimally invasive medical implants (such as heart valve stents and orthopedic devices), and aerospace actuators (engine valves and satellite mechanisms). Supported by ISO 13485 (Medical) and AS9100 (Aerospace) certifications, elastic alloys guarantee zero-failure performance in demanding operational conditions across healthcare, aerospace, and advanced instrumentation sectors.
Elastic strain limit up to 1.5%~2.0% (vs. <0.5% for SS), withstands 10⁷ load cycles without permanent deformation (ASTM E466).
Temperature coefficient |αᴇ| ≤ 10 ppm/℃ (-50~150℃), e.g., Ni-Span C® 902 alloy.
Dynamic loss angle tanδ < 0.001 (1kHz), frequency stability ±0.001% (resonator applications).
Stress retention >97% after 1000h (70%σ₀.₂, 150℃ | ASTM E328).
Passivated alloys pass 2000h salt spray (ISO 9227 NSS), e.g., Co40NiCrMo.
Relative permeability μʀ ≤ 1.002 (e.g., Ni36CrTiAl), compliant with ASTM A342 non-magnetic standard.
Specification
| 3j53 Constant Elastic Alloy Strips of Chemical composition% | ||||||
| Elements/Properties | 3J01 | 3J21 | 3J22 | 3J40 | 3J53 | S3J47 |
| C | ≤0.05 | ≤0.10 | ≤0.08 | ≤0.05 | ≤0.05 | ≤0.08 |
| Ni | 34.0-36.0 | 19.0-21.0 | 14.0-16.0 | 41.0-43.0 | 41.5-43.0 | 14.0-16.0 |
| Cr | 11.5-13.0 | 18.0-20.0 | 18.0-20.0 | 5.20-5.80 | 5.2-5.8 | 18.0-20.0 |
| Co | - | 余量 | 余量 | - | - | 余量 |
| Ti | 2.70-3.20 | - | - | 2.10-2.50 | 2.3-2.7 | - |
| Al | 1.00-1.30 | - | - | 0.50-0.80 | 0.5-0.8 | - |
| Mo | - | 6.0-8.0 | 6.0-8.0 | - | - | 6.0-8.0 |
| Fe | 余量 | ≤3.0 | ≤3.0 | 余量 | 余量 | ≤3.0 |
| Mn | ≤0.80 | ≤1.0 | ≤1.0 | ≤0.80 | ≤0.80 | ≤1.0 |
| Si | ≤0.80 | ≤0.60 | ≤0.60 | ≤0.80 | ≤0.80 | ≤0.60 |
| Elastic Limit (MPa) | ≥980 | ≥1500 | ≥1600 | ≥850 | ≥1000 | ≥1700 |
| Hysteresis Loss (%) | ≤0.15 | ≤0.08 | ≤0.05 | ≤0.10 | ≤0.08 | ≤0.03 |
| Operating Temperature Range (°C) | -60~250 | -50~400 | -50~450 | -50~150 | -60~200 | -50~500 |
Application Field
Due to their unique combination of properties, 3j53 Constant Elastic Alloy Strips are widely used in the following demanding applications:
Pressure sensor diaphragms, optical encoder springs
Pacemaker lead wires, minimally invasive surgical springs
Satellite antenna deployment mechanisms, fuel valve shims
DLX Advantage
CHANGZHOU DLX ALLOY CO, LTD was established in 2002 and has got ISO9001 International Quality Management System Certificate and SGS Certificate. Our factory is professional in researching and producing special alloy material. From melting, drawing, heat treatment, finishing and testing .We offer nickel-based, copper-based, and iron-based alloys, including super alloy, welding materials, anti-corrosion alloy, precision alloy, FeCrAl alloy, NiCr alloy, CuNi alloy, thermocouple and etc, in the form of wire, strip, ribbon, bar, tube, plate.
1.Market Leader - Top 5 in China's nonferrous metal industry
2.Flexible products - Thousands of product specifications,Meet multiple needs of buyers
3.Low MOQ - Can customize samples
4.Short production lead time，fast delivery of whole cabinet
5.Professional inspection equipment - Before delivery, we will use spectrometers, tensile testers and other professional equipment to conduct a comprehensive inspection of the products to ensure that the goods are qualified for acceptance
6.Professional business team - Quickly responds to customer inquiries,24-hour professional quotation online The salesperson will follow the customer's requirements for the use of the product,Professionally recommend more appropriate performance and price products to customers
7.Intact packaging - Packaging according to customer needs.You can customize wooden boxes to ensure that the goods arrive at the destination in good condition
8.Various payment methods - Facilitate customer payment
9.Get good reviews from customers - Old customers have long-term cooperation,The longest is more than 7 years
10.Received various awards - Google is very recognized by us,They give us awards every year
FAQ
Factory Direct Supply with Competitive Wholesale Prices
Custom Sizes & Large Stock Availability
Fast Global Shipping & Reliable Industrial Supply
Guaranteed High Purity for Electronic & Industrial Applications
It depends on the quantity of the order, 10-30 days for small orders. For large orders, it takes 60 days.
Yes, we fully support OEM and ODM production for 3J53 constant elastic alloy strips—just share your samples or drawings to receive tailored solutions.
We accept a range of payment methods for 3J53 constant elastic alloy strips, including T/T, L/C, D/P, Western Union, MoneyGram, and PayPal.
Yes, you are welcome to visit our 3J53 constant elastic alloy strips production base—we look forward to building trusted partnerships through direct communication.
Our 3J53 constant elastic alloy strips are manufactured in Jiangsu, China, and shipped worldwide based on your order requirements and quantity.
Yes, we provide 3J53 constant elastic alloy strip samples to help you evaluate quality and suitability before placing a full order.
