A-286,Nimonic80A,Nimonic90,Nimonic75,GH3030,GH3044,GH3039,GH4145,GH4169,GH2747
DLX
bright
8.4g/cm3
ISO9001, ROHS
3kg
1300-1390°C
5-20 Days
chemical,petroleum
Product Description

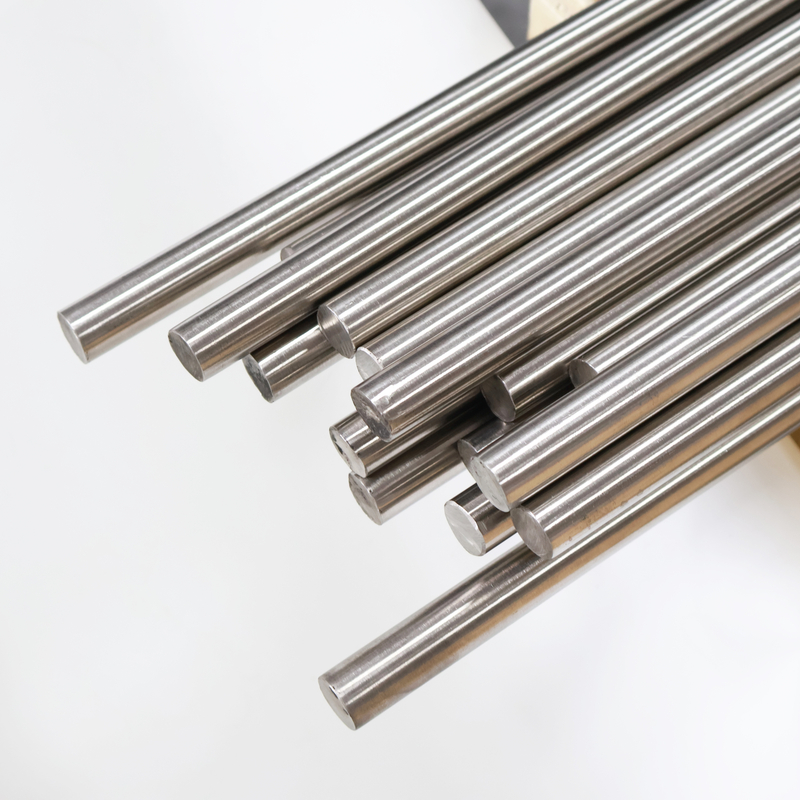

Nimonic 75 High Temperature Alloy Bar - Extreme Heat Resistance for Steam Turbine Wheels
Engineered for exceptional strength and oxidation resistance at sustained high temperatures, Nimonic 75 High Temperature Alloy Bar delivers unmatched performance in critical power generation applications. This premium-grade nickel-chromium alloy offers superior creep resistance and thermal stability, making it essential for demanding components in steam turbines, gas turbines, and aerospace propulsion systems.
Composed of 80% nickel, 20% chromium with titanium reinforcement (UNS N06075), the alloy bar maintains outstanding mechanical integrity from ambient temperatures to extreme service conditions exceeding 815°C. Its optimized microstructure ensures unparalleled resistance to thermal fatigue, oxidation, and exhaust gas corrosion, providing reliable long-term operation in high-stress environments where component failure is unacceptable.
Manufactured to stringent AMS 5754/BS HR 505 standards, Nimonic 75 High Temperature Alloy Bar guarantees metallurgical consistency and dimensional precision for forged turbine components. Optimized for hot working, machining, and welding, it is the certified solution for turbine wheels, rotor shafts, and combustion chambers requiring zero deformation at red-hot temperatures and maximum operational lifespan.
Outperforms standard alloys in 815°C+ exhaust gas and steam environments, with oxidation resistance 3X higher than 304 stainless steel.
Maintains 120+ MPa tensile strength at 815°C (1500°F) - from ambient to extreme turbine operating temperatures.
80% Ni-20% Cr-Ti matrix (UNS N06075) prevents sigma phase embrittlement for decade-long service life.
Unique grain boundary design withstands 10,000+ thermal cycles in turbine start-stop operations.
Precision forged into complex turbine geometries with zero cracking at 1100°C+ forming temperatures.
DLX Alloy's Nimonic 75 High Temperature Alloy Bar delivers mission-critical reliability for power generation and aerospace turbine systems. Offering mill-direct pricing, volume discounts for large forging projects, and global logistics with DDP terms, we provide AMS 5754-certified alloy solutions engineered for your extreme heat application requirements.
Specification
| Item | A-286 | Nimonic75 | Nimonic80A | Nimonic90 | GH3030 | GH3044 | GH3039 | GH4145 | GH4169 | GH2747 |
| C | ≤0.08 | 0.08-0.15 | ≤0.1 | ≤0.13 | ≤0.12 | ≤0.1 | ≤0.08 | ≤0.08 | ≤0.08 | ≤0.1 |
| Mn | ≤2 | ≤1 | ≤1 | ≤1 | ≤0.7 | ≤0.5 | ≤0.4 | ≤1 | ≤0.35 | ≤1.00 |
| Fe | rest | ≤5 | ≤3 | ≤1.5 | ≤1.5 | ≤4 | ≤3.0 | 5.0-9.0 | balance | balance |
| P | ≤0.04 | -- | ≤0.02 | -- | ≤0.02 | ≤0.013 | ≤0.02 | ≤0.015 | ≤0.015 | ≤0.025 |
| S | ≤0.03 | -- | ≤0.015 | ≤0.015 | ≤0.02 | ≤0.013 | ≤0.012 | ≤0.010 | ≤0.015 | ≤0.02 |
| Si | ≤1 | ≤1 | ≤1 | ≤1 | ≤0.8 | ≤0.8 | ≤0.8 | ≤0.5 | ≤0.35 | ≤1 |
| Cu | -- | ≤0.5 | -- | ≤0.2 | ≤0.2 | ≤0.07 | ≤0.2 | ≤0.5 | ≤0.3 | -- |
| Ni | 24-27 | banlance | rest | -- | rest | rest | rest | ≥70 | 50-55 | 44.0-46.0 |
| Co | -- | -- | ≤2 | 15-21 | -- | -- | -- | ≤1 | ≤1 | -- |
| Al | ≤0.35 | -- | 1-1.8 | 1-2 | ≤0.15 | ≤0.5 | 0.35-0.75 | 0.40-1.0 | 0.2-0.8 | 2.9-3.9 |
| Ti | 1.9-2.35 | 0.2-0.6 | 1.8-2.7 | 2-3 | 0.15-0.35 | 0.3-0.7 | 0.35-0.75 | 2.25-2.75 | 0.65-1.15 | ≤0.35 |
| Cr | 13.5-16 | 18-21 | 18-21 | 18-21 | 19-22 | 23.5-26.5 | 19-22 | 14-17 | 17-21 | 15-17 |
| Nb | -- | -- | -- | -- | -- | -- | 0.9-1.3 | 0.7-1.2 | 4.75-5.5 | -- |
| Mo | 1-1.5 | -- | -- | -- | -- | ≤1.5 | 1.80-2.30 | -- | 2.8-3.3 | ---- |
| B | 0.001-0.1 | -- | ≤0.008 | ≤0.02 | -- | -- | -- | -- | -- | -- |
| V | 0.1-0.5 | -- | -- | -- | -- | -- | -- | -- | -- | -- |
| W | -- | -- | -- | -- | -- | 13-16 | -- | -- | -- | -- |
| Zr | -- | -- | ≤0.15 | ≤0.15 | -- | -- | -- | -- | -- | -- |
| Pb | -- | -- | -- | ≤0.002 | -- | -- | -- | -- | -- | -- |
| Ce | -- | -- | -- | -- | -- | -- | -- | -- | -- | ≤0.03 |
Application Field
Caustic Soda Evaporators – Unmatched resistance to concentrated NaOH up to 50% at 150°C.
Chlor-Alkali Cell Components – Zero contamination in brine electrolysis systems.
Reducing Agent Pipelines – Safely transports hydrazine and hydroxylamine solutions.
Ultra-Pure Gas Delivery Systems – ASTM B161-certified for 99.999% gas purity.
Wafer Etching Equipment – Non-magnetic properties prevent EMI interference.
CVD Reactor Cooling Lines – Thermal stability in thermal cycling (200-300°C).
Alkaline Fuel Cell Stacks – Corrosion-free operation in KOH electrolytes.
Molten Salt Heat Transfer Loops – Withstands molten fluorides up to 600°F.
Nuclear Reactor Instrumentation – Radiation transparency for sensor conduits.
Desalination Plant Evaporators – Immune to chloride-induced SCC in brine.
Deep-Sea ROV Power Cables – Cryogenic integrity at 5,000m depths (-4°C).
MRI Cryogenic Transfer Lines – Zero magnetic permeability at 4K.
Pharmaceutical Distillation Columns – USP Class VI compliance for bioprocessing.
DLX Advantage
CHANGZHOU DLX ALLOY CO, LTD was established in 2002 and has got ISO9001 International Quality Management System Certificate and SGS Certificate. Our factory is professional in researching and producing special alloy material. From melting, drawing, heat treatment, finishing and testing .We offer nickel-based, copper-based, and iron-based alloys, including super alloy, welding materials, anti-corrosion alloy, precision alloy, FeCrAl alloy, NiCr alloy, CuNi alloy, thermocouple and etc, in the form of wire, strip, ribbon, bar, tube, plate.
Wholesale & Bulk Discounts – Special pricing for large-volume orders.
Fast & Global Shipping – Reliable worldwide delivery options.
Certified & High-Quality Material – Meets AWS, ASTM, and ISO standards.
Custom Order Sizes – Available in spools, coils, and cut-to-length options.
Guaranteed Stock Availability – Ready for immediate dispatch.
Tailored Customization Services – Offers personalized alloy specifications and wire configurations to match your unique requirements.
Samples provided – Provides samples for testing, ensuring you choose the perfect product with confidence.
FAQ
Delivery for small orders of Nimonic 75 high temperature alloy rods takes 10-25 days, while large orders may require up to 60 days based on quantity.
Yes, we accept OEM and ODM services for Nimonic 75 rods—just send your samples or drawings for customization.
Our expert team employs advanced quality planning, strict controls, and ongoing improvements, issuing certificates with chemical analysis reports for every Nimonic 75 rod.
Yes, share your Nimonic 75 rod specifications and applications, and we'll promptly send detailed technical data and drawings for review.
Our dedicated team provides personalized one-on-one guidance for Nimonic 75 orders, addressing pre-sale needs and post-sale questions swiftly.
Yes, we welcome visits to our Nimonic 75 production facility to explore high temperature alloy rod manufacturing firsthand.
We manufacture Nimonic 75 high temperature alloy rods in Jiangsu, China, and ship globally based on your order size and requirements.
Yes, we provide Nimonic 75 rod samples upon request to help evaluate our quality.
