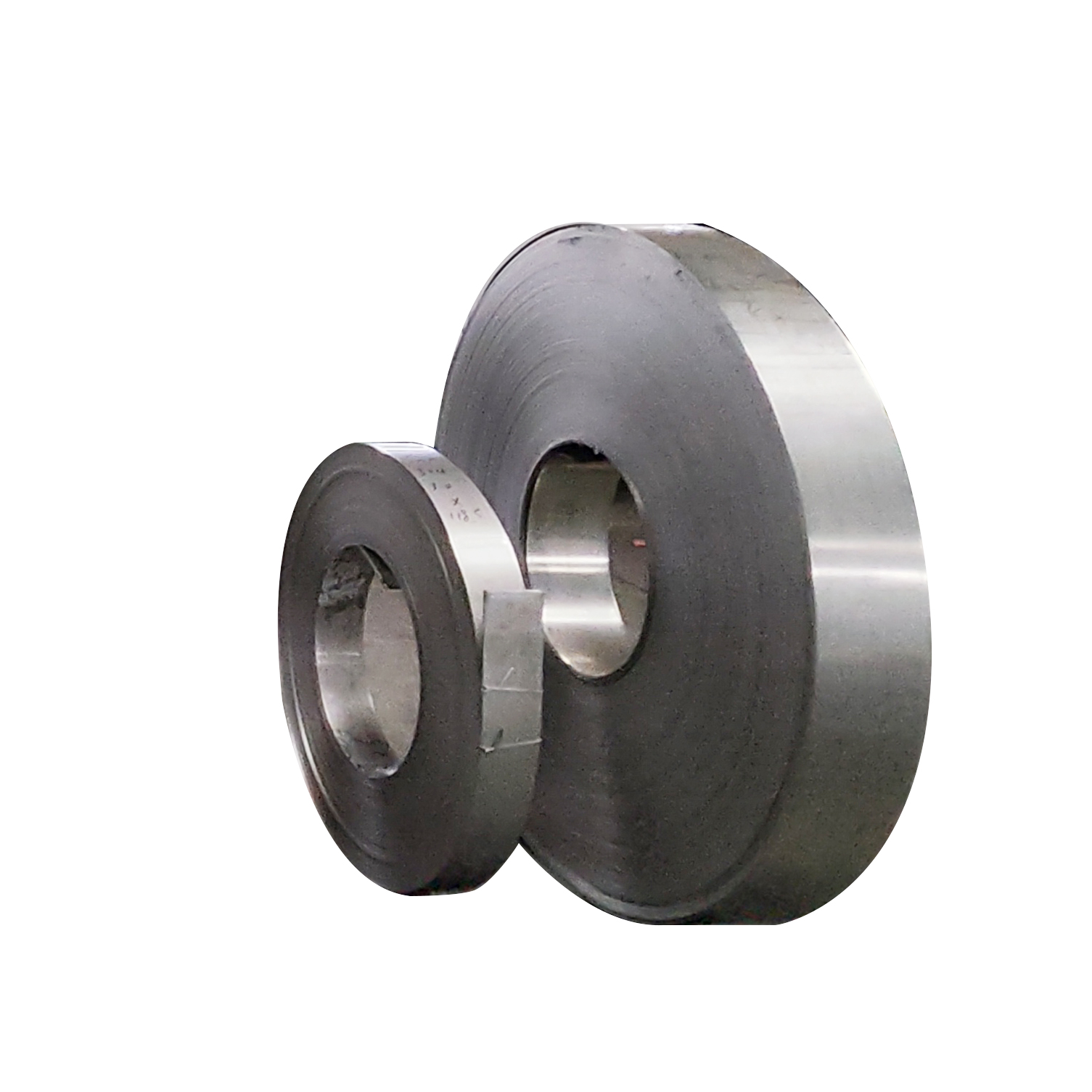

Cr15Ni60 Nickel Chromium Alloy Strip is a premium resistance heating material composed of 55-61% nickel, 15-18% chromium, and balanced iron. With a maximum operating temperature of 1150°C, Cr15Ni60 Nickel Chromium Alloy Strip delivers exceptional oxidation resistance, high electrical resistivity and a stable austenite microstructure.
Cr10Ni90/Cr20Ni80/Cr30Ni70/Cr15Ni60/Cr20Ni35/Cr20Ni30
DLX
Bright
Customized Size
7.9g/cm3
ISO9001
5kg
1390°C
5-20 Days
chemical,petroleum
Product Description

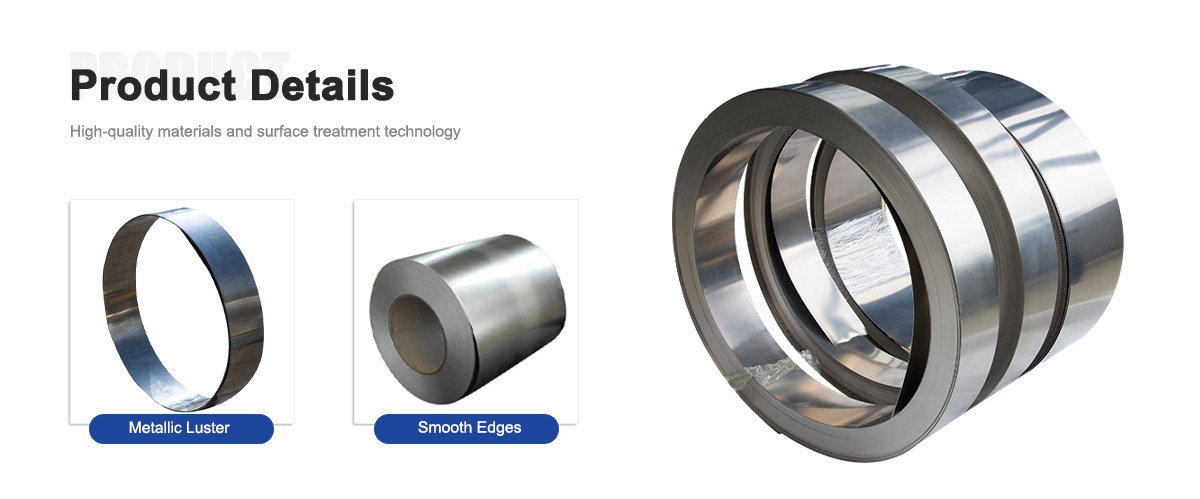

The Cr15Ni60 Nickel Chromium Alloy Strip is engineered for superior performance in high-temperature applications. Manufactured by DLX Alloy, Cr15Ni60 Nickel Chromium Alloy Strip offers a melting point of 1390°C, high tensile strength and excellent corrosion resistance.
Its versatility allows it to be shaped into various forms, making it ideal for industrial furnaces, household appliances, and precision components in electronics and metallurgy. Certified with ISO9001, Cr15Ni60 ensures reliability and efficiency.
Cr15Ni60 Nickel Chromium Alloy Strip Operates reliably at temperatures up to 1100°C, ideal for high-heat industrial and domestic applications.
Resists degradation in oxygen-rich and corrosive environments, ensuring long-term durability.
Resists degradation in acidic, alkaline, and humid conditions, suitable for harsh industrial settings.
Easily shaped into coils, strips, or custom designs for diverse industrial applications.
Austenite structure minimizes electromagnetic interference, suitable for sensitive equipment.
Specification
Shape | Size(mm) |
| Wire | 0.05-7.5 |
| Rod | 8-50 |
| Ribbon | (0.05-0.35)*(0.5-6.0) |
| Strip | (0.5-2.5)*(5-180) |
| Performance material | Cr10Ni90 | Cr20Ni80 | Cr30Ni70 | Cr15Ni60 | Cr20Ni35 | Cr20Ni30 | |
| composition | Ni | 90 | Rest | Rest | 55.0～61.0 | 34.0～37.0 | 30.0～34.0 |
| Cr | 10 | 20.0～23.0 | 28.0～31.0 | 15.0～18.0 | 18.0～21.0 | 18.0～21.0 | |
| Fe | -- | ≤1.0 | ≤1.0 | Rest | Rest | Rest | |
| Maximum temperature℃ | 1300 | 1200 | 1250 | 1150 | 1100 | 1100 | |
| Meltiing point ℃ | 1400 | 1400 | 1380 | 1390 | 1390 | 1390 | |
| Density(g/cm3) | 8.7 | 8.4 | 8.1 | 8.2 | 7.9 | 7.9 | |
| Resistivity | -- | 1.09±0.05 | 1.18±0.05 | 1.12±0.05 | 1.00±0.05 | 1.04±0.05 | |
| Elongation at rupture | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 | |
| Specific heat J/g.℃ | -- | 0.44 | 0.461 | 0.494 | 0.5 | 0.5 | |
| Thermal conductivity KJ/m.h℃ | -- | 60.3 | 45.2 | 45.2 | 43.8 | 43.8 | |
| Coefficient of lines expansion | -- | 18 | 17 | 17 | 19 | 19 | |
| Micrographic structure | -- | Austenite | Austenite | Austenite | Austenite | Austenite | |
| Magnetic properties | -- | Nonmagnetic | Nonmagnetic | Nonmagnetic | Nonmagnetic | Nonmagnetic | |
Application Field
Cr15Ni60 Nickel Chromium Alloy Strip for Industrial is valued for its versatility and reliability across various industries:
Used in industrial furnaces for ceramic, glass, and metal processing due to its high-temperature stability.
Ideal for heat treatment furnaces requiring precise temperature control for annealing and tempering.
Incorporated in electric heaters, toasters, and ovens for rapid and reliable heating.
Supports high-performance heating elements in kettles and air fryers.
Integrated into components requiring controlled heating, such as automotive seat heaters and aerospace thermal systems.
Utilized in precision resistors and temperature sensors for stable and accurate performance.
Applied in semiconductor manufacturing for clean and controlled heating processes.
Our Advantage
CHANGZHOU DLX ALLOY CO, LTD was established in 2002 and has got ISO9001 International Quality Management System Certificate and SGS Certificate. Our factory is professional in researching and producing special alloy material. From melting, drawing, heat treatment, finishing and testing .We offer nickel-based, copper-based, and iron-based alloys, including super alloy, welding materials, anti-corrosion alloy, precision alloy, FeCrAl alloy, NiCr alloy, CuNi alloy, thermocouple and etc, in the form of wire, strip, ribbon, bar, tube, plate.
1.Market Leader - Top 5 in China's nonferrous metal industry
2.Flexible products - Thousands of product specifications,Meet multiple needs of buyers
3.Low MOQ - Can customize samples
4.Short production lead time，fast delivery of whole cabinet
5.Professional inspection equipment - Before delivery, we will use spectrometers, tensile testers and other professional equipment to conduct a comprehensive inspection of the products to ensure that the goods are qualified for acceptance
6.Professional business team - Quickly responds to customer inquiries,24-hour professional quotation online The salesperson will follow the customer's requirements for the use of the product,Professionally recommend more appropriate performance and price products to customers
7.Intact packaging - Packaging according to customer needs.You can customize wooden boxes to ensure that the goods arrive at the destination in good condition
8.Various payment methods - Facilitate customer payment
9.Get good reviews from customers - Old customers have long-term cooperation,The longest is more than 7 years
10.Received various awards - Google is very recognized by us,They give us awards every year

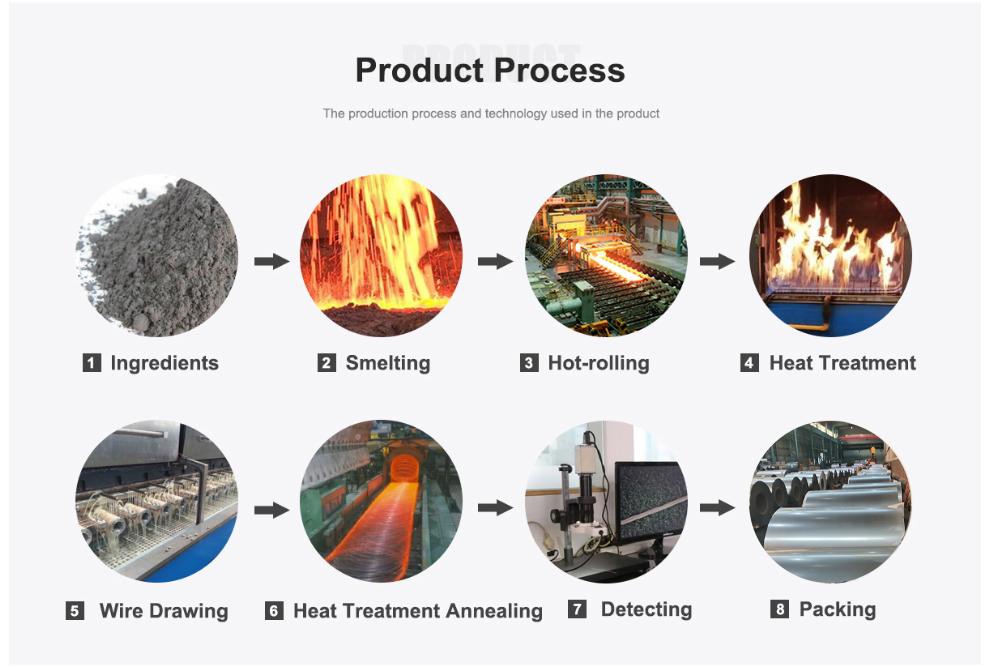

Product Process
Long Lifespan: Oxidation and corrosion resistance significantly extend component life, reducing maintenance costs.
High Surface Load: Allows higher power density for rapid heating
Cost-Effective: More economical than nichrome alloys, offering superior value
Easy Processing: Excellent formability and stability, facilitating manufacturing of various shaped heating wires
It depends on the quantity of the order, 10-30 days for small orders. For large orders, it takes 60 days.
Yes! We accept OEM/ODM production. You can send us your samples or drawings.
T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
Yes, you are welcome to visit our factory. We are glad to have the opportunity to get to know each other.
We manufacture our products in Jiangsu, China and ship them from China to your country as soon as possible, which usually depends on your product requirements and quantity.
Yes, we can.
