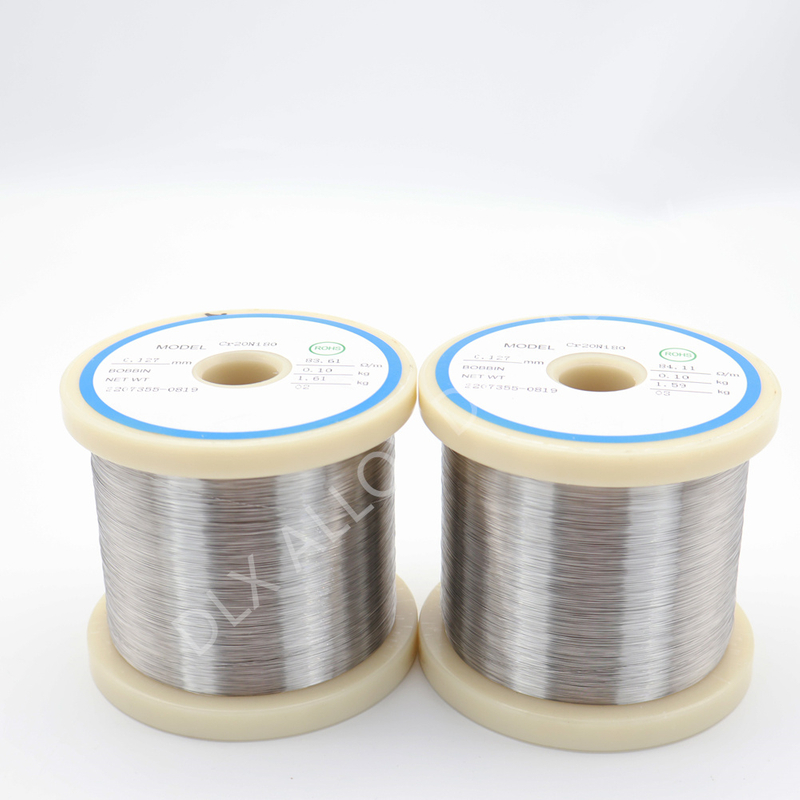

Cr20Ni80 Nickel Chromium Wire delivers exceptional high-temperature resistance, making it ideal for precision heating elements and durable industrial applications. Crafted with an 80% nickel and 20% chromium alloy composition, it provides excellent oxidation resistance and extended service life in extreme environments, serving as a reliable choice for manufacturing resistance components and thermal processing systems.
Cr10Ni90/Cr20Ni80/Cr30Ni70/Cr15Ni60/Cr20Ni35/Cr20Ni30
DLX
Bright
Customized Size
8.4g/cm3
637-784Mpa
ISO9001/ CE/ROHS
5kg
1300-1390°C
5-20 Days
chemical,petroleum
Product Description
Engineered for superior high-resistance applications in heating elements and industrial furnaces, Cr20Ni80 Nickel Chromium Wire delivers reliable performance up to 1250°C. This austenitic alloy with 20% chromium content ensures extended service life in furnace applications, immune to "green rot" and compatible with both reducing/oxidizing atmospheres.
Featuring high resistivity (1.18μΩ·m), exceptional oxidation resistance, and cold-forming capability with low thermal expansion (14.2×10⁻⁶/℃), it is the optimal solution for industrial furnace windings, precision resistance coils, and high-temperature heating systems.
Specification
Shape | Size(mm) |
| Wire | 0.05-7.5 |
| Rod | 8-50 |
| Ribbon | (0.05-0.35)*(0.5-6.0) |
| Strip | (0.5-2.5)*(5-180) |
| Performance material | Cr10Ni90 | Cr20Ni80 | Cr30Ni70 | Cr15Ni60 | Cr20Ni35 | Cr20Ni30 | |
| composition | Ni | 90 | Rest | Rest | 55.0～61.0 | 34.0～37.0 | 30.0～34.0 |
| Cr | 10 | 20.0～23.0 | 28.0～31.0 | 15.0～18.0 | 18.0～21.0 | 18.0～21.0 | |
| Fe | -- | ≤1.0 | ≤1.0 | Rest | Rest | Rest | |
| Maximum temperature℃ | 1300 | 1200 | 1250 | 1150 | 1100 | 1100 | |
| Meltiing point ℃ | 1400 | 1400 | 1380 | 1390 | 1390 | 1390 | |
| Density(g/cm3) | 8.7 | 8.4 | 8.1 | 8.2 | 7.9 | 7.9 | |
| Resistivity | -- | 1.09±0.05 | 1.18±0.05 | 1.12±0.05 | 1.00±0.05 | 1.04±0.05 | |
| Elongation at rupture | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 | |
| Specific heat J/g.℃ | -- | 0.44 | 0.461 | 0.494 | 0.5 | 0.5 | |
| Thermal conductivity KJ/m.h℃ | -- | 60.3 | 45.2 | 45.2 | 43.8 | 43.8 | |
| Coefficient of lines expansion | -- | 18 | 17 | 17 | 19 | 19 | |
| Micrographic structure | -- | Austenite | Austenite | Austenite | Austenite | Austenite | |
| Magnetic properties | -- | Nonmagnetic | Nonmagnetic | Nonmagnetic | Nonmagnetic | Nonmagnetic | |
Application Field
Cr20Ni80 Nickel Chromium Wire is widely used in industrial furnaces, precision resistors, and heating elements for appliances like ovens and kilns. Its high resistance and corrosion resistance make it ideal for harsh environments, including chemical processing and aerospace applications, ensuring reliable high-temperature performance.
Our Advantage
CHANGZHOU DLX ALLOY CO, LTD was established in 2002 and has got Iso9001 International Quality Management System Certificate and SGS Certificate. Our factory is professional in researching and producing special alloy material. From melting, drawing, heat treatment, finishing and testing .We offer nickel-based, copper-based, and iron-based alloys, including super alloy, welding materials, anti-corrosion alloy, precision alloy, FeCrAl alloy, NiCr alloy, CuNi alloy, thermocouple and etc, in the form of wire, strip, ribbon, bar, tube, plate.
Top 5 in China's nonferrous metal industry
Thousands of product specifications,Meet multiple needs of buyers
Can customize samples
Before delivery, we will use spectrometers, tensile testers and other professional equipment to conduct a comprehensive inspection of the products to ensure that the goods are qualified for acceptance
Quickly responds to customer inquiries,24-hour professional quotation online The salesperson will follow the customer's requirements for the use of the product,Professionally recommend more appropriate performance and price products to customers
Packaging according to customer needs.You can customize wooden boxes to ensure that the goods arrive at the destination in good condition
Facilitate customer payment
Old customers have long-term cooperation,The longest is more than 7 years
Product Process
Customer first and Best price offer
Cr20Ni80 (NiCr 80/20) is the most widely used high-resistance electrothermal alloy wire in the world, containing 80% nickel and 20% chromium. It is the standard material for industrial heating elements and high-temperature electric furnaces, offering excellent oxidation resistance up to 1200°C. We are a leading Cr20Ni80 nichrome wire manufacturer in China with 16+ years of factory experience.
Cr20Ni80 nichrome wire can continuously operate at 1200°C (2192°F) and withstand short-term peaks up to 1250°C, making it the first choice for industrial kilns, ceramic furnaces, and vacuum furnace heating elements.
DLX Alloy is one of the largest direct nichrome wire factories in China (located in Jiangsu Province). We supply authentic Cr20Ni80/NiCr 8020 resistance heating wire worldwide with mill test certificates, supporting custom diameters from 0.01mm to 12mm.
