OCr15Al5,1Cr13Al4, 0Cr21Al4, 0Cr21Al6, 0Cr25Al5, 0Cr21Al6Nb,0Cr27Al7Mo2.
DLX
Acid Pickling/Bright
Customized Size
7.4g/cm3
637-784Mpa
ISO
5kg
5-20 Days
Product Description

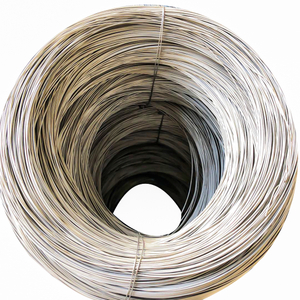

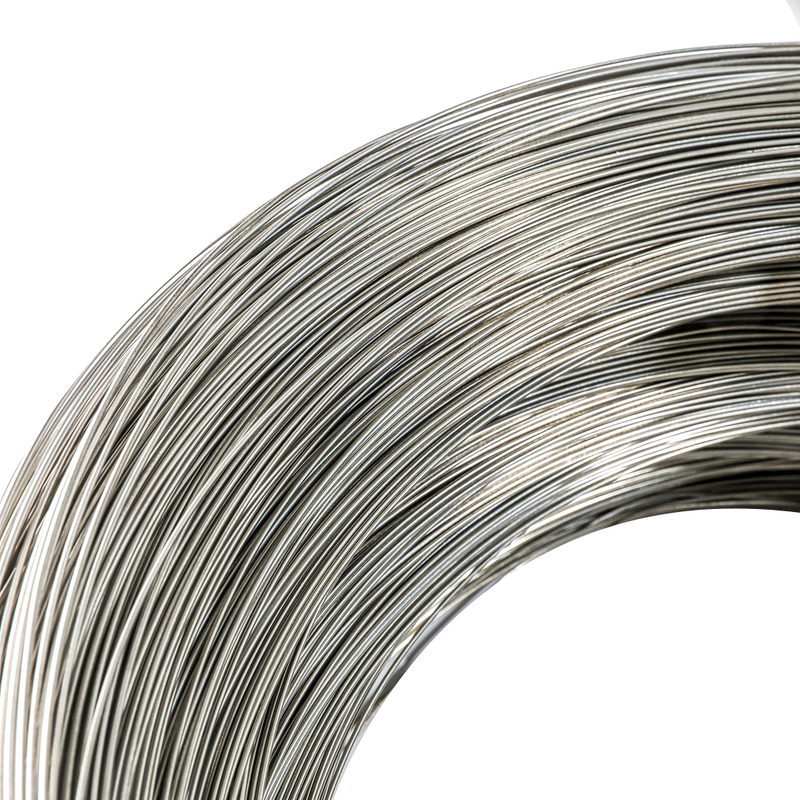

FeCrAl (Iron-Chromium-Aluminum) heating resistance wire is a high-performance alloy primarily composed of Fe-20Cr-5Al (with trace rare earth elements). It exhibits high resistivity (1.4-1.5 μΩ·m) and exceptional high-temperature resistance.
A key advantage is the formation of a dense alumina (Al₂O₃) protective layer at elevated temperatures, providing superior oxidation resistance and corrosion resistance in harsh environments (e.g., hydrogen or sulfur-containing atmospheres). FeCrAl wires also feature low thermal expansion and excellent creep resistance, making them ideal for industrial furnaces, heat treatment systems, nuclear heating modules, and aerospace thermal components.
(1)High resistance
(2)Low temperature coefficient of resistance
(3)High working temperature
(4)Good corrosion resistance especailly under high temperature
(5)Good performance of anti-carburizing, the atmosphere and surface of sulfur pollution.
(6)Long useful life
(1)Good corrosion resistance at high temperature.
(2)The price is cheaper than Nickel Chrome wire.
(3) It can be widely used in industrial furnacess, household appliances and far-infrared devices.
Specification
Shape | Size(mm) |
| Wire | 0.05-7.5 |
| Rod | 8-50 |
| Ribbon | (0.05-0.35)*(0.5-6.0) |
| Strip | (0.5-2.5)*(5-180) |
| Alloy Nomenclature Performance | 1Cr13AL4 | 0Cr25Al5 | 0Cr21AL6 | 0Cr23Al5 | 0Cr21Al4 | 0Cr21Al6Nb | 0Cr27Al7Mo2 | |
| Main Chemical composition | Cr | 12.0-15.0 | 23.0-26.0 | 19.0-22.0 | 20.5-23.5 | 18.0-21.0 | 21.0-23.0 | 26.5-27.8 |
| Al | 4.0-6.0 | 4.5-6.5 | 5.0-7.0 | 4.2-5.3 | 3.0-4.2 | 5.0-7.0 | 6.0-7.0 | |
| Re | opportune | opportune | opportune | opportune | opportune | opportune | opportune | |
| Fe | Rest | Rest | Rest | Rest | Rest | Rest | Rest | |
| Nb0.5 | Mo1.8-2.2 | |||||||
| Max. continuous service temp. of element(°C) | 950 | 1250 | 1250 | 1250 | 1100 | 1350 | 1400 | |
| Resistivity at 20ºC(μΩ·m) | 1.25 | 1.42 | 1.42 | 1.35 | 1.23 | 1.45 | 1.53 | |
| Density(g/cm3) | 7.4 | 7.1 | 7.16 | 7.25 | 7.35 | 7.1 | 7.1 | |
| Thermal conductivity(KJ/m·h·ºC) | 52.7 | 46.1 | 63.2 | 60.2 | 46.9 | 46.1 | -- | |
| Coefficient of lines expansion(α×10-6/ºC) | 15.4 | 16 | 14.7 | 15 | 13.5 | 16 | 16 | |
| Melting point approx.( ºC) | 1450 | 1500 | 1500 | 1500 | 1500 | 1510 | 1520 | |
| Tensile strength(N/mm2) | 580-680 | 630-780 | 630-780 | 630-780 | 600-700 | 650-800 | 680-830 | |
| Elongation at rupture(%) | >16 | >12 | >12 | >12 | >12 | >12 | >10 | |
| Variation of area(%) | 65-75 | 60-75 | 65-75 | 65-75 | 65-75 | 65-75 | 65-75 | |
| Hardness(H.B.) | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | |
Application Field
0Cr21AL6 Heat Resistant Wire FeCrAl Alloy is widely used in industrial furnace, household appliances, industry furnace, metallurgy, machinery, aircraft, automotive,military and other industries producing heating elements and resistance elements.
