Why Nichrome Heating Elements Fail: 8 Common Causes And How To Extend Coil Life

Nichrome heating elements are known for high electrical resistance, good oxidation resistance, and reliable performance at elevated temperatures. That is why nickel-chromium resistance alloys are widely used in industrial furnaces, ovens, dryers, sealing machines, electric heaters, kilns, laboratory equipment, and many other electric heating systems.

But Nichrome wire does not last forever.

A heating coil that repeatedly burns out, develops bright hot spots, sags, becomes brittle, or breaks near a terminal is usually showing the final result of a problem that has been developing for some time.

Quick answer: Nichrome heating elements most commonly fail because of excessive element temperature, oxidation, localized hot spots, repeated thermal cycling, incorrect electrical loading, poor coil geometry or support, corrosive contamination, and weak electrical or mechanical connections.

In many cases, replacing the wire without correcting the underlying cause simply leads to another premature failure.

This guide explains the eight most common causes of Nichrome heating element failure, how to identify them, and what engineers and maintenance teams can do to extend heating coil service life.

What Causes a Nichrome Heating Element to Fail?

The eight most common causes are:

1. Excessive operating temperature or surface load

2. Oxidation and deterioration of the protective oxide layer

3. Localized hot spots

4. Frequent thermal cycling and thermal shock

5. Incorrect wire diameter, resistance, voltage, or power

6. Improper coil spacing, sagging, or insufficient support

7. Chemical contamination and corrosive furnace atmospheres

8. Poor terminal connections, vibration, and mechanical stress

These causes often interact.

For example, excessive temperature accelerates oxidation. Oxidation gradually reduces the effective cross-section of the wire. The thinner section develops higher local resistance, creating a hot spot. The hot spot then becomes even hotter and oxidizes faster until the coil finally burns through.

Understanding this chain reaction is essential when troubleshooting premature element failure.

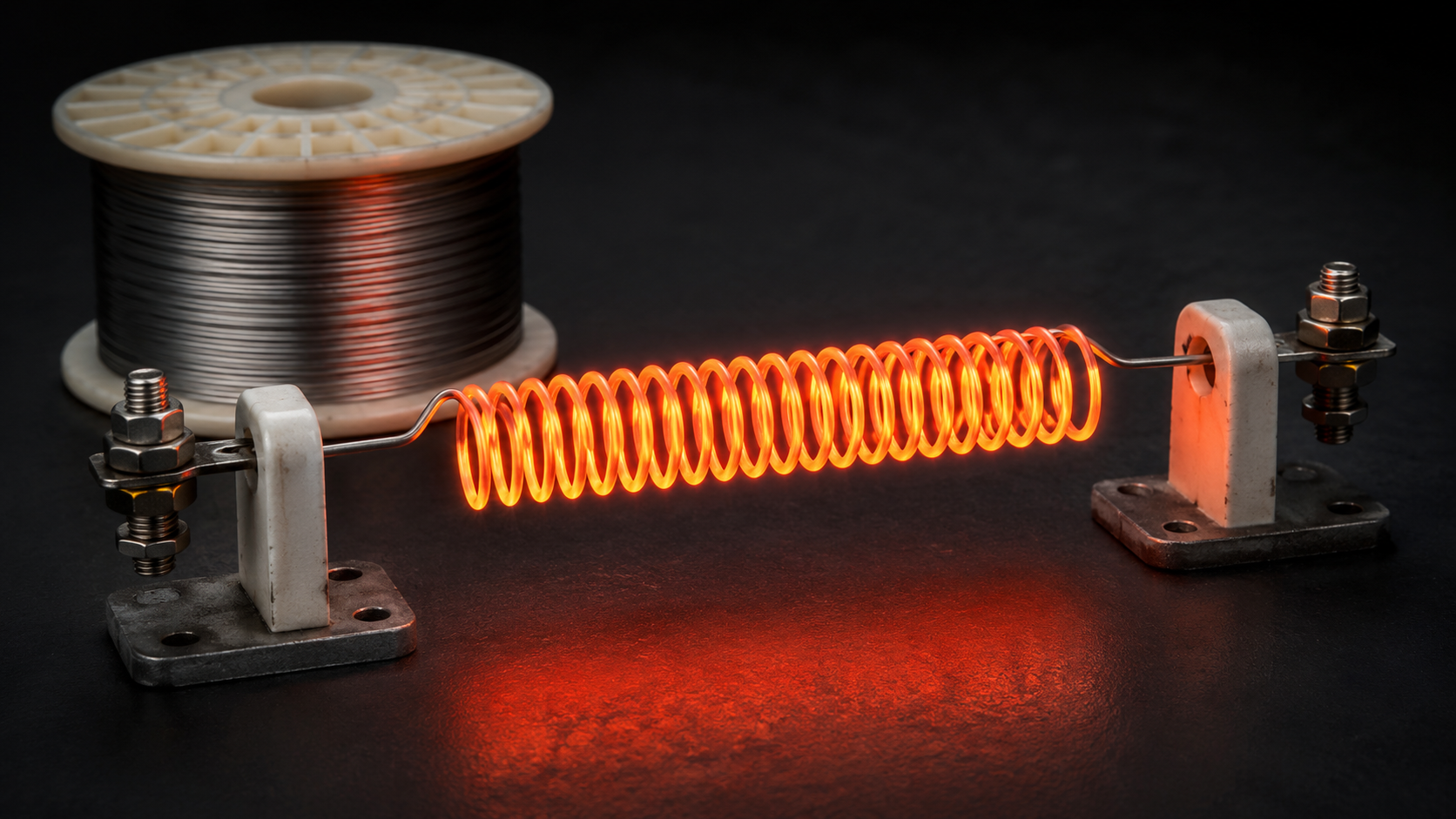

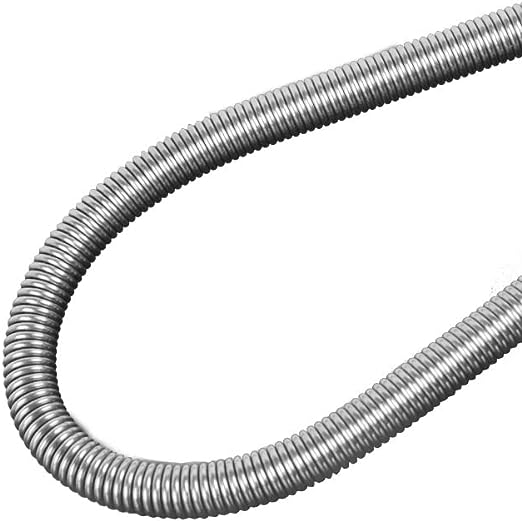

How Nichrome Heating Elements Work

Nichrome is a family of nickel-chromium resistance alloys commonly used for electrical heating.

When electric current passes through the wire, electrical resistance converts electrical energy into heat through Joule heating.

The basic electrical relationships are:

P = V × I

P = I⊃2;R

P = V⊃2; / R

Where:

• P = power

• V = voltage

• I = current

• R = electrical resistance

Wire resistance can also be described approximately by:

R = ρL / A

Where:

• ρ = electrical resistivity of the alloy

• L = wire length

• A = wire cross-sectional area

This relationship is particularly important when diagnosing heating-element failure.

If oxidation, corrosion, wear, or mechanical damage reduces the cross-sectional area of one small section of wire, the resistance of that section rises.

The damaged section can then generate more localized heat than the surrounding wire.

That is how a tiny defect can develop into a destructive hot spot.

1. Excessive Operating Temperature or Surface Load

Excessive element temperature is one of the most important causes of premature Nichrome failure.

There is a major difference between:

• furnace temperature,

• heated-air temperature,

• workpiece temperature, and

• actual heating-wire surface temperature.

A furnace may operate at 800°C while the Nichrome wire itself is considerably hotter.

This distinction is often overlooked.

Why excessive temperature damages Nichrome

As wire temperature increases:

• oxidation accelerates,

• creep and deformation become more severe,

• the protective oxide scale experiences more stress,

• metal strength decreases,

• coil sagging becomes more likely,

• and element life falls rapidly.

A wire operating continuously close to its practical temperature limit will normally have a much shorter service life than the same alloy operated at a lower element temperature.

Surface load matters as much as total wattage

Heating-element designers frequently evaluate surface loading, also called surface watt density.

For a round resistance wire:

Surface Load = Power / Wire Surface Area

For a round wire with diameter d and heated length L:

Surface Area = π × d × L

A higher watt density means more heat must leave each unit of wire surface.

If heat cannot escape fast enough, wire temperature rises.

That is why the same Nichrome coil may operate successfully in strong forced airflow but overheat severely if the airflow becomes restricted.

Common causes of excessive element temperature

These include:

• watt density that is too high,

• insufficient wire length,

• wire diameter that is too small,

• incorrect supply voltage,

• restricted airflow,

• blocked filters,

• failed cooling fans,

• poor heat transfer,

• insulation surrounding an element designed for open air,

• or operating the heater above its original design power.

Typical warning signs

Look for:

• the entire coil glowing much brighter than normal,

• rapid discoloration,

• progressive sagging,

• repeated element burnout,

• abnormal temperature rise after an airflow change,

• or dramatically shorter coil life after increasing heater power.

How to prevent it

Reduce the actual element temperature rather than focusing only on furnace setpoint.

Possible solutions include:

• increasing wire diameter,

• increasing total wire length,

• reducing electrical load,

• improving airflow,

• increasing radiating surface area,

• reducing watt density,

• or choosing a more appropriate heating alloy.

2. Oxidation and Breakdown of the Protective Chromium Oxide Layer

Nichrome survives high-temperature operation largely because chromium in the alloy forms a protective oxide layer on the wire surface.

This chromium-rich oxide helps slow further oxidation of the underlying metal.

However, the protective layer is not permanent.

During long-term operation it can:

• grow,

• crack,

• flake,

• evaporate,

• become contaminated,

• or repeatedly reform after thermal cycling.

Every time fresh metal is exposed, additional chromium is consumed to recreate the protective surface.

Over time, this contributes to loss of metallic cross-section.

Why oxidation eventually causes failure

Imagine a 1.0 mm wire gradually becoming thinner in one location.

Because electrical resistance increases when cross-sectional area decreases, that thinner area develops higher local resistance.

The result is a positive feedback loop:

Oxidation → thinner wire → higher local resistance → higher local temperature → faster oxidation → eventual burnout

This is why failed Nichrome coils often appear noticeably thinner near the point of fracture.

Oxidation becomes more severe when:

• element temperature is too high,

• heating and cooling cycles are frequent,

• wire diameter is very small,

• the protective oxide layer is mechanically damaged,

• the process atmosphere contains harmful contaminants,

• or deposits prevent uniform heat dissipation.

How to reduce oxidation-related failure

Keep the element within the recommended operating conditions for the selected NiCr grade.

Also avoid unnecessarily aggressive on/off cycling and keep the heating chamber clean.

In high-temperature applications, a thicker wire can also offer a longer potential life because more alloy material is available relative to its exposed surface area.

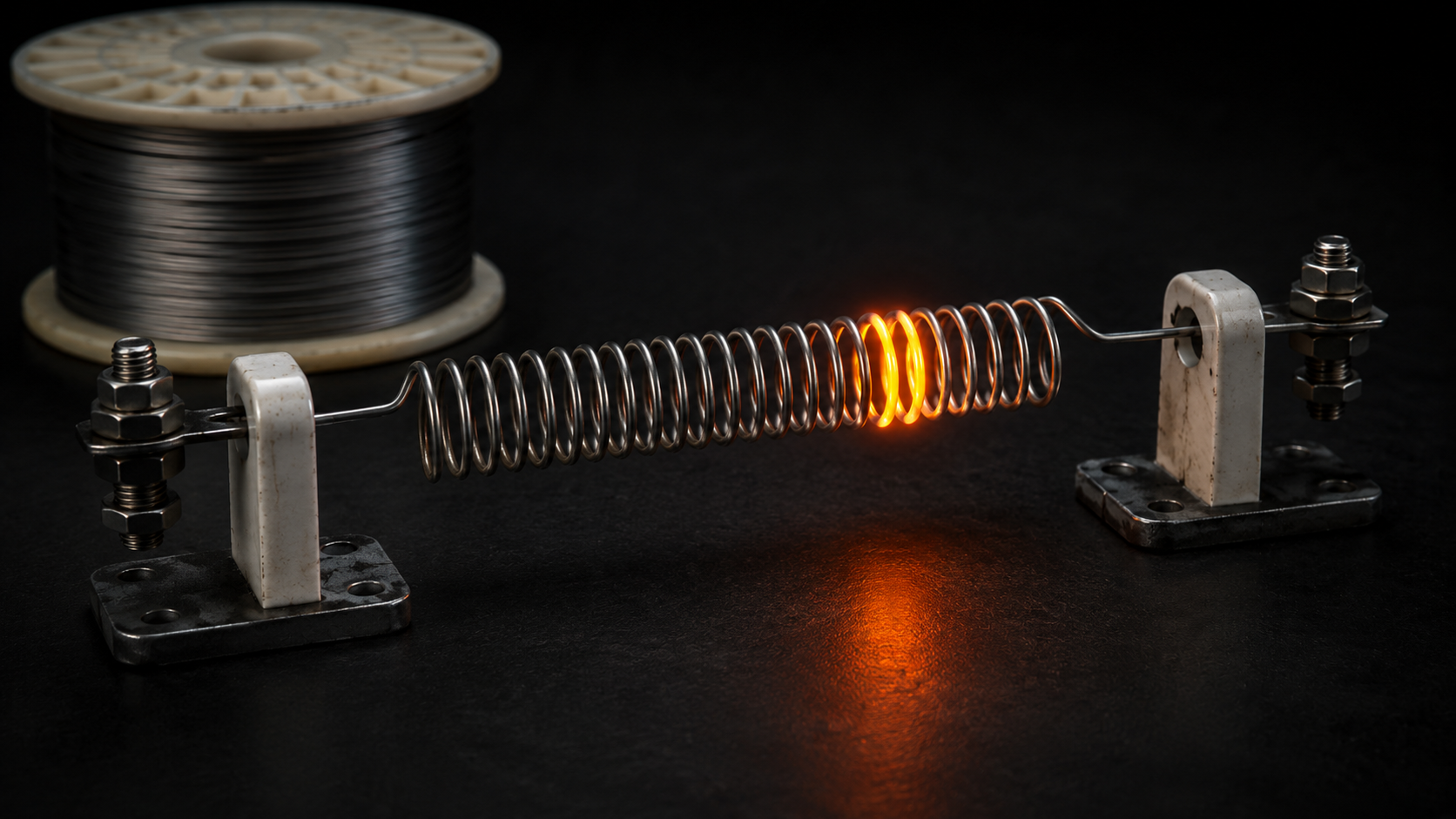

3. Localized Hot Spots

A hot spot is a small section of heating wire operating at a significantly higher temperature than the rest of the element.

It is one of the clearest warning signs of an approaching coil failure.

A localized section may glow orange or yellow while the rest of the coil remains dull red.

That bright section should not be ignored.

Why hot spots form

Hot spots can result from:

• local reduction in wire diameter,

• oxidation,

• corrosion,

• damaged wire,

• kinks or scratches,

• uneven coil spacing,

• coil turns touching,

• poor airflow,

• deposits on part of the element,

• damaged support ceramics,

• or poor electrical connections.

Consider a section of wire whose diameter has been reduced by oxidation.

Since:

R = ρL / A

a reduction in area increases resistance.

Because resistive heating is related to current and resistance:

P = I⊃2;R

the damaged section can produce disproportionately high local heating.

Higher temperature then accelerates oxidation at exactly the same location.

This creates a self-reinforcing failure mechanism.

Warning signs of hot-spot formation

Inspect the element for:

• one unusually bright section,

• local thinning,

• irregular coil pitch,

• warped supports,

• adjacent turns touching,

• deposits on the wire,

• or a fracture directly beside a previously discolored area.

What to do when a hot spot appears

Do not simply wait for the element to break.

Determine why that section is hotter.

Check:

• coil spacing,

• airflow,

• electrical load,

• support condition,

• local contamination,

• wire diameter,

• and terminal resistance.

A hot spot is usually a symptom of another problem.

4. Frequent Thermal Cycling and Thermal Shock

Every time a heating element is powered on, Nichrome expands.

Every time it cools, it contracts.

The metal and its oxide layer do not respond to temperature changes in exactly the same way.

Repeated heating and cooling therefore creates mechanical and thermal stress.

Over hundreds or thousands of cycles, these stresses can contribute to:

• oxide cracking,

• oxide spalling,

• metal fatigue,

• deformation,

• loss of coil geometry,

• and eventual fracture.

Why rapid cycling is especially damaging

A heater operating steadily at a controlled temperature can sometimes experience less stress than one repeatedly switched from cold to full power.

Aggressive on/off control may subject the element to thousands of large temperature swings.

The problem becomes worse when the heating and cooling rate is extremely fast.

How to extend life in cyclic applications

Whenever the process allows:

• avoid unnecessary full-power on/off switching,

• use properly tuned temperature control,

• reduce overshoot,

• limit extremely rapid temperature ramps,

• and avoid sudden cooling of a red-hot element.

For applications that inherently require frequent cycling, material selection and coil support become even more important.

5. Incorrect Wire Diameter, Resistance, Voltage, or Power

A surprisingly large number of heating-element failures start before the heater is ever switched on.

The root cause is incorrect electrical design.

Nichrome wire should not be selected by diameter alone.

The designer must consider:

• supply voltage,

• required power,

• target resistance,

• alloy resistivity,

• wire diameter,

• wire length,

• operating temperature,

• surface loading,

• and heat-transfer conditions.

Example: resistance required for a 2 kW heater

For a heater operating at 240 V and 2,000 W:

R = V⊃2; / P

R = 240⊃2; / 2000

R = 28.8 Ω

The selected Nichrome wire diameter and length must produce approximately the required resistance while also maintaining acceptable surface loading.

Using a shorter or thinner wire simply because it physically fits the heater may result in excessive temperature.

Why thinner wire often fails faster

Thin wire provides:

• higher resistance per unit length,

• less metallic cross-section,

• less material available to tolerate oxidation,

• and generally greater sensitivity to small dimensional changes.

Very thin wire can therefore be particularly vulnerable in high-temperature, long-life applications.

Voltage errors are especially dangerous

Because:

P = V⊃2; / R

even a moderate increase in voltage can significantly increase heater power.

Always verify actual supply voltage rather than relying only on the nominal equipment rating.

6. Poor Coil Spacing, Sagging, and Insufficient Support

A Nichrome coil is not only an electrical component.

It is also a mechanical structure operating at high temperature.

Coil geometry affects:

• heat distribution,

• radiation,

• airflow,

• expansion,

• mechanical stability,

• and electrical isolation.

What happens when coil spacing is incorrect?

If turns are packed too closely, neighboring sections can radiate heat into each other.

This reduces local heat dissipation and raises element temperature.

If the turns eventually touch, current may bypass part of the coil.

That changes the effective resistance and electrical loading of the remaining element.

The result can be extremely uneven heating.

Why Nichrome coils sag

At elevated temperature, the wire becomes mechanically weaker.

Gravity, thermal expansion, insufficient support, and excessive temperature can gradually change the coil shape.

Sagging may allow the coil to:

• touch another coil,

• contact a metal housing,

• move out of the designed airflow,

• or place excessive force on terminals.

Prevention

Use appropriate ceramic supports, grooves, spacers, or insulating hardware.

The element should have enough freedom to expand thermally without being so loose that it can sag or move uncontrollably.

Uniform coil pitch is also important.

If one section is tightly compressed while another is widely stretched, heat distribution will not be uniform.

7. Chemical Contamination and Corrosive Atmospheres

Nichrome performs well in many high-temperature environments, but “oxidation resistant” does not mean “immune to every furnace atmosphere.”

Process contaminants can attack either the protective oxide layer or the alloy itself.

Potentially harmful contaminants may come from:

• sulfur-containing compounds,

• halogens,

• chlorine-containing materials,

• salts,

• fluxes,

• metal vapors,

• oils,

• lubricants,

• cleaning chemicals,

• furnace insulation,

• ceramics,

• or materials being processed.

Why contamination can cause rapid failure

A contaminant may interfere with normal oxide formation or produce a low-melting compound on the element surface.

The resulting attack may be highly localized.

This makes chemical contamination particularly dangerous because the overall coil may look acceptable while one small section is being rapidly damaged.

Signs of contamination

Watch for:

• unusual surface deposits,

• pitting,

• unexpected oxide colors,

• localized corrosion,

• repeated failure in the same furnace zone,

• or dramatically different element life after changing process materials.

Prevention

Before selecting a heating alloy, define the actual process atmosphere.

Do not specify an element based only on maximum temperature.

Important information includes:

• oxidizing or reducing atmosphere,

• presence of sulfur,

• chlorine or halogens,

• carbon potential,

• process vapors,

• humidity,

• and materials that may contact the wire.

8. Poor Terminal Connections, Vibration, and Mechanical Stress

The heating coil itself is not always the original source of failure.

Connections and mechanical loading can create failure points, particularly near the cold ends or terminals.

Why poor electrical connections overheat

A loose, oxidized, or poorly designed terminal has additional electrical resistance.

Electrical resistance at the connection produces heat.

The result can be:

• terminal discoloration,

• overheated connectors,

• oxidation,

• loss of clamping force,

• and eventual fracture near the termination point.

If a heating element consistently breaks close to one terminal, investigate the connection rather than assuming the Nichrome alloy is defective.

Mechanical stress also matters

Common mechanical problems include:

• pulling the wire too tight during installation,

• sharp bends,

• scratches,

• repeated vibration,

• unsupported spans,

• movement during production,

• and differential thermal expansion between the element and its support.

Nichrome is ductile when properly handled, but even a good heating alloy will fail prematurely if the same location is repeatedly bent or mechanically damaged.

Nichrome Heating Element Failure Diagnosis Table

Why Does Nichrome Wire Keep Breaking in the Same Place?

Repeated failure in approximately the same position usually indicates a local condition, not random material failure.

Possible reasons include:

• a support point creating mechanical stress,

• a local hot zone,

• poor airflow,

• contamination,

• excessive radiation from nearby coils,

• an electrical connection,

• or contact with another material.

If three replacement coils all fail in the same area, changing the wire supplier alone is unlikely to solve the problem.

Inspect the surrounding heater design.

Why Do Nichrome Coils Develop Hot Spots Before They Break?

Hot spots often develop because the resistance of a small section increases relative to the rest of the coil.

A common progression is:

1. Local oxidation or damage slightly reduces wire diameter.

2. Local electrical resistance increases.

3. The section runs hotter.

4. Higher temperature accelerates oxidation.

5. The wire becomes even thinner.

6. Local resistance increases further.

7. The section eventually burns open.

This explains why visual inspection of an operating heating element can be extremely useful.

An unusually bright section is often an early warning of future failure.

How to Extend Nichrome Heating Coil Life

Nichrome element life cannot be defined by one universal number of operating hours.

Service life depends on the complete operating system.

However, the following practices can significantly reduce premature failures.

1. Operate below the practical temperature limit

Do not design around the melting point of the alloy.

A resistance wire should normally operate substantially below its melting temperature.

Maximum service temperature is also not automatically the ideal continuous operating temperature.

Lower wire temperature generally means slower oxidation and longer life.

2. Reduce excessive surface loading

If coil life is too short, investigate watt density.

Possible improvements include:

• using thicker wire,

• increasing heated wire length,

• increasing heating surface area,

• improving airflow,

• or reducing total power.

3. Select the correct Nichrome grade

Different NiCr compositions have different combinations of:

• resistivity,

• maximum service temperature,

• oxidation resistance,

• mechanical properties,

• and cost.

For many industrial electric heating applications, NiCr 80/20 (Cr20Ni80) is widely used because of its stable electrical resistance, oxidation resistance, and high-temperature performance.

DLX Alloy supplies NiCr resistance alloys including:

4. Avoid unnecessarily thin wire

If space and electrical design allow it, increasing wire diameter can improve mechanical durability and provide more material to tolerate long-term oxidation.

The final diameter must still satisfy resistance and watt-density requirements.

5. Maintain uniform coil spacing

Avoid compressed turns, stretched sections, and areas where coils can touch.

Uniform coil geometry helps produce uniform heat distribution.

6. Provide adequate high-temperature support

Use suitable ceramic or refractory supports.

Support spacing should prevent sagging without preventing normal thermal expansion.

7. Protect the element from contaminants

Keep oils, process residues, salts, and other contaminants away from the element.

If the process involves aggressive vapors, provide the atmosphere information to the alloy supplier before selecting the material.

8. Improve temperature control

Reduce unnecessary temperature overshoot and aggressive thermal cycling.

Properly tuned PID or proportional control may reduce large thermal excursions compared with uncontrolled switching.

9. Inspect terminal connections

Loose terminals create resistance and localized heating.

Periodically check:

• terminal tightness,

• discoloration,

• oxidation,

• damaged connectors,

• and signs of local overheating.

Infrared inspection can also be useful in industrial installations.

10. Investigate the root cause before replacing failed elements

A burnt element is often a symptom.

Before installing another coil, record:

• where the failure occurred,

• wire condition,

• resistance,

• voltage,

• current,

• process temperature,

• airflow,

• controller behavior,

• and furnace atmosphere.

This information can prevent repeated failures.

Does Thicker Nichrome Wire Last Longer?

Under comparable temperature and environmental conditions, thicker resistance wire can often provide greater potential life because it contains more material relative to its exposed surface area.

It is also mechanically stronger.

However, simply replacing a thin wire with a thicker wire without redesigning the heater is not correct.

Changing wire diameter changes resistance per unit length.

The heater may therefore require a different wire length to maintain the required total resistance and power.

Always recalculate the complete element.

NiCr 80/20 vs NiCr 60/15: Which Is Better for Heating Elements?

Both are established nickel-chromium resistance alloys, but they are used under different requirements.

NiCr 80/20 — Cr20Ni80

Cr20Ni80 is one of the most widely used high-performance Nichrome grades.

Typical advantages include:

• high oxidation resistance,

• stable electrical resistivity,

• good high-temperature performance,

• good ductility,

• and suitability for demanding heating elements.

DLX lists Cr20Ni80 with a resistivity of approximately 1.09 ± 0.05 μΩ·m at 20°C and a maximum service temperature of approximately 1200°C, depending on application conditions.

For high-temperature heating applications, see DLX Cr20Ni80 NiCr 80/20 Heating Wire.

NiCr 60/15 — Cr15Ni60

Cr15Ni60 contains less nickel and is commonly considered where cost and operating-temperature requirements are lower.

DLX lists a maximum service temperature around 1150°C for Cr15Ni60.

The correct choice depends on:

• operating temperature,

• required resistivity,

• duty cycle,

• heating atmosphere,

• desired element life,

• and budget.

For critical industrial applications, selecting the alloy only by price per kilogram can result in higher lifetime operating costs if element replacements and downtime increase.

When Should You Replace a Nichrome Heating Element?

Consider replacement when you observe:

• visible thinning,

• severe oxidation,

• persistent bright hot spots,

• significant sagging,

• coil-to-coil contact,

• cracked or damaged wire,

• unstable heating performance,

• major resistance drift,

• overheated terminals,

• or repeated circuit interruptions.

Do not attempt to keep a severely damaged industrial heating element operating simply because electrical continuity is still present.

A weak section may fail unexpectedly.

Can a Broken Nichrome Heating Wire Be Repaired?

A broken Nichrome element can sometimes be physically joined using specialized high-temperature joining methods, depending on the equipment and element design.

However, repairing a burned-out section is often not a permanent solution.

If the original break was caused by:

• oxidation,

• excessive watt density,

• local overheating,

• contamination,

• or incorrect electrical loading,

the underlying problem still exists.

The repaired location may also introduce different resistance or mechanical characteristics.

For industrial equipment, identifying the root cause and replacing or redesigning the element is generally more reliable than repeatedly repairing burnout points.

FAQs About Nichrome Heating Element

1.Why does Nichrome wire break?

Nichrome wire usually breaks because oxidation, overheating, mechanical stress, corrosion, or thermal cycling gradually weakens a section of the wire. Once the local cross-section becomes too small, resistance and temperature rise at that point until the wire burns open.

2.Why does my Nichrome coil keep burning out?

Repeated burnout usually indicates an unresolved heater problem such as excessive watt density, incorrect voltage, restricted airflow, hot spots, poor coil support, contamination, or incorrect wire sizing.

3.Does Nichrome oxidize?

Yes. Nichrome forms a chromium-rich oxide layer when heated in air. This layer helps protect the underlying alloy, but long-term oxidation still occurs, especially at high temperature or under severe thermal cycling.

4.What causes a hot spot in Nichrome wire?

Hot spots are commonly caused by local resistance increases, wire thinning, oxidation, contamination, poor airflow, uneven coil spacing, damaged wire, or poor connections.

5.Is NiCr 80/20 good for heating elements?

Yes. NiCr 80/20, also known as Cr20Ni80, is widely used for industrial heating elements because it combines high electrical resistivity, oxidation resistance, high-temperature capability, and good mechanical workability.

6.Does thicker Nichrome wire last longer?

Thicker wire can provide longer potential life under comparable conditions because it has more metallic cross-section and greater mechanical strength. However, changing diameter changes electrical resistance, so the entire heater design must be recalculated.
