ERNiCrMo-3 vs ERNiCrMo-4 vs ERNiCrMo-13: Filler Metal Selection Guide

Selecting a nickel-based filler metal can feel like choosing three nearly identical keys in front of a locked door. ERNiCrMo-3, ERNiCrMo-4 and ERNiCrMo-13 all contain nickel, chromium and molybdenum. All three resist corrosion, and all three can join demanding alloys. But only one may be the right key for your particular combination of base metal, corrosive medium, temperature and welding process.

The short version is simple: ERNiCrMo-3 is the versatile Alloy 625-type filler, ERNiCrMo-4 is the C276-type filler for severe chemical environments, and ERNiCrMo-13 is the low-carbon Alloy 59-type filler for exceptionally aggressive mixed-media corrosion.

That does not mean the grade with the most molybdenum automatically wins. The correct nickel alloy welding wire must be compatible with the base materials, retain the required properties after dilution and satisfy the approved welding procedure specification, or WPS.

This guide compares their chemistry, corrosion behavior, applications, weldability and available product forms. It also explains how DLX Alloy can help buyers specify nickel-based welding wire without reducing the decision to a grade name and diameter.

Quick Answer: Which Nickel Alloy Filler Metal Should You Choose?

Choose ERNiCrMo-3 welding wire when you need a versatile filler for Alloy 625, Alloy 825, 6% molybdenum stainless steels, 9% nickel steel, marine components, overlays or many dissimilar joints. It provides an effective balance of strength, localized corrosion resistance and broad base-metal compatibility.

Choose ERNiCrMo-4 welding wire when welding UNS N10276 or when the joint must resist severe reducing chemicals, chlorides and mixed chemical-process conditions. Its high molybdenum and tungsten content makes it particularly valuable for C276 equipment and corrosion-resistant cladding.

Choose ERNiCrMo-13 welding wire when welding UNS N06059 or when very low carbon, low iron, high chromium and high molybdenum are important. It is designed for highly aggressive oxidizing and reducing environments, contaminated acids and applications demanding strong resistance to localized attack.

Here is the essential selection table:

This table is a starting point, not an engineering approval. The process medium, concentration, temperature, contaminants, crevice geometry and expected dilution must still be reviewed.

What Are ERNiCrMo Nickel-Based Filler Metals?

ERNiCrMo filler metals are bare nickel-chromium-molybdenum electrodes and rods classified under AWS A5.14/A5.14M. The current AWS specification covers chemical composition, classification, testing, sizes, packaging and application guidance for nickel and nickel-alloy bare welding products. Buyers should state the required standard edition on the purchase order because standards can be revised over time. The current specification is available from the American Welding Society.

These consumables are commonly supplied as nickel alloy TIG rods, MIG welding wire and other bare welding forms. Related strip electrodes use a different classification designator, so “welding wire” and “welding strip” should not be treated as interchangeable procurement terms.

How to Read an ERNiCrMo Classification

The AWS name contains useful information:

• ER means the product may be used as an electrode or welding rod within the applicable classification.

• Ni identifies nickel as the principal alloy family.

• Cr indicates chromium.

• Mo indicates molybdenum.

• 3, 4 or 13 identifies a particular chemical composition within the Ni-Cr-Mo group.

The final number is an index, not a quality ranking. ERNiCrMo-13 is not automatically “thirteen-level” material or universally better than ERNiCrMo-3.

ER, Ni, Cr, Mo and the Classification Number Explained

You will also encounter UNS and ISO designations:

Commercial alloy names can be registered trademarks. For technical purchasing, use the AWS classification, UNS number, applicable standard and required product form rather than relying on a trade name alone.

⭐ERNiCrMo-3 vs ERNiCrMo-4 vs ERNiCrMo-13 at a Glance

The three grades follow different alloying strategies.

ERNiCrMo-3 uses approximately 625-type chemistry: relatively high chromium, moderate molybdenum and a controlled niobium-plus-tantalum addition. Think of it as the all-rounder. It combines corrosion resistance with useful mechanical strength over a broad range of applications.

ERNiCrMo-4 takes another route. It contains substantially more molybdenum, adds tungsten and permits more iron, while chromium is lower than in ERNiCrMo-3 and ERNiCrMo-13. This chemistry reflects the C276 alloy family and performs well in many severe chemical-processing environments.

ERNiCrMo-13 combines high chromium with high molybdenum while keeping carbon and iron very low. It contains no required tungsten addition. This makes it particularly attractive where both localized corrosion and resistance across changing oxidizing and reducing conditions matter.

Chemical Composition Comparison

The following values summarize commonly used AWS A5.14 classification limits. Always verify the exact edition required by the contract and compare it with the manufacturer’s lot certificate.

·ERNiCrMo-3 Chemistry and the Role of Niobium

ERNiCrMo-3 contains about 20–23% chromium and 8–10% molybdenum, together with 3.15–4.15% niobium plus tantalum. Chromium supports general corrosion and oxidation resistance, while molybdenum improves resistance to pitting and crevice corrosion.

Niobium contributes to solid-solution strengthening and helps the deposited metal maintain useful strength without a separate precipitation-hardening treatment. This balanced composition is one reason ERNiCrMo-3 nickel alloy welding wire appears in such a wide range of welding specifications.

The manufacturer data for INCONEL Filler Metal 625 lists uses including Alloy 625, Alloy 825, high-alloy austenitic stainless steels, 9% nickel steel, steel surfacing and dissimilar joints.

·ERNiCrMo-4 Chemistry and the Role of Tungsten

ERNiCrMo-4 increases molybdenum to 15–17% and contains 3–4.5% tungsten. These elements support resistance in aggressive reducing acids and chloride-containing process environments.

Its chromium range of 14.5–16.5% is lower than that of the other two grades, but this should not be interpreted as generally inferior corrosion resistance. Corrosion is not a one-dimensional race. Molybdenum, tungsten, chromium, iron, weld dilution, microstructure and the actual chemical medium all influence performance.

The grade is normally associated with C276 and UNS N10276. Published ERNiCrMo-4 technical data describes its use for joining nickel-chromium-molybdenum alloys to themselves, steel and other nickel alloys, as well as for cladding steel.

·ERNiCrMo-13 Chemistry and Its Low-Iron Design

ERNiCrMo-13 contains 22–24% chromium and 15–16.5% molybdenum. It also has a maximum carbon content of 0.010% and a maximum iron content of 1.5%.

That combination is the main story behind this filler. High chromium helps in oxidizing conditions, high molybdenum supports resistance to localized and reducing corrosion, and the low-carbon specification reduces the risk of chromium-depleted regions associated with carbide precipitation.

ERNiCrMo-13 is associated with UNS N06059. It is used for welding that alloy to itself, to steel and to other nickel-based alloys, and it can be considered for corrosion-resistant cladding when the procedure is properly qualified.

❓Why Chromium, Molybdenum, Tungsten and Niobium Matter

A useful simplified analogy is to imagine the weld deposit as a defensive team:

• Chromium helps build and repair the passive surface film.

• Molybdenum strengthens resistance against localized attack and many reducing media.

• Tungsten supports the corrosion-resistant alloy system used in ERNiCrMo-4.

• Niobium helps provide strength and stability in ERNiCrMo-3.

• Low carbon helps preserve corrosion resistance around weld-affected microstructures.

No single player wins the game. The performance comes from the complete alloy system and the condition in which it is used.

Corrosion Resistance Comparison

Resistance to Pitting and Crevice Corrosion

All three fillers resist localized corrosion, but they are not equal in every chloride environment.

ERNiCrMo-3 provides strong, practical resistance for marine fabrication, offshore equipment, pollution-control systems and many stainless-steel overmatching applications.

ERNiCrMo-4 contains much more molybdenum and adds tungsten. It is normally preferred when a C276 weld deposit or severe chemical resistance is required.

ERNiCrMo-13 combines high chromium and molybdenum with very low carbon and iron. It can offer an especially strong option for highly aggressive environments where chloride attack occurs together with oxidizing contaminants.

Actual pitting and crevice performance depends on temperature, chloride concentration, acidity, oxidizing species, surface condition and crevice geometry. A grade name alone cannot predict service life.

Performance in Reducing, Oxidizing and Mixed Acids

For severe reducing media, ERNiCrMo-4 is frequently the logical starting point because of its high molybdenum and tungsten content.

For mixed oxidizing and reducing environments, ERNiCrMo-13 may have an advantage because it combines approximately 23% chromium with approximately 16% molybdenum. It is often considered for chemical-processing systems exposed to changing or contaminated media.

ERNiCrMo-3 remains a capable general-purpose corrosion-resistant filler, but it should not automatically replace ERNiCrMo-4 or ERNiCrMo-13 when the base alloy was selected specifically for extreme acid service.

Laboratory corrosion data should match the expected plant conditions. A result in pure acid at room temperature may say very little about hot acid contaminated with chlorides, ferric ions or dissolved oxidants.

Performance in Seawater and Chloride Environments

ERNiCrMo-3 is widely used in marine and seawater-related fabrication because it offers a practical balance of strength, pitting resistance, availability and welding compatibility.

ERNiCrMo-4 or ERNiCrMo-13 may provide higher alloy content, but using a more highly alloyed filler is not automatically necessary. Cost, galvanic behavior, base-metal compatibility and qualified procedure data also matter.

If the joint involves Alloy 625, 6Mo stainless steel or a dissimilar marine assembly, ERNiCrMo-3 is often the first filler evaluated. If the equipment handles hot, acidic brine or highly contaminated chloride media, ERNiCrMo-4 and ERNiCrMo-13 deserve closer investigation.

Why PREN Alone Cannot Select a Nickel Filler Metal

Pitting resistance equivalent numbers can be useful as a rough comparison tool, particularly for stainless steels. However, a PREN calculation should not be the sole selection method for Ni-Cr-Mo weld metal.

Different formulas treat tungsten and nitrogen differently. PREN also does not fully represent reducing-acid resistance, weld segregation, dilution, iron pickup, surface condition or phase stability. Use it as one clue, not as the final verdict.

Mechanical and Temperature Performance

ERNiCrMo-3 is well known for strong weld deposits and broad temperature capability. AWS application guidance has historically identified it for service from cryogenic temperatures to approximately 1000°F, or 540°C, subject to the base material, design code and qualified procedure.

ERNiCrMo-4 and ERNiCrMo-13 are often selected primarily for corrosion resistance rather than because they provide the highest possible elevated-temperature strength. Their usable temperature cannot be reduced to one universal number. The corrosive medium, exposure time, base metal, heat treatment, stress and applicable construction code all influence the permitted limit.

Do not compare tensile values from unrelated product data sheets as if they were guaranteed under identical conditions. Welding process, shielding gas, heat input, specimen condition and test temperature can change reported results. Request the relevant certificate and procedure qualification record when mechanical performance is critical.

Filler Metal Selection for Dissimilar Welding

Dissimilar welding is where “match the base metal” stops being a complete answer. The weld pool receives alloying elements from both base materials and the filler. The final deposit is therefore a new chemical mixture.

Nickel Alloy to Stainless Steel

ERNiCrMo-3 is frequently used for many nickel-alloy-to-stainless-steel joints because its nickel-rich matrix tolerates dilution and its chromium, molybdenum and niobium support corrosion resistance and strength.

For a C276-to-stainless joint in severe chemical service, ERNiCrMo-4 may be selected to avoid under-alloying the weld. For N06059 equipment, ERNiCrMo-13 may be required to preserve the intended corrosion resistance.

The less-corrosion-resistant side of the joint, however, can still control total equipment life. A highly alloyed filler cannot magically turn ordinary stainless steel into Alloy 59.

Nickel Alloy to Carbon or Low-Alloy Steel

Nickel-based filler metals are often useful for joining nickel alloys to steel because their austenitic nickel-rich deposits can accommodate differences in composition and thermal behavior.

ERNiCrMo-3 is a common starting point for general dissimilar joints. ERNiCrMo-4 and ERNiCrMo-13 become more relevant when corrosion equivalence, overlay chemistry or a specific nickel-alloy side governs the design.

The steel side may introduce substantial iron into the first weld layer. This is particularly important for corrosion-resistant overlays, where several layers may be needed before the surface chemistry meets the specification.

How Weld Dilution Changes the Final Deposit

Suppose a filler contains 16% molybdenum, but the weld pool receives a large amount of iron-rich base metal. The finished deposit will not retain the original wire chemistry. The filler certificate tells you what entered the arc; it does not by itself tell you the chemistry of the diluted weld.

For overlays, evaluate:

1. Base-metal composition.

2. Expected dilution by process and layer.

3. Number of deposited layers.

4. Final surface chemistry.

5. Ferric chloride, intergranular or project-specific corrosion tests.

6. WPS and procedure qualification results.

This is one reason DLX Alloy recommends selecting nickel welding wire from the complete application data rather than from a grade comparison chart alone.

Common Filler Metal Selection Mistakes

The most frequent mistakes include:

1. Assuming the highest alloy content is always best. A more highly alloyed filler can increase cost without solving the real failure mechanism.

2. Treating ERNiCrMo-3 as universal. It is versatile, but it does not automatically provide matching C276 or Alloy 59 weld chemistry.

3. Ignoring dilution. Wire composition and final weld composition are not the same.

4. Selecting only by trade name. Use AWS, UNS or ISO designations and specify the applicable standard.

5. Confusing bare wire with covered electrodes. ERNiCrMo and ENiCrMo classifications cover different product types.

6. Using generic mechanical values. Request lot-specific or procedure-specific data.

7. Ignoring the process medium. “Chemical service” is too vague; identify temperature, concentration and contaminants.

8. Buying by price per kilogram alone. Poor feeding, surface contamination or missing traceability can cost far more than the initial saving.

9. Failing to check lead time. Specialized ERNiCrMo-13 sizes may require more planning than standard ERNiCrMo-3 wire.

10. Changing filler without reviewing the WPS. A commercial substitute is not necessarily a code-qualified substitute.

How to Order Nickel Alloy Welding Wire

A complete request for quotation should include:

• AWS classification

• UNS or ISO designation when required

• Applicable AWS/ASME specification and edition

• Product form: TIG rod, MIG wire, SAW wire or strip

• Diameter or strip dimensions

• Rod length, spool type and package weight

• Required quantity

• Base-metal grades

• Welding process

• Intended service environment

• Required certificate type

• Heat or lot traceability

• Chemical and mechanical test requirements

• Corrosion-test requirements, if any

• Inspection or third-party witnessing requirements

• Delivery destination and schedule

For example:

ERNiCrMo-4 nickel alloy MIG wire, AWS A5.14, 1.2 mm diameter, precision-layer wound, heat-lot traceable, with chemical certificate and specified spool packaging, for welding UNS N10276 chemical-process piping.

That request is far more useful than “Please quote C276 wire.”

Why Source Nickel-Based Welding Wire from DLX Alloy?

DLX Alloy approaches nickel alloy welding wire as an engineering supply item, not simply a metal sold by weight. The grade printed on the label is only one part of the purchase. Reliable sourcing also requires the correct form, dimensions, surface condition, packaging and documentation.

When discussing ERNiCrMo-3, ERNiCrMo-4 or ERNiCrMo-13 with DLX Alloy, buyers can identify the base metal, welding process, service medium and documentation requirements before finalizing the order. This application-first approach helps reduce classification errors and avoids confusing TIG rod, MIG wire, SAW wire and overlay strip.

DLX Alloy can be positioned as a focused source for nickel-based welding consumables, including:

• ERNiCrMo-3 Alloy 625-type welding wire

• ERNiCrMo-4 C276-type welding wire

• ERNiCrMo-13 Alloy 59-type welding wire

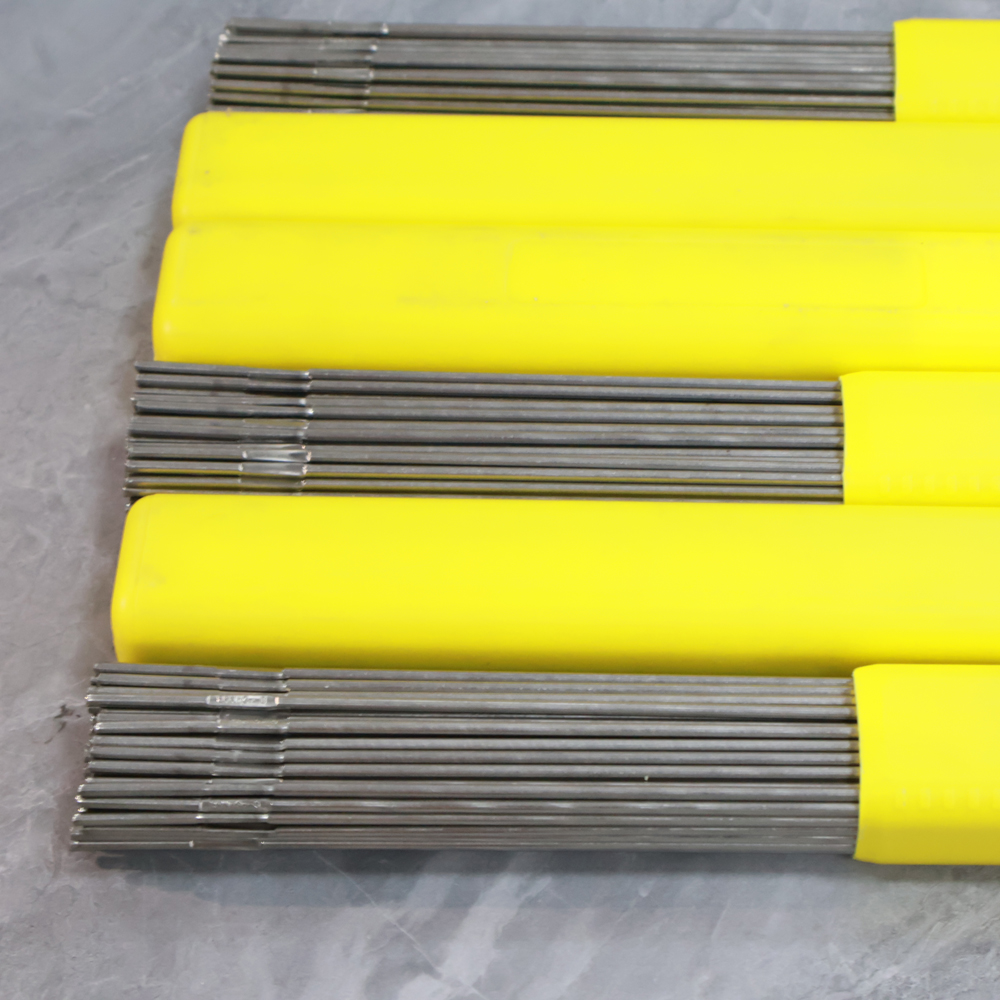

• Nickel alloy TIG welding rods

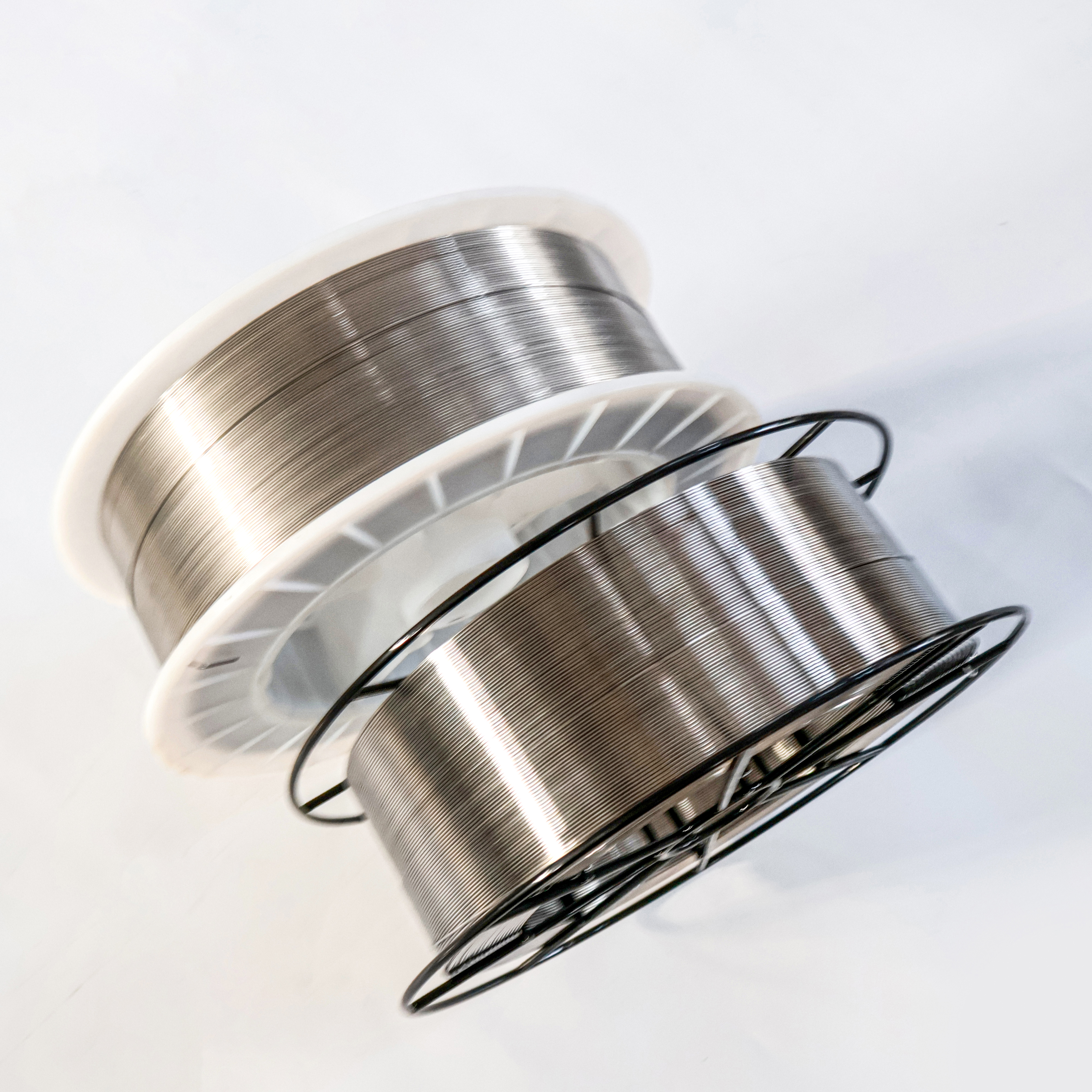

• Nickel alloy MIG welding wire

• Corrosion-resistant welding consumables

• Nickel alloy wire for dissimilar welding

• Welding wire for chemical, marine and industrial equipment

Before publication, DLX Alloy should add its actual available diameters, spool sizes, certifications, minimum order quantities and delivery capabilities.

A Five-Step Filler Metal Selection Process

Use this process when the answer is not obvious:

Step 1: Identify Both Base Metals

Record their exact UNS, ASTM, ASME or EN designations. “Hastelloy,” “Inconel” or “stainless steel” is not specific enough.

Step 2: Define the Service Environment

List chemicals, concentrations, temperature, pressure, chlorides, oxidants, shutdown conditions and potential crevices.

Step 3: Determine the Governing Requirement

Ask whether the weld is controlled by matching corrosion resistance, mechanical strength, high-temperature performance, impact toughness or dissimilar-metal compatibility.

Step 4: Evaluate Process and Dilution

Review GTAW, GMAW, SAW or overlay dilution. Estimate the deposited chemistry and confirm it through procedure qualification when required.

Step 5: Verify the WPS and Purchasing Documents

Confirm the classification, standard edition, wire form, dimensions, certificates and lot traceability. Then request a quotation from DLX Alloy using a complete technical description.

Conclusion

ERNiCrMo-3, ERNiCrMo-4 and ERNiCrMo-13 are not three interchangeable versions of the same nickel alloy welding wire. ERNiCrMo-3 is the versatile 625-type option for broad joining, marine, overlay and dissimilar-welding applications. ERNiCrMo-4 is the C276-type filler built around high molybdenum and tungsten for severe chemical service. ERNiCrMo-13 is the low-carbon, low-iron Alloy 59-type filler combining high chromium and molybdenum for exceptionally aggressive mixed environments.

Start with the base metals and service conditions, then consider dilution, welding process and the approved WPS. For product form, documentation and supply discussions, contact DLX Alloy with the complete application details. That approach is safer—and usually more economical—than selecting the most expensive alloy and hoping it is the right one.

FAQs

1. Is ERNiCrMo-13 better than ERNiCrMo-3 and ERNiCrMo-4?

Not universally. ERNiCrMo-13 offers high chromium, high molybdenum and very low carbon, making it valuable in highly aggressive mixed environments. ERNiCrMo-3 may be better for Alloy 625, general dissimilar joints and broad temperature requirements, while ERNiCrMo-4 is normally the matching choice for C276.

2. Can ERNiCrMo-3 be used to weld C276?

It may be technically possible in some dissimilar or nonmatching applications, but it does not provide the same C276-type chemistry as ERNiCrMo-4. If matching corrosion performance is required, ERNiCrMo-4 is usually the safer starting point. The final decision must follow the project specification and qualified WPS.

3. What is the difference between ERNiCrMo-4 and ERNiCrMo-13?

ERNiCrMo-4 contains approximately 15–17% molybdenum, 3–4.5% tungsten and 14.5–16.5% chromium. ERNiCrMo-13 contains approximately 15–16.5% molybdenum and 22–24% chromium, with very low carbon and iron but no required tungsten. ERNiCrMo-4 matches C276, while ERNiCrMo-13 matches Alloy 59.

4. Which nickel welding wire is best for stainless-steel-to-nickel-alloy welding?

ERNiCrMo-3 is a common starting point because of its broad compatibility, strength and corrosion resistance. However, ERNiCrMo-4 or ERNiCrMo-13 may be necessary when the nickel-alloy side or service environment demands matching C276 or Alloy 59-type corrosion performance.

5. What information should I send DLX Alloy for a quotation?

Provide the AWS grade, welding process, required diameter, TIG rod or MIG spool form, package size, quantity, base metals, service conditions, certificate requirements and delivery destination. For overlays, also state the process, strip or wire dimensions, required surface chemistry and expected number of layers.
