Ni200 Ni201 N4 N6
DLX
Bright
10-25 days
Product Description

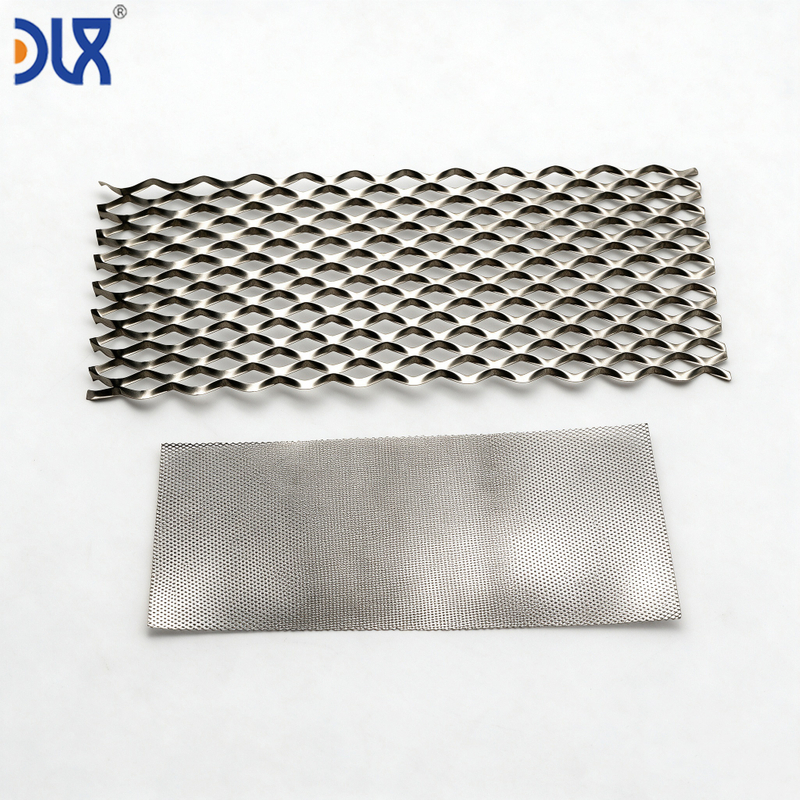

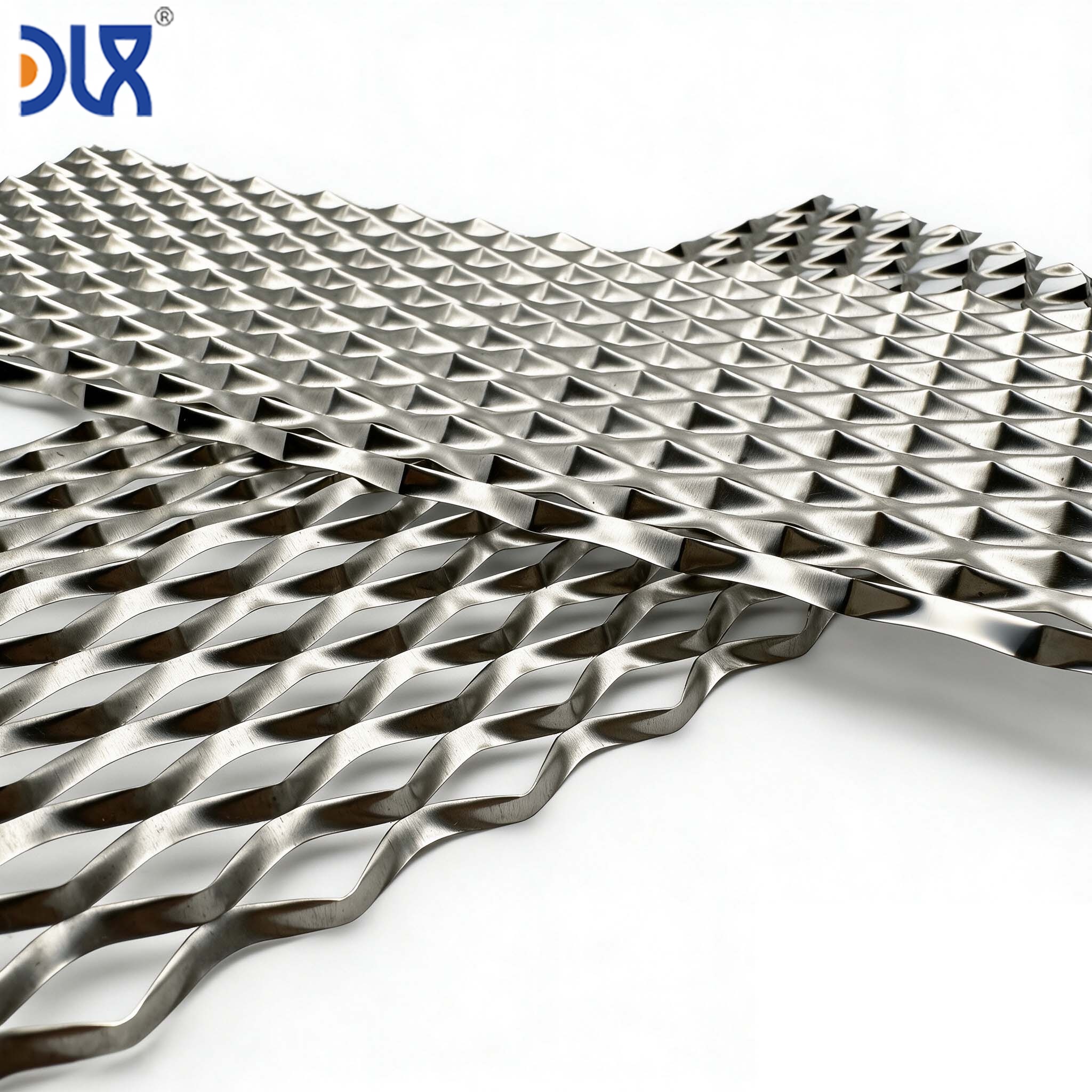

Our customized hexagonal zigzag electrode mesh for electrolyzer delivers optimized electrochemical performance in water electrolysis and hydrogen production systems. The unique combination of hexagonal pattern and zigzag structure provides high open area, excellent conductivity, and superior mass transport compared with conventional woven or expanded mesh electrodes.
This electrode mesh is ideal for alkaline water electrolyzers (AWE), PEM electrolyzers, and zero-gap configurations. The hexagonal zigzag design enhances gas diffusion, reduces overpotential, and supports higher current densities while maintaining mechanical stability under industrial operating conditions. Fully customizable in material, thickness, opening size, and dimensions to match specific electrolyzer electrode requirements.
Hexagonal zigzag geometry for increased active surface area and improved current distribution in electrolyzer electrode applications
Optimized open area and pore structure that promotes rapid bubble removal and efficient electrolyte circulation during water electrolysis
High mechanical strength and dimensional stability suitable for pressurized alkaline electrolyzer and PEM electrolyzer stacks
Excellent electrical conductivity and low contact resistance as a current collector or auxiliary electrode mesh
Corrosion-resistant construction for long service life in harsh electrolyzer environments
Compatible with zero-gap electrolyzer designs and large-scale hydrogen production systems
Specification
Grade | Ni+Co | Cu | Si | Mn | C | Mg | S | P | Fe |
N4 | 99.9 | ≤0.015 | ≤0.03 | ≤0.002 | ≤0.01 | ≤0.01 | ≤0.001 | ≤0.001 | ≤0.04 |
N6 | 99.5 | 0.10 | 0.10 | 0.05 | 0.10 | 0.10 | 0.005 | 0.002 | 0.10 |
Ni201 | ≥99.9 | ≤0.25 | ≤0.35 | ≤0.35 | ≤0.02 | / | ≤0.01 | / | ≤0.40 |
Ni200 | ≥99.6 | ≤0.25 | ≤0.35 | ≤0.35 | ≤0.15 | / | ≤0.01 | / | ≤0.40 |
Alkaline water electrolyzer (AWE) cathode and anode electrode mesh
PEM water electrolyzer porous transport layer or current collector mesh
Zero-gap and bipolar electrolyzer electrode configurations
Industrial hydrogen production plants and green hydrogen systems
Laboratory and pilot-scale water electrolysis research setups
Custom electrochemical cells requiring high-performance hexagonal zigzag electrode mesh
DLX Advantage
CHANGZHOU DLX ALLOY CO, LTD was established in 2002 and has got ISO9001 International Quality Management System Certificate and SGS Certificate. Our factory is professional in researching and producing special alloy material. From melting, drawing, heat treatment, finishing and testing .We offer nickel-based, copper-based, and iron-based alloys, including pure nickel series, welding materials, anti-corrosion alloy, precision alloy, FeCrAl alloy, NiCr alloy, thermocouple and etc, in the form of wire, strip, ribbon, bar, tube, plate and others.
1.Market Leader - Top 5 in China's Electroly Zerseries industry
2.Flexible products - Thousands of product specifications,Meet multiple needs of buyers
3.Low MOQ - Can customize samples
4.Short production lead time, fast delivery of whole cabinet
5.Professional inspection equipment
6.Professional business team - Quickly responds to customer inquiries,24-hour professional quotation online
7.Intact packaging
8.Various payment methods - Facilitate customer payment
9.Get good reviews from customers - Old customers have long-term cooperation,The longest is more than 7 years
10.Received various awards - Google is very recognized by us,They give us awards every year
FAQ
A: We use high-purity pure nickel (typically Ni ≥99.5% to 99.9% or higher upon request) to ensure optimal conductivity, corrosion resistance in alkaline KOH environments, and long electrode lifespan.
A: The zigzag pattern enhances electrolyte flow uniformity, reduces gas bubble accumulation on the electrode surface, improves mass transport, and lowers cell voltage—leading to higher efficiency and current density in alkaline water electrolysis.
A: Yes. We offer full customization of mesh count, wire diameter, overall dimensions, thickness, weaving style, and optional catalyst coatings or surface treatments to match your specific alkaline electrolyzer stack requirements.
A: Absolutely. Pure nickel zigzag flow mesh performs well as both anode (OER) and cathode (HER) electrodes or as a support/PTL in alkaline water electrolyzers. Catalyst coatings can further optimize each side.
