Ni200 Ni201 N4 N6
DLX
Bright
10-25 days
Product Description

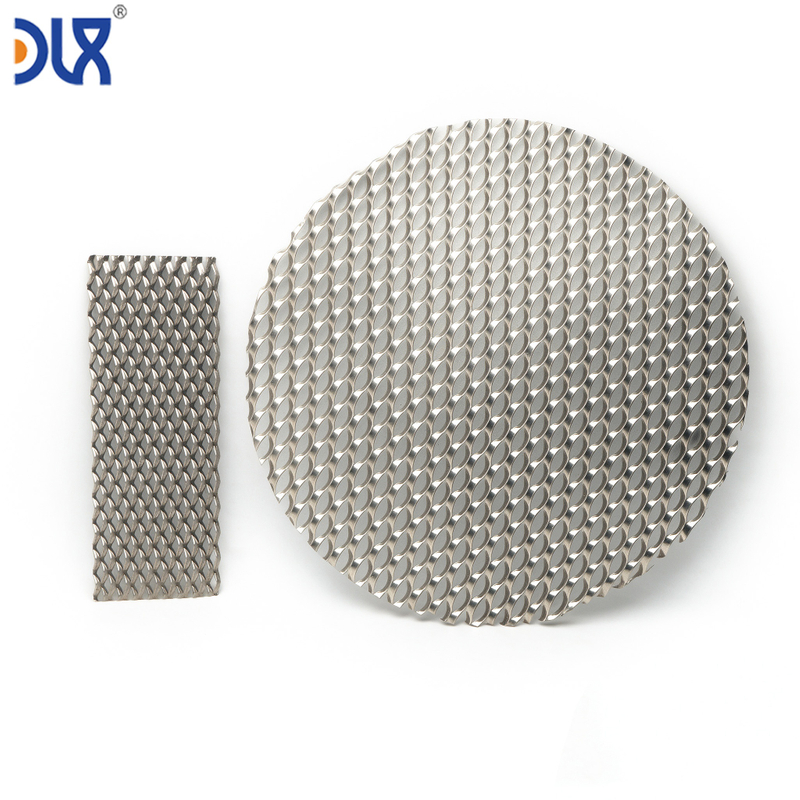

This pure nickel zigzag flow mesh serves as a durable substrate or current collector in alkaline water electrolyzers. The zigzag geometry creates an optimized flow field that enhances mass transport of KOH electrolyte, minimizes gas accumulation, and improves overall cell performance compared with conventional parallel or simple pin designs. Ideal for zero-gap configurations, it combines excellent electrical conductivity, outstanding alkali corrosion resistance, and customizable dimensions to meet specific electrolyzer stack requirements.
High-Purity Nickel Construction – Made from pure nickel (Ni200 / Ni201 grade or equivalent) for superior electrical conductivity and long-term stability in concentrated KOH (typically 20–40%).
Zigzag Flow Field Design – Engineered zigzag channels promote uniform electrolyte distribution, efficient bubble removal (H₂/O₂), lower pressure drop, and more even current density across the electrode surface.
Excellent Corrosion Resistance – Forms a stable passive oxide layer in alkaline environments, ensuring extended service life under industrial operating temperatures (60–90 °C) and high current densities.
Customizable Specifications – Available in various mesh sizes, wire diameters, thicknesses, opening geometries, and overall dimensions; suitable for woven, expanded, or specialized zigzag configurations.
Enhanced Surface Area & Mechanical Strength – Provides large active surface for electrochemical reactions while maintaining structural integrity under compression in zero-gap stacks.
Specification
Grade | Ni+Co | Cu | Si | Mn | C | Mg | S | P | Fe |
N4 | 99.9 | ≤0.015 | ≤0.03 | ≤0.002 | ≤0.01 | ≤0.01 | ≤0.001 | ≤0.001 | ≤0.04 |
N6 | 99.5 | 0.10 | 0.10 | 0.05 | 0.10 | 0.10 | 0.005 | 0.002 | 0.10 |
Ni201 | ≥99.9 | ≤0.25 | ≤0.35 | ≤0.35 | ≤0.02 | / | ≤0.01 | / | ≤0.40 |
Ni200 | ≥99.6 | ≤0.25 | ≤0.35 | ≤0.35 | ≤0.15 | / | ≤0.01 | / | ≤0.40 |
Alkaline water electrolyzer (AWE) stacks for large-scale green hydrogen production
Anode and cathode current collectors or porous transport layers in zero-gap alkaline electrolysis cells
Flow-field plates and electrode supports in industrial hydrogen generators
Research and pilot-scale alkaline electrolyzers requiring optimized mass transport
Systems aiming for higher current density operation with reduced energy consumption and improved durability
DLX Advantage
CHANGZHOU DLX ALLOY CO, LTD was established in 2002 and has got ISO9001 International Quality Management System Certificate and SGS Certificate. Our factory is professional in researching and producing special alloy material. From melting, drawing, heat treatment, finishing and testing .We offer nickel-based, copper-based, and iron-based alloys, including pure nickel series, welding materials, anti-corrosion alloy, precision alloy, FeCrAl alloy, NiCr alloy, thermocouple and etc, in the form of wire, strip, ribbon, bar, tube, plate and others.
1.Market Leader - Top 5 in China's Electroly Zerseries industry
2.Flexible products - Thousands of product specifications,Meet multiple needs of buyers
3.Low MOQ - Can customize samples
4.Short production lead time, fast delivery of whole cabinet
5.Professional inspection equipment
6.Professional business team - Quickly responds to customer inquiries,24-hour professional quotation online
7.Intact packaging
8.Various payment methods - Facilitate customer payment
9.Get good reviews from customers - Old customers have long-term cooperation,The longest is more than 7 years
10.Received various awards - Google is very recognized by us,They give us awards every year
FAQ
We use high-purity nickel (typically ≥ 99.5%, with options up to 99.9%+) to ensure optimal conductivity and corrosion resistance in alkaline electrolytes.
The zigzag configuration improves electrolyte flow uniformity, accelerates gas bubble detachment, reduces localized overheating, and helps achieve lower cell voltage and higher efficiency compared with conventional parallel or simple expanded mesh designs.
Yes. Mesh number, wire diameter, thickness, overall size, zigzag pattern depth/angle, and surface finishing can all be tailored to your stack design and operating conditions.
Yes. Pure nickel zigzag flow mesh performs well on both sides in alkaline environments. Additional catalyst coatings can be applied depending on the specific reaction requirements (OER or HER).
Yes. Samples and engineering support are available to help match the pure nickel zigzag flow mesh to your alkaline water electrolyzer requirements.
