Ni200 Ni201 N4 N6
DLX
bright
Customized
8.89
ISO,SGS,ROHS
10kg
1435-1446
7-20 days
Product Description

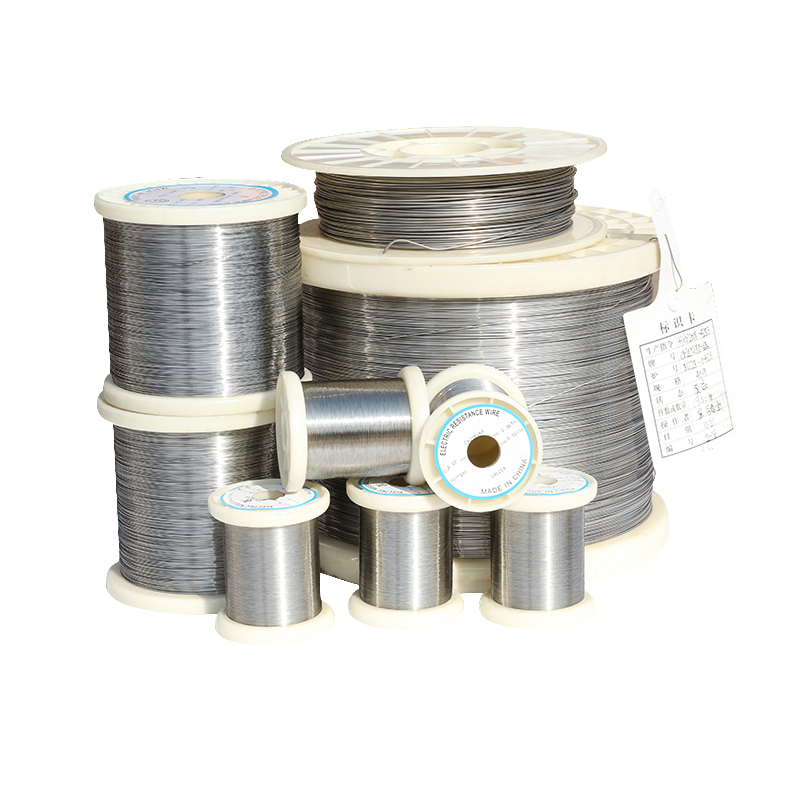

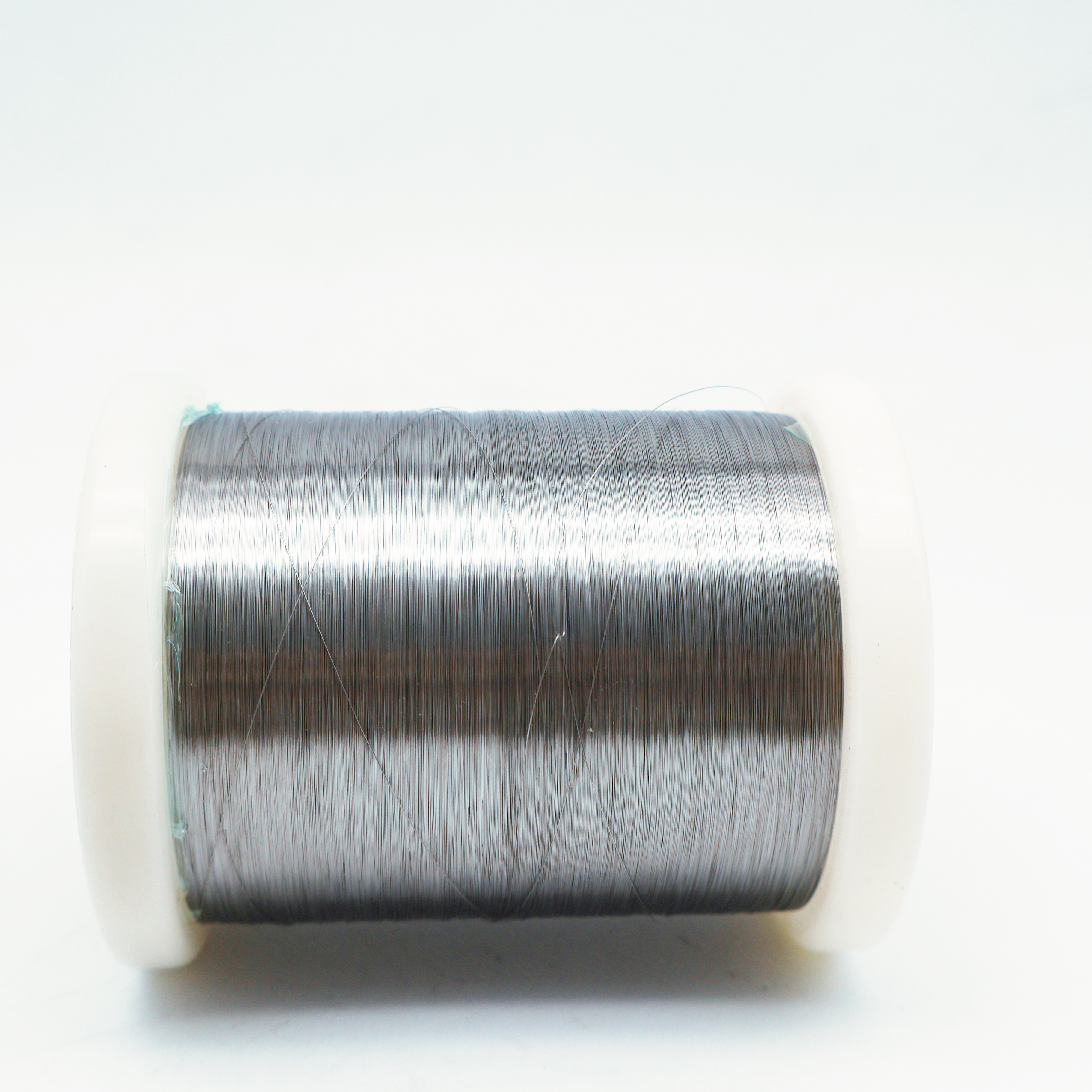

DLX Alloy manufactures and supplies N4 and N6 pure nickel wire for industrial, electrical, battery, chemical and precision applications. Our nickel wire is available in custom diameters, surface finishes and delivery conditions according to customer requirements.
N4 pure nickel wire is commonly associated with Ni201, while N6 pure nickel wire is commonly associated with Ni200. The appropriate grade depends on the required chemical composition, carbon content, temperature performance, corrosion resistance and application.

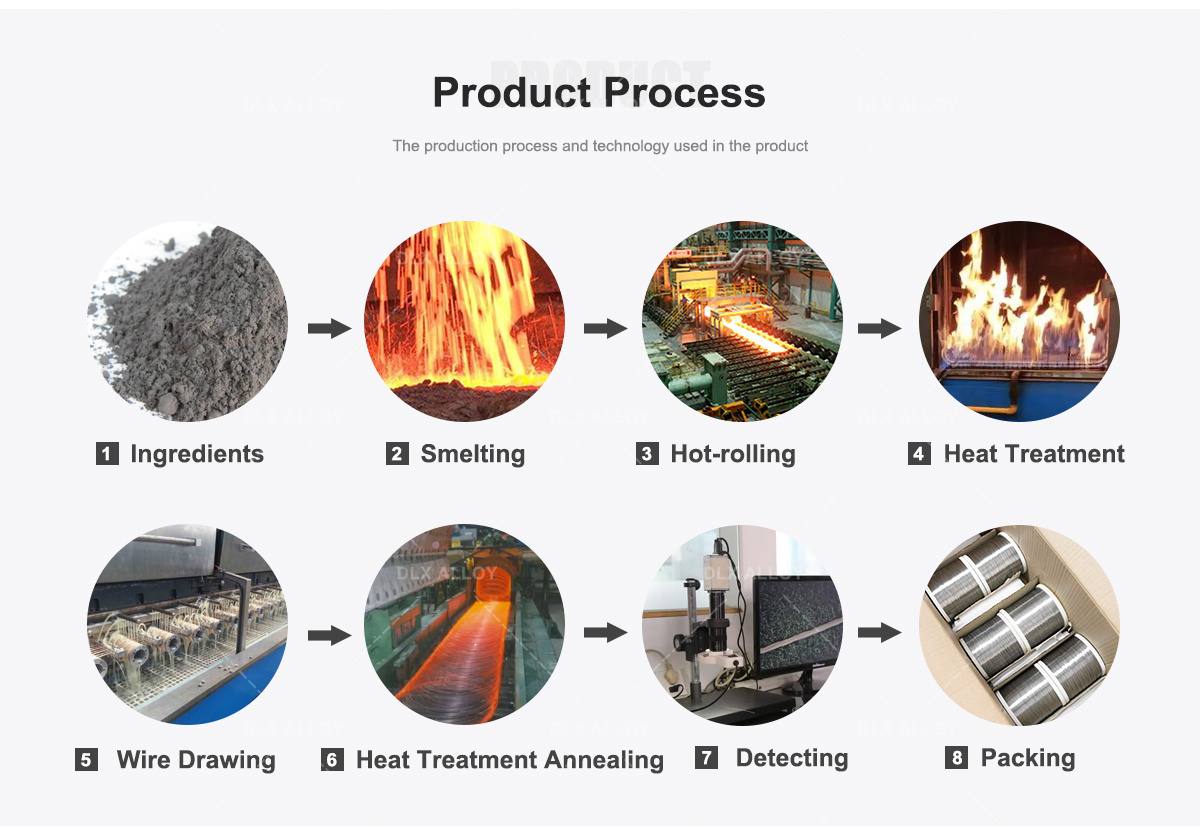

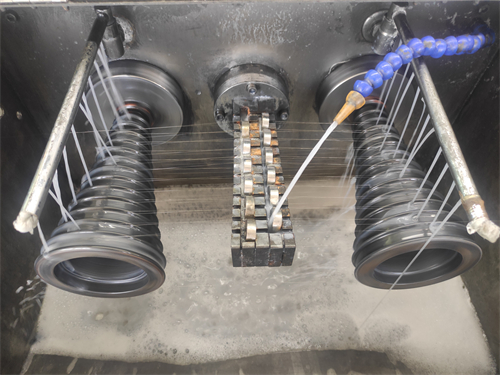

We manufacture pure nickel wire from raw material melting and drawing through heat treatment, surface finishing and final inspection. Custom sizes and specifications are available for OEM and industrial orders.
Provides excellent conductivity and oxidation resistance.
Performs well in acidic, alkaline, and high-moisture environments.
Withstands mechanical stress, high temperatures, and electrical loads.
Ensures strong and stable connections in electrical applications.
The main difference between N4 and N6 is their chemical composition and the performance requirements of the final application.
N4 / Ni201 is generally selected when high nickel purity and low carbon content are important.
Typical applications include:
Chemical processing equipment
Electrical and electronic components
High-temperature applications
Corrosion-resistant components
Precision industrial components
N4 / Ni201 wire can be supplied in customized diameters and surface conditions for applications requiring consistent material quality.
N6 / Ni200 is widely used as a commercially pure nickel material for electrical and industrial applications.
Typical applications include:
Battery tabs and battery connections
Electrical contacts
Electronic components
Conductive connections
Chemical processing equipment
Industrial heating and electrical components
The final grade should be selected according to the required chemical composition, mechanical properties, electrical performance and operating environment.
Specification
| Size Range | |
| Wire | 0.025-10mm |
| Ribbon | (0.50-0.25)*(0.5-6)mm |
| Strip | (0.05-0.5)*(5-200)mm |
| Grade | Ni+Co | Cu | Si | Mn | C | Mg | S | P | Fe |
| N4 | 99.9 | ≤0.015 | ≤0.03 | ≤0.002 | ≤0.01 | ≤0.01 | ≤0.001 | ≤0.001 | ≤0.04 |
| N6 | 99.5 | 0.10 | 0.10 | 0.05 | 0.10 | 0.10 | 0.005 | 0.002 | 0.10 |
| Ni201 | ≥99.9 | ≤0.25 | ≤0.35 | ≤0.35 | ≤0.02 | / | ≤0.01 | / | ≤0.40 |
| Ni200 | ≥99.6 | ≤0.25 | ≤0.35 | ≤0.35 | ≤0.15 | / | ≤0.01 | / | ≤0.40 |
Application Field
Used in precision electronic components, transformers, and printed circuit boards (PCBs).
Provides low impedance and stable electrical conductivity for high-performance circuits.
Essential for semiconductor manufacturing and electrical signal transmission.
Ideal for spot welding and connecting lithium-ion and nickel-based batteries.
Ensures low electrical resistance and strong conductive properties for battery performance.
Used in EV battery production, power banks, and industrial energy storage systems.
Suitable for aerospace electronic components, temperature sensors, and shielding materials.
Performs well in vacuum environments and radiation-resistant applications.
Used in specialized aircraft, satellites, and defense technologies.
Used in chemical equipment, electrochemical applications, and electroplating.
Essential for acid-resistant and corrosion-resistant industrial tools.
Provides long-term durability in harsh industrial and chemical processing environments.
Our Advantage
CHANGZHOU DLX ALLOY CO, LTD was established in 2002 and has got Iso9001 International Quality Management System Certificate and SGS Certificate. Our factory is professional in researching and producing special alloy material. From melting, drawing, heat treatment, finishing and testing .We offer nickel-based, copper-based, and iron-based alloys, including super alloy, welding materials, anti-corrosion alloy, precision alloy, FeCrAl alloy, NiCr alloy, CuNi alloy, thermocouple and etc, in the form of wire, strip, ribbon, bar, tube, plate.
FAQ
DLX Alloy can manufacture pure nickel wire from approximately 0.025 mm, with the actual minimum diameter depending on grade, tolerance, condition and production requirements.
Yes. We support customized wire diameters, tolerances, surface conditions, packaging and order quantities according to customer requirements.
Samples can be discussed for new projects and material evaluation. Please provide the required diameter, grade and application when requesting a sample.
Depending on the order and specification, we can discuss material certificates, chemical composition reports, inspection reports and other quality documentation.
The standard MOQ depends on the wire size, grade and production requirements. Please contact DLX Alloy with your required specification for an accurate quotation.
The choice depends on the required chemical composition, carbon content, corrosion environment, electrical requirements, mechanical properties and operating temperature. Contact our technical team if you are unsure which grade is suitable.
