Inconel 713C,600,601,617,625,690,718,X750
DLX
Bright Annealed
Customized
ISO9001, ROHS
10kg
15-30 Days
Industry,Military,Aerospace
Product Description
Inconel 713C is a precipitation-hardened nickel-based superalloy known for its outstanding performance in high-temperature environments. It is widely used in aerospace and military UAV systems where materials must maintain strength and stability under prolonged thermal and mechanical stress.
The alloy demonstrates excellent oxidation resistance and creep strength at temperatures up to 980°C (1800°F). Its composition, including elements such as aluminum and molybdenum, enhances its durability and long-term structural integrity.

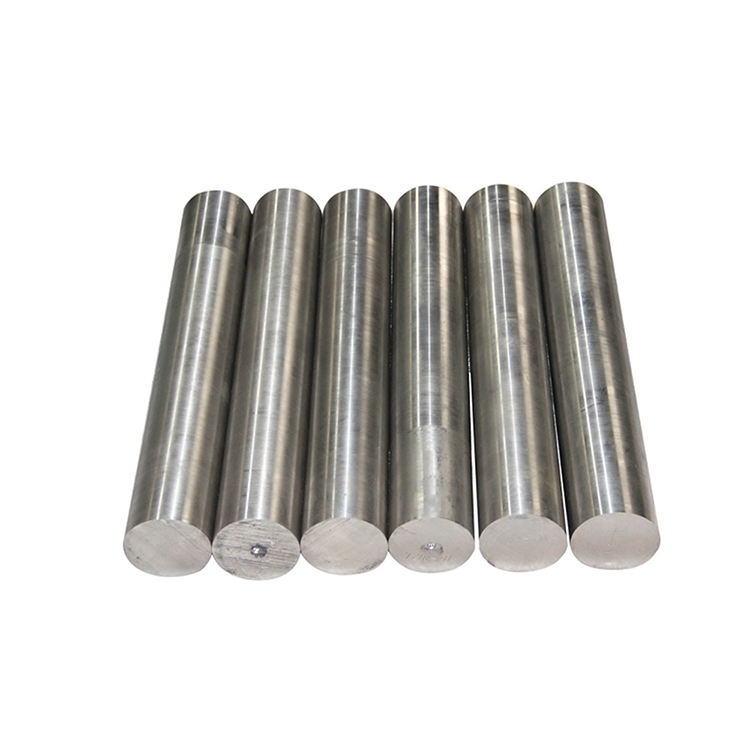

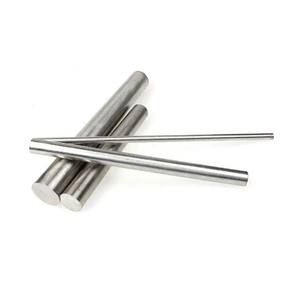

Our Inconel 713C nickel alloy rods are available in the following standard sizes:
80 × 780 mm
80 × 880 mm
80 × 700 mm
Exceptional heat resistance for high-temperature environments
Excellent creep and fatigue resistance
Superior oxidation and hot corrosion resistance
High structural stability under thermal stress
Designed for aerospace and UAV engine components
Precision machining and consistent quality
Supports secure international payments including VTB
Specification
Chemical Composition (wt.%)
| Element | Content (AMS 5391) |
|---|---|
| Chromium (Cr) | 12.00 – 14.00 |
| Molybdenum (Mo) | 3.80 – 5.20 |
| Niobium + Tantalum (Nb+Ta) | 1.80 – 2.80 |
| Aluminum (Al) | 5.50 – 6.50 |
| Titanium (Ti) | 0.50 – 1.00 |
| Carbon (C) | 0.08 – 0.20 |
| Boron (B) | 0.005 – 0.015 |
| Zirconium (Zr) | 0.05 – 0.15 |
| Silicon (Si) | ≤ 0.50 |
| Manganese (Mn) | ≤ 0.25 |
| Iron (Fe) | ≤ 2.50 |
| Copper (Cu) | ≤ 0.50 |
| Nickel (Ni) | Balance |
| Property | Value |
|---|---|
| Density | 7.91 g/cm³ |
| Melting Range | 1260 – 1288 °C |
| Thermal Expansion Coefficient | 5.92 – 9.48 ×10⁻⁶ /°F (70–2000°F) |
| Thermal Conductivity | 146 – 334 BTU·in/hr·ft⊃2;·°F |
| Tensile Strength | ≥ 760 MPa (110 ksi) |
| Yield Strength (0.2%) | ≥ 690 MPa (100 ksi) |
| Elongation | ≥ 3% |
| Hardness | HRC 30 – 42 |
| Creep Rupture Strength (980°C / 30h) | 152 MPa |
| Max Service Temperature | ≤ 900 °C |
Application Field
Inconel 713C alloy rods are widely applied in:
Military UAV engine components
Aerospace turbine and hot-section parts
Defense and military equipment
Gas turbines and high-temperature systems
Power generation components
Heat-resistant structural applications
About us
CHANGZHOU DLX ALLOY CO, LTD was established in 2002 and has got ISO9001 International Quality Management System Certificate and SGS Certificate. Our factory is professional in researching and producing special alloy material. From melting, drawing, heat treatment, finishing and testing .We offer nickel-based, copper-based, and iron-based alloys, including super alloy, welding materials, anti-corrosion alloy, precision alloy, FeCrAl alloy, NiCr alloy, CuNi alloy, thermocouple and etc, in the form of wire, strip, ribbon, bar, tube, plate.
FAQ
A: Its high-temperature strength, oxidation resistance, and creep resistance make it ideal for UAV engine and structural components operating in extreme environments.
A: Standard sizes include 80×780 mm, 80×880 mm, and 80×700 mm. Custom dimensions are available upon request.
A: Inconel 713C can perform reliably at temperatures up to approximately 980°C (1800°F).
A: Yes, we support VTB payment along with other secure international payment methods.
A: Yes, it is widely used in aerospace, UAV, and turbine-related applications due to its excellent thermal and mechanical properties.
A: Yes, we can provide MTC and other quality assurance documents upon request.
