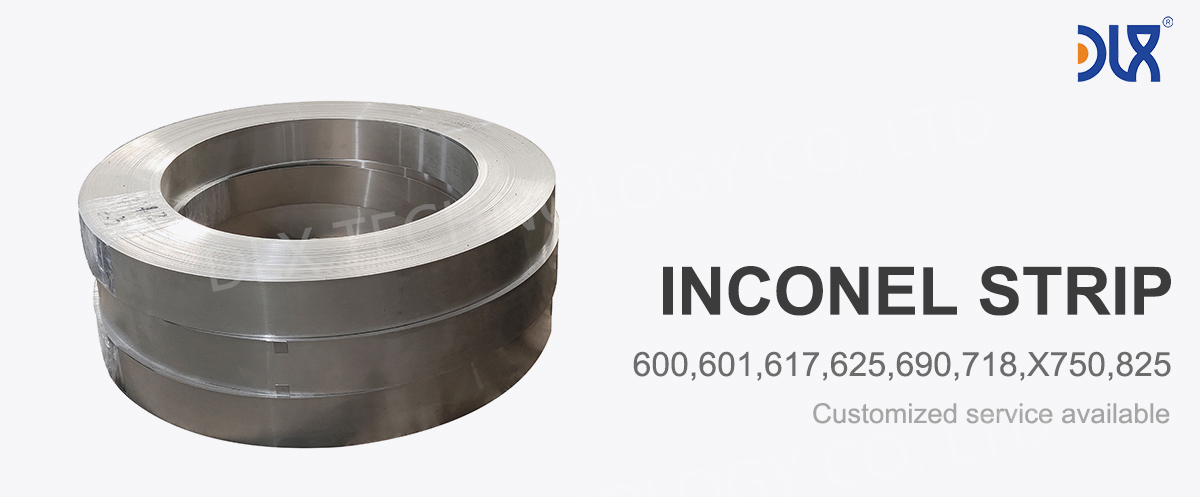

Inconel 600,601,617,625,690,718,X750
DLX
bright
8.24 g/cm3
965
ISO9001, ROHS
5kg
1260-1320 ℃
7-20 days,according to the quantity
chemical, oil, Marine industry
Ni Cr Mo
Product Description
DLX Alloy's Inconel 625 (UNS N06625) foil and strip are nickel-chromium-molybdenum superalloys designed specifically for demanding hydrogen energy applications. Thanks to its high nickel content (>58%) and additions of niobium, Inconel 625 delivers exceptional resistance to hydrogen embrittlement even under ultra-high hydrogen pressures (up to 700-1000 bar) and across wide temperature ranges (-196°C to 980°C).

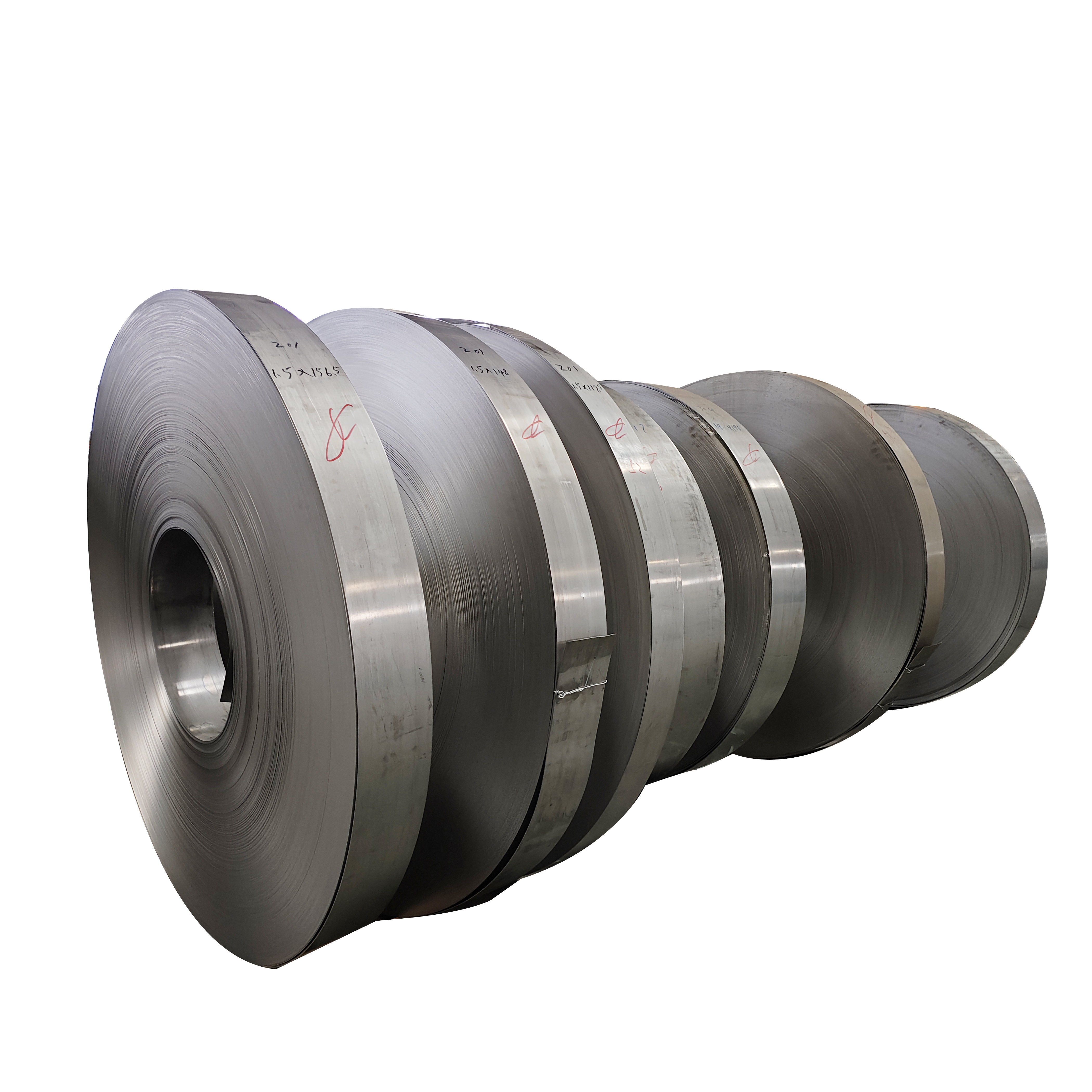

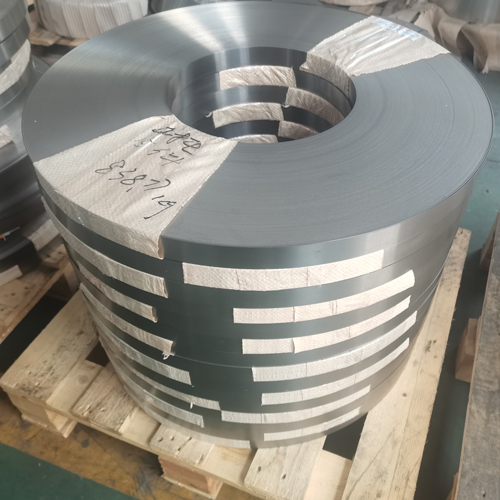

Our ultra-thin Inconel 625 foil (0.01mm–0.2mm) is perfect as a barrier layer or liner in composite high-pressure hydrogen storage tanks, preventing hydrogen permeation and embrittlement of carbon fiber structures. The wider Inconel 625 strip (thickness 0.1mm–3.0mm) is widely used for welded tank components, accumulators, and hydrogen pipeline reinforcements.
All products are supplied in annealed condition for optimal formability and hydrogen compatibility, meeting ASTM B443, AMS 5599, and ASME SB-443 standards.
High nickel matrix significantly reduces hydrogen absorption and diffusion, far outperforming 316L stainless steel in high-pressure gaseous hydrogen environments.
Ultra-low hydrogen permeability protects composite overwrapping and extends tank service life.
Resists pitting, crevice corrosion, and stress corrosion cracking in humid or impure hydrogen conditions.
Maintains mechanical properties after repeated hydrogen charge-discharge cycles.
From cryogenic liquid hydrogen storage to high-temperature hydrogen transport.
Easy to roll-form, deep-draw, or weld into complex tank liner shapes.
Specification
| Inconel Alloy 625 Size Range | |
| Wire | 0.05-8.0mm |
| Rod/Bar | 8.0-200mm |
| Strip | (0.05-0.5)*(5-200)mm |
| Plate | custom made |
| Tube | custom made |
| Steel grade | Inconel 600 | Inconel 601 | Inconel 625 | Inconel 718 | Inconel 725 | Inconel X-750 |
| Corresponding brand | N06600/2.4816 /1Cr15Ni75Fe8 /NS312/CY40 | N06601/2.4851 /1Cr23Ni60Fe13AI /NS313 | N06625/2.4856/0Cr20Ni65Mo10bN4/NS336 | N07718/2.466 8/GH4169 | N07725 | N07750 /2.466 9/GH4145 |
Inconel 625 Strip Chemical composition%
| Steel grade | Inconel 600 | Inconel 601 | Inconel 625 | Inconel 718 | Inconel 725 | Inconel X-750 |
| C≤ | 0.150 | 0.100 | 0.100 | 0.080 | 0.030 | 0.080 |
| Mn≤ | 1.00 | 1.00 | 0.50 | 0.35 | 0.35 | 1.00 |
| P≤ | / | / | 0.015 | 0.015 | 0.015 | / |
| S≤ | 0.015 | 0.015 | 0.015 | 0.015 | 0.010 | 0.010 |
| Si≤ | 0.50 | 0.50 | 0.50 | 0.35 | 0.20 | 0.50 |
| Cr≤ | 14.0-17.0 | 21.0-25.0 | 20.0-23.0 | 17.0-21.0 | 19.0-22.5 | 14.0-17.0 |
| Ni≤ | ≥72.0 | 58.0-63.0 | ≥58.0 | 55.0-59.0 | 55.0-59.0 | ≥70 |
| Mo | / | / | 8.0-10.0 | 2.8-3.3 | 7.0-9.5 | / |
| Cu | ≤0.50 | ≤1.50 | / | ≤0.30 | / | ≤0.50 |
| N | / | / | / | / | / | / |
| Nb | / | / | 3.15-4.15 | 4.75-5.50 | 2.75-4.00 | 0.70-1.20 |
| other | Fe:6.0-10.0 | Al:1.0-1.7 | Co:≤1.0Ai:≤0.4 0Tr:0.40Fe:≤5.0 | AI:0.20-0.80Ti:0.65-1.15B≤0.006 | Tr:1.0-1.7AI≤0.35 | Co:≤1.0 AI:0.4-1.0Tr:0.25-2.75Fe:5.0-9.0 |
Application Field
Inner liners and barrier foils for Type IV high-pressure hydrogen storage tanks (700 bar onboard vehicles)
Diaphragms and seals in hydrogen compressors and hydrogen refueling stations
Protective layers in solid-state hydrogen storage systems
Pipeline and valve components for gaseous hydrogen transportation
Accumulators and pressure vessels in fuel cell vehicles and stationary hydrogen power systems
Cryogenic hydrogen tanks requiring combined low-temperature toughness and hydrogen resistance
Our Advantage

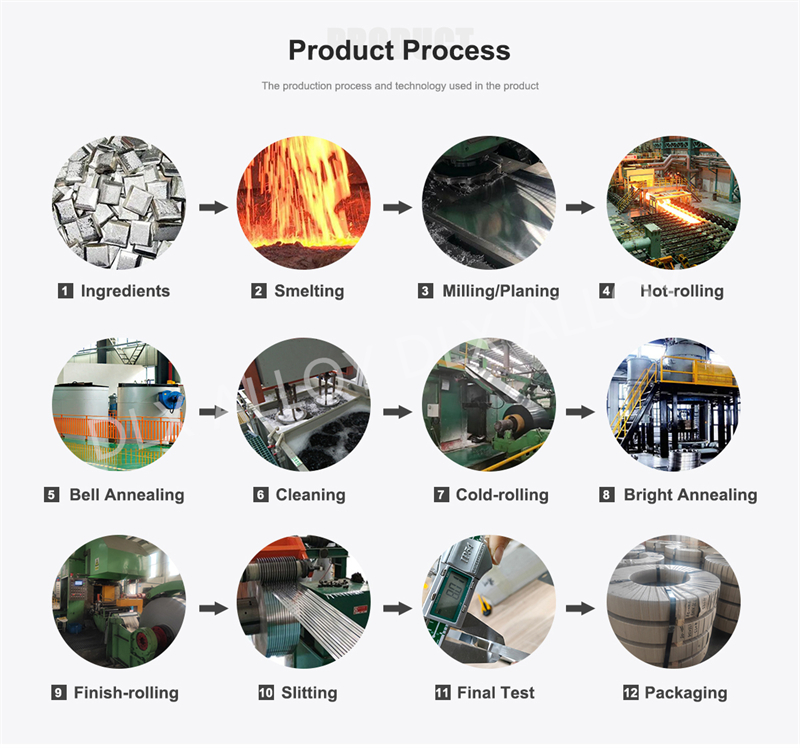

CHANGZHOU DLX ALLOY CO, LTD was established in 2002 and has got ISO9001 International Quality Management System Certificate and SGS Certificate. Our factory is professional in researching and producing special alloy material. From melting, drawing, heat treatment, finishing and testing .We offer nickel-based, copper-based, and iron-based alloys, including super alloy, welding materials, anti-corrosion alloy, precision alloy, FeCrAl alloy, NiCr alloy, CuNi alloy, thermocouple and etc, in the form of wire, strip, ribbon, bar, tube, plate.
FAQ
Yes. Thanks to its high nickel content and stable austenitic structure, Inconel 625 exhibits excellent resistance to hydrogen embrittlement and very low hydrogen permeation rates, making it one of the preferred materials for 700-bar hydrogen tanks and refueling systems.
We routinely supply 0.01mm–0.05mm ultra-thin foil, ideal as impermeable liners in composite hydrogen tanks.
Absolutely. Inconel 625 is typically used for corrosion/hydrogen barrier layers (foil/strip), while Inconel 718 is used for high-strength structural parts. Many hydrogen tank designs combine both alloys.
Our professional quality team uses advanced planning and strict controls to meet standards, providing chemical analysis reports and inspection certificates with every Inconel 625 strip order.
Yes, we welcome factory visits to our Inconel Alloy 625 production site in Jiangsu, China, to build trust and discuss your specific requirements.
Our Inconel Alloy 625 strips are manufactured in Jiangsu, China, with efficient global shipping tailored to your order size and specifications.
Yes, we provide Inconel 625 strip samples to help you evaluate quality and suitability for your applications.
