Inconel 600,601,617,625,690,718,X750
DLX
bright
Customized
965
ISO9001
10kg
1260-1320℃
10-25 days
Industry
Nickel Base Alloy
Product Description

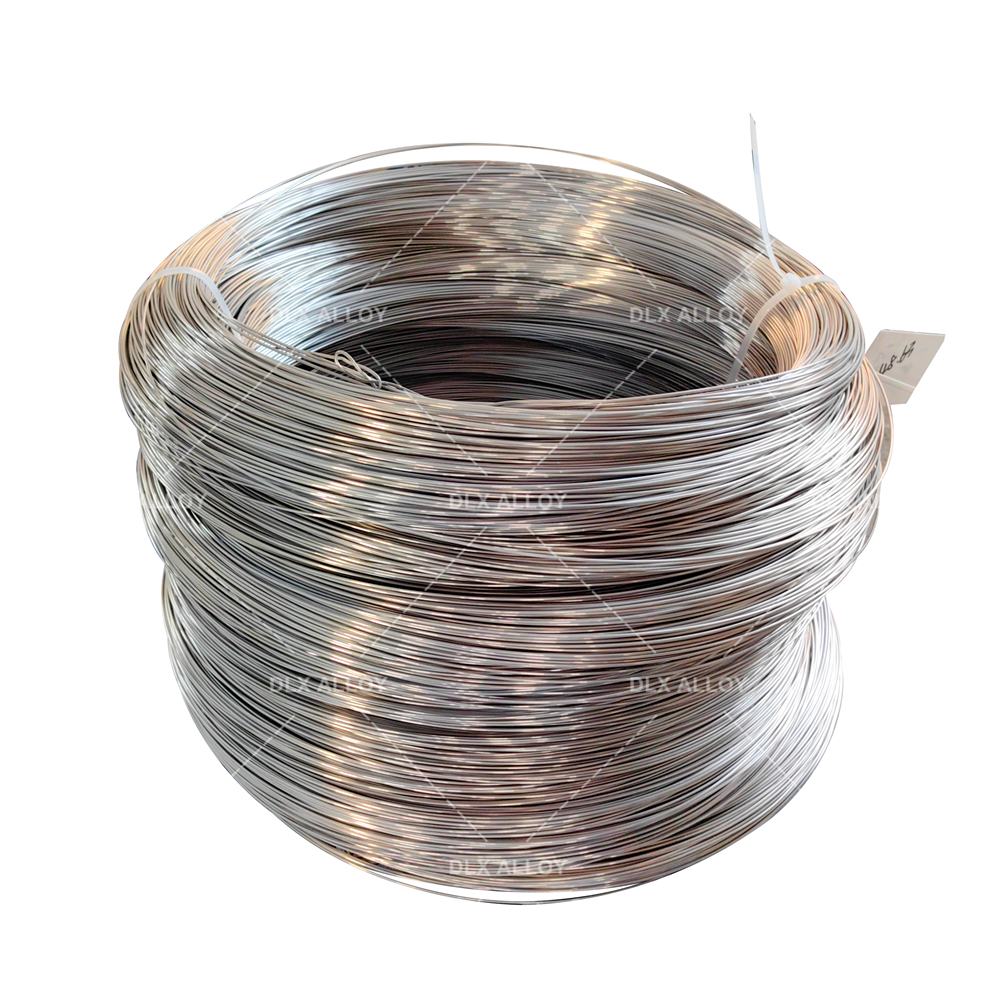

Inconel 625 Alloy Wire own a very good corrosion resistance in many media, especially with excellent resistance to pitting, crevice corrosion,intercrystalline corrosion, and erode in oxide, also good resistance to inorganic acid corrosion, such as nitric acid, phosphoric acid, sulfuric acid and hydrochloric acid.
Inconel 625 Alloy Wire can resist the alkali and organic acid corrosion in the oxidation and reduction environment. Effect resists the chloride reduction stress corrosion cracking. Normally no corrosion in the sea-water and industry environments since high corrosion resistance to the sea-water and salting liquid,as well as in high temperature, without sensitivity during welding.
Inconel 625 Alloy Wire have the resistance to oxidation and carbonizing in the static and cycle environments, also hacve the resistance the chlorine corrosion.
1. Good creep rupture strength at high temperatures.
2. Higher strength than Inconel X-750.
3. Better mechanical properties at lower temperatures than Nimonic 90 & Inconel X-750.
4. Age hardenable.
5. High temperature dynamic applications.
Inconel 625 Alloy Wire A Nickel-Chromium alloy being precipitation hardenable and having high creep-rupture strength at high temperatures to about 700°C (1290°F). It has higher strength than Inconel X-750 and better mechanical properties at lower temperatures than Nimonic 90 and Inconel X-750. It can be used for any TSMC spring product such as wave springs, retaining rings and compression springs.
Specification
| Steel grade | Inconel 600 | Inconel 601 | Inconel 625 | Inconel 718 | Inconel 725 | Inconel X-750 |
| Corresponding brand | N06600/2.4816 /1Cr15Ni75Fe8 /NS312/CY40 | N06601/2.4851 /1Cr23Ni60Fe13AI /NS313 | N06625/2.4856/0Cr20Ni65Mo10bN4/NS336 | N07718/2.466 8/GH4169 | N07725 | N07750 /2.466 9/GH4145 |
Chemical composition%
| Steel grade | Inconel 600 | Inconel 601 | Inconel 625 | Inconel 718 | Inconel 725 | Inconel X-750 |
| C≤ | 0.150 | 0.100 | 0.100 | 0.080 | 0.030 | 0.080 |
| Mn≤ | 1.00 | 1.00 | 0.50 | 0.35 | 0.35 | 1.00 |
| P≤ | / | / | 0.015 | 0.015 | 0.015 | / |
| S≤ | 0.015 | 0.015 | 0.015 | 0.015 | 0.010 | 0.010 |
| Si≤ | 0.50 | 0.50 | 0.50 | 0.35 | 0.20 | 0.50 |
| Cr≤ | 14.0-17.0 | 21.0-25.0 | 20.0-23.0 | 17.0-21.0 | 19.0-22.5 | 14.0-17.0 |
| Ni≤ | ≥72.0 | 58.0-63.0 | ≥58.0 | 55.0-59.0 | 55.0-59.0 | ≥70 |
| Mo | / | / | 8.0-10.0 | 2.8-3.3 | 7.0-9.5 | / |
| Cu | ≤0.50 | ≤1.50 | / | ≤0.30 | / | ≤0.50 |
| N | / | / | / | / | / | / |
| Nb | / | / | 3.15-4.15 | 4.75-5.50 | 2.75-4.00 | 0.70-1.20 |
| other | Fe:6.0-10.0 | Al:1.0-1.7 | Co:≤1.0Ai:≤0.4 0Tr:0.40Fe:≤5.0 | AI:0.20-0.80Ti:0.65-1.15B≤0.006 | Tr:1.0-1.7AI≤0.35 | Co:≤1.0 AI:0.4-1.0Tr:0.25-2.75Fe:5.0-9.0 |
Application Field
Provides high-strength and corrosion-resistant springs for reliable turbine operation under extreme temperatures.
Ensures durable and heat-resistant springs for precise control in rocket propulsion systems.
Offers fatigue-resistant springs for critical components in harsh space environments.
Supplies corrosion-resistant springs for safe and stable reactor operation in radioactive conditions.
Delivers robust springs for consistent pump performance in corrosive and high-pressure fluids.
Our Advantage

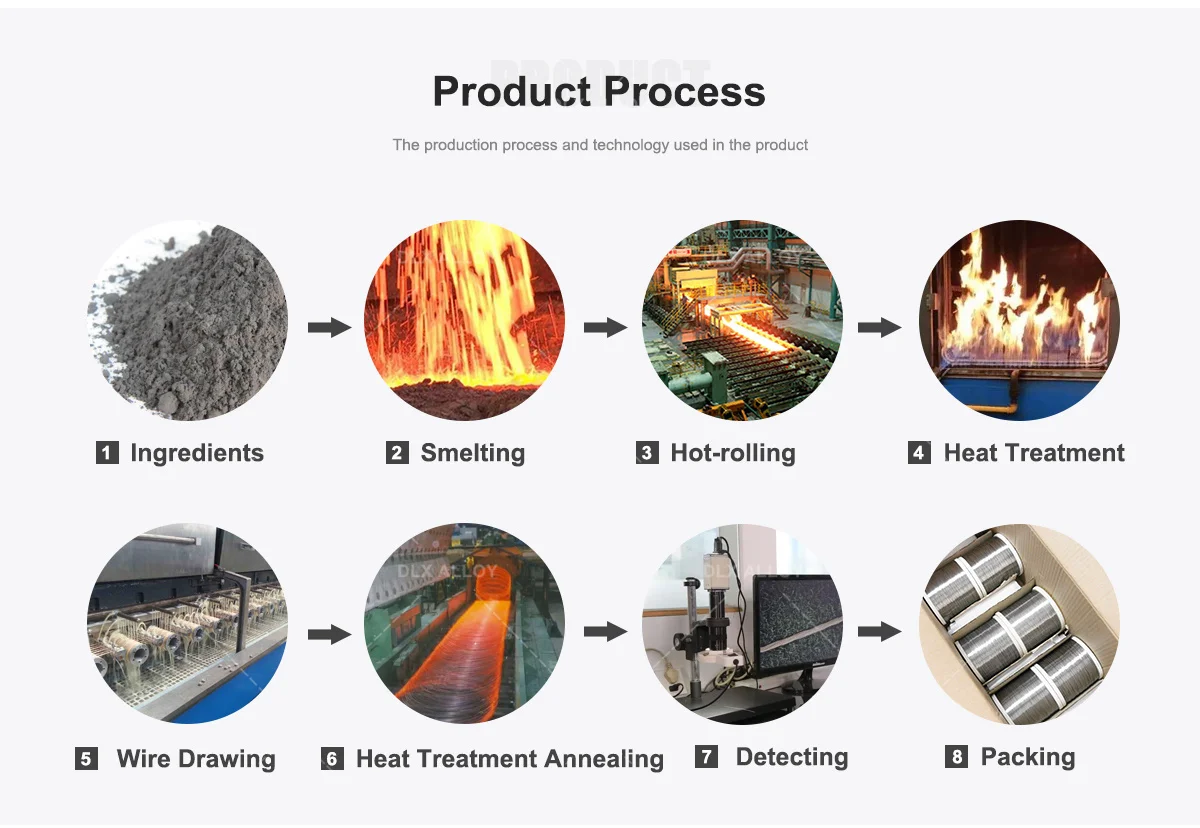

CHANGZHOU DLX ALLOY CO, LTD was established in 2002 and has got Iso9001 International Quality Management System Certificate and SGS Certificate. Our factory is professional in researching and producing special alloy material. From melting, drawing, heat treatment, finishing and testing .We offer nickel-based, copper-based, and iron-based alloys, including super alloy, welding materials, anti-corrosion alloy, precision alloy, FeCrAl alloy, NiCr alloy, CuNi alloy, thermocouple and etc, in the form of wire, strip, ribbon, bar, tube, plate.
FAQ
Our Inconel 625 alloy wire offers factory-direct supply at competitive wholesale prices, with custom sizes, large stock availability, and fast global shipping for reliable industrial and electronic applications.
Delivery for small Inconel 625 alloy wire orders takes 10-30 days, while large orders require up to 60 days, depending on quantity.
Yes, we accept OEM/ODM production for Inconel 625 alloy wire—simply send your samples or drawings to get started.
Our professional quality team uses advanced planning and strict controls to meet standards, providing certificates like chemical analysis reports for every Inconel 625 alloy wire batch.
Yes, share your specific Inconel 625 alloy wire product and application needs, and we'll send detailed technical data and drawings for your review.
Our dedicated business team provides one-on-one support for Inconel 625 alloy wire needs, answering questions promptly before and after your purchase.
Yes, you're welcome to visit our factory—we're excited to connect and discuss your Inconel 625 alloy wire requirements in person.
Our Inconel 625 alloy wire is manufactured in Jiangsu, China, with quick shipping to your location based on order specs and volume.
Yes, we can provide Inconel 625 alloy wire samples to help you evaluate our high-purity products.
