Inconel 713C,600,601,617,625,690,718,X750
DLX
Bright Annealed
Customized
ISO9001, ROHS
10kg
15-30 Days
Industry,Military,Aerospace
Product Description
Inconel 713C is a precipitation-hardened nickel-chromium alloy specifically developed for high-temperature strength and excellent castability. It is widely used in demanding environments such as gas turbines, military hardware, and aerospace systems.
This alloy offers superior mechanical strength at temperatures up to 980°C (1800°F), along with outstanding resistance to oxidation and hot corrosion. The addition of aluminum and molybdenum enhances its creep resistance and structural stability over long-term exposure to high temperatures.

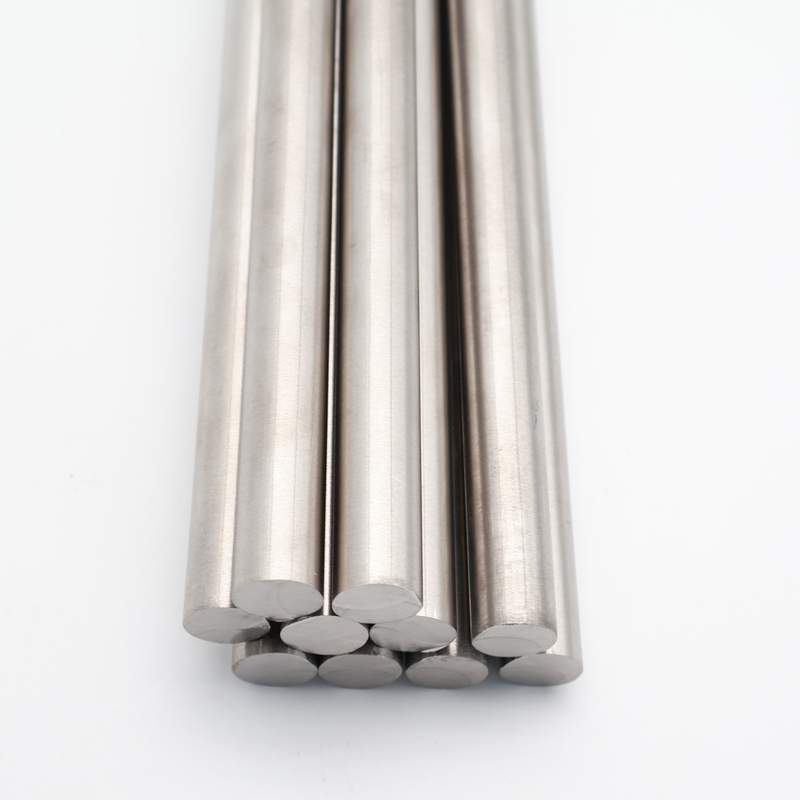

DLX 80mm Inconel 713C rods are manufactured to strict quality standards, ensuring consistency, durability, and reliability. We also support secure international transactions, including VTB payment options.
Our Inconel 713C rods are available in the following standard sizes:
80 × 780 mm
80 × 880 mm
80 × 700 mm
Excellent high-temperature strength and creep resistance
Superior oxidation and hot corrosion resistance
Stable microstructure under extreme thermal conditions
Good fatigue resistance for long service life
Suitable for critical military and aerospace components
Precision manufacturing with tight tolerances
Secure payment options including VTB support
Specification
Chemical Composition (wt.%)
| Element | Content (AMS 5391) |
|---|---|
| Chromium (Cr) | 12.00 – 14.00 |
| Molybdenum (Mo) | 3.80 – 5.20 |
| Niobium + Tantalum (Nb+Ta) | 1.80 – 2.80 |
| Aluminum (Al) | 5.50 – 6.50 |
| Titanium (Ti) | 0.50 – 1.00 |
| Carbon (C) | 0.08 – 0.20 |
| Boron (B) | 0.005 – 0.015 |
| Zirconium (Zr) | 0.05 – 0.15 |
| Silicon (Si) | ≤ 0.50 |
| Manganese (Mn) | ≤ 0.25 |
| Iron (Fe) | ≤ 2.50 |
| Copper (Cu) | ≤ 0.50 |
| Nickel (Ni) | Balance |
| Property | Value |
|---|---|
| Density | 7.91 g/cm³ |
| Melting Range | 1260 – 1288 °C |
| Thermal Expansion Coefficient | 5.92 – 9.48 ×10⁻⁶ /°F (70–2000°F) |
| Thermal Conductivity | 146 – 334 BTU·in/hr·ft⊃2;·°F |
| Tensile Strength | ≥ 760 MPa (110 ksi) |
| Yield Strength (0.2%) | ≥ 690 MPa (100 ksi) |
| Elongation | ≥ 3% |
| Hardness | HRC 30 – 42 |
| Creep Rupture Strength (980°C / 30h) | 152 MPa |
| Max Service Temperature | ≤ 900 °C |
Application Field
Inconel 713C rods are widely used in high-performance and mission-critical industries, including:
Military components and defense systems
Aerospace turbine blades and engine parts
Gas turbine components
High-temperature fasteners and structural parts
Power generation equipment
Industrial heat-resistant tooling
About us
CHANGZHOU DLX ALLOY CO, LTD was established in 2002 and has got ISO9001 International Quality Management System Certificate and SGS Certificate. Our factory is professional in researching and producing special alloy material. From melting, drawing, heat treatment, finishing and testing .We offer nickel-based, copper-based, and iron-based alloys, including super alloy, welding materials, anti-corrosion alloy, precision alloy, FeCrAl alloy, NiCr alloy, CuNi alloy, thermocouple and etc, in the form of wire, strip, ribbon, bar, tube, plate.
FAQ
A: It is primarily used in high-temperature environments such as aerospace engines, gas turbines, and military components due to its excellent creep and oxidation resistance.
A: Standard sizes include 80×780 mm, 80×880 mm, and 80×700 mm. Custom sizes are also available upon request.
A: Yes, Inconel 713C performs reliably at temperatures up to approximately 980°C (1800°F).
A: Yes, we support multiple secure payment options, including VTB payment, to facilitate international trade.
A: Absolutely. Its high strength, corrosion resistance, and thermal stability make it ideal for demanding military environments.
A: Yes, we can provide material test certificates (MTC) and other quality documentation upon request.
