CuNi1,CuNi2,CuNi6,CuNi8,CuNi10,CuNi14,CuNi19, CuNi23,CuNi30,CuNi34,CuNi40,CuNi44
DLX
bright
ISO9001, ROHS
5kg
Aviation, Electronics, Industrial, Medical, Chemical
Copper
Introduction
Engineered for medium-to-low temperature heating systems, Copper Nickel Heating Alloy Wire delivers exceptional electrical stability below 600°C. With precision copper matrix, it achieves near-constant resistivity temperature coefficient, guaranteeing thermal control accuracy in medical equipment and constant-temperature ovens.
Featuring superior sulfide corrosion resistance and cold-forming ductility with stable resistivity, it enables automated coiling processes. Widely used in marine dehumidifiers, chemical instrument heating tapes, and food processing temperature controls, maintaining extended service life even in corrosive media.
Copper Nickel Heating Alloy Wire exhibits superior resistance to corrosion, especially in seawater, due to its nickel content. This makes it ideal for use in marine environments, where the presence of salt and other chemicals can degrade traditional metals.
The alloy maintains its mechanical strength even in harsh conditions, providing a long service life for components made from it.
Copper Nickel Heating Alloy Wire offers moderate thermal conductivity, making it suitable for heat exchangers and other components requiring efficient heat dissipation.
Copper Nickel Heating Alloy Wire is compatible with marine life, making it safe for use in environments where organisms are present, such as in cooling systems of ships or marine platforms.
The alloy is easy to form, weld, and machine, offering flexibility for manufacturers who need to create intricate parts for marine use.
Specification
| Size Range | |
| Wire | 0.08-7.5mm |
| Ribbon | (0.05-0.35)*(0.5-6.0)mm |
| Strip | (0.50-2.5)*(5-180)mm |
| Rod | 8-50mm |
Properties Material | Resistivity 200c μΩ.m | Max working temperature (℃) | Tensile strength (Mpa) | Melting point (℃) | Density (g/cm³) | TCR X 10^(-6)/℃ (20-600℃) | EMF vs Cu (μV/℃)(0-100℃) |
| NC003 (CuNi1) | 0.03 | 200 | 210 | 1085 | 8.9 | <100 | -8 |
| NC005 (CuNi2) | 0.05 | 200 | 220 | 1090 | 8.9 | <120 | -12 |
| NC010 (CuNi6) | 0.1 | 220 | 250 | 1095 | 8.9 | <60 | -18 |
| NC012 (CuNi8) | 0.12 | 250 | 270 | 1097 | 8.9 | <57 | -22 |
| NC015 (CuNi10) | 0.15 | 250 | 290 | 1100 | 8.9 | <50 | -25 |
| NC020 (CuNi14) | 0.2 | 300 | 310 | 1115 | 8.9 | <30 | -28 |
| NC025 (CuNi19) | 0.25 | 300 | 340 | 1135 | 8.9 | <25 | -32 |
| NC030 (CuNi23) | 0.3 | 300 | 350 | 1150 | 8.9 | <16 | -34 |
| NC035 (CuNi30) | 0.35 | 350 | 400 | 1170 | 8.9 | <10 | -37 |
| NC040 (CuNi34) | 0.4 | 350 | 400 | 1180 | 8.9 | 0 | -39 |
| NC050 (CuNi44) | 0.5 | 400 | 420 | 1200 | 8.9 | <-6 | -43 |
Application Field
Copper Nickel Heating Alloy Wire is widely utilized across various industries due to its corrosion resistance and high-temperature strength. Here are five key application fields:
Copper Nickel Heating Alloy Wire is commonly used in the construction of ships and marine vessels, including components like propellers, hulls, and piping systems. Its corrosion resistance ensures that parts exposed to seawater do not suffer from rapid deterioration, providing extended operational lifespans.
One of the most significant applications of Copper Nickel is in marine heat exchangers. In these systems, the alloy is used to transfer heat between two fluids while preventing corrosion from saltwater. This is essential in systems like cooling systems for engines or other marine machinery.
Offshore oil and gas platforms rely heavily on Copper Nickel Heating Alloy for the construction of subsea structures, risers, and other parts that are exposed to the corrosive effects of seawater. The alloy’s resistance to biofouling and corrosion in extreme environments ensures the longevity of these vital components.
Copper Nickel Heating Alloy Wire is used in various types of piping systems, including those found in desalination plants, power stations, and ships. The alloy’s ability to resist corrosion under high pressure and saltwater conditions ensures the reliable transport of fluids and gases, reducing the risk of system failure.
In marine water treatment systems, Copper Nickel Heating Alloy is used for the construction of heat exchangers, condensers, and other components that are in constant contact with seawater. The alloy helps prevent corrosion and scaling, which can otherwise lead to system inefficiencies and costly repairs.
Our Advantage

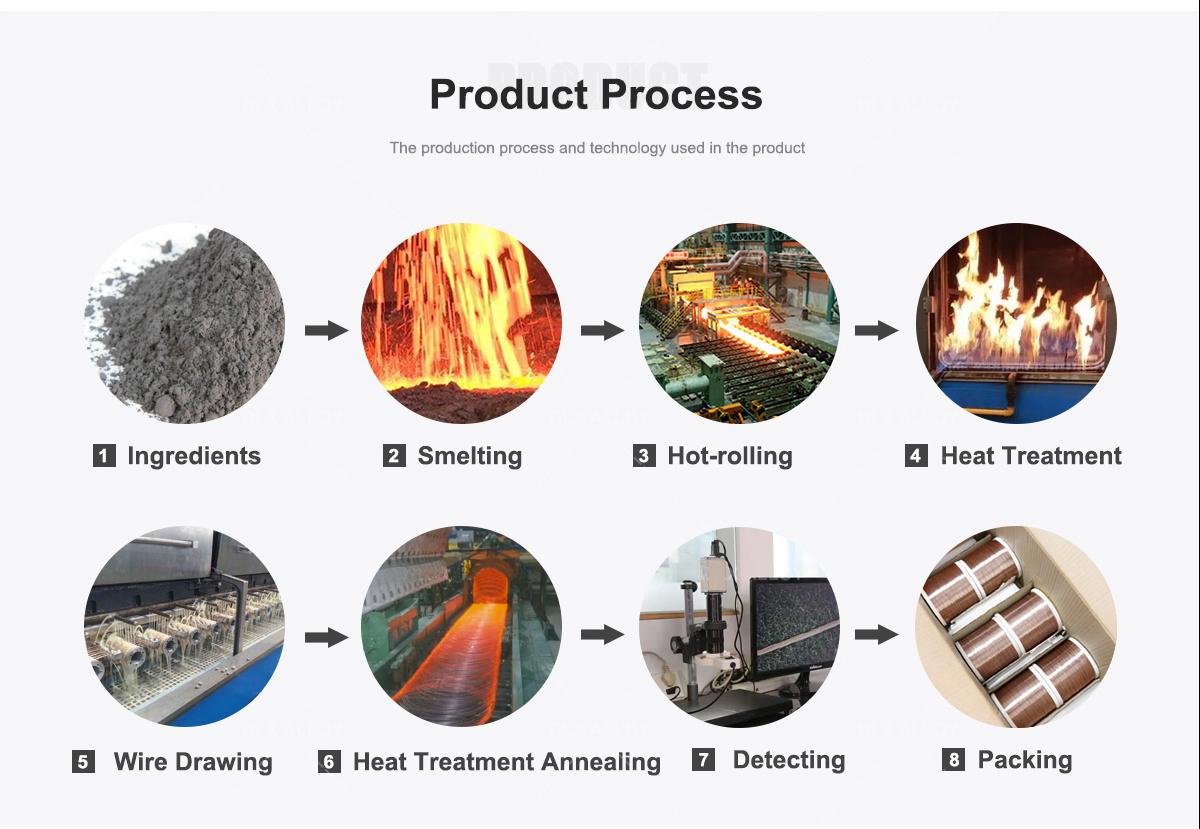

CHANGZHOU DLX ALLOY CO, LTD was established in 2002 and has got ISO9001 International Quality Management System Certificate and SGS Certificate. Our factory is professional in researching and producing special alloy material. From melting, drawing, heat treatment, finishing and testing .We offer nickel-based, copper-based, and iron-based alloys, including super alloy, welding materials, anti-corrosion alloy, precision alloy, FeCrAl alloy, NiCr alloy, CuNi alloy, thermocouple and etc, in the form of wire, strip, ribbon, bar, tube, plate.
1.Market Leader - Top 5 in China's nonferrous metal industry
2.Flexible products - Thousands of product specifications,Meet multiple needs of buyers
3.Low MOQ - Can customize samples
4.Short production lead time，fast delivery of whole cabinet
5.Professional inspection equipment - Before delivery, we will use spectrometers, tensile testers and other professional equipment to conduct a comprehensive inspection of the products to ensure that the goods are qualified for acceptance
6.Professional business team - Quickly responds to customer inquiries,24-hour professional quotation online The salesperson will follow the customer's requirements for the use of the product,Professionally recommend more appropriate performance and price products to customers
7.Intact packaging - Packaging according to customer needs.You can customize wooden boxes to ensure that the goods arrive at the destination in good condition
8.Various payment methods - Facilitate customer payment
9.Get good reviews from customers - Old customers have long-term cooperation,The longest is more than 7 years
10.Received various awards - Google is very recognized by us,They give us awards every year
FAQ
Factory Direct Supply with Competitive Wholesale Prices
Custom Sizes & Large Stock Availability
Fast Global Shipping & Reliable Industrial Supply
Guaranteed High Purity for Electronic & Industrial Applications
It depends on the quantity of the order, 10-30 days for small orders. For large orders, it takes 60 days.
Yes! We accept OEM/ODM production. You can send us your samples or drawings.
T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
Yes, you are welcome to visit our factory. We are glad to have the opportunity to get to know each other.
We manufacture our products in Jiangsu, China and ship them from China to your country as soon as possible, which usually depends on your product requirements and quantity.
Yes, we can.
