Product Description

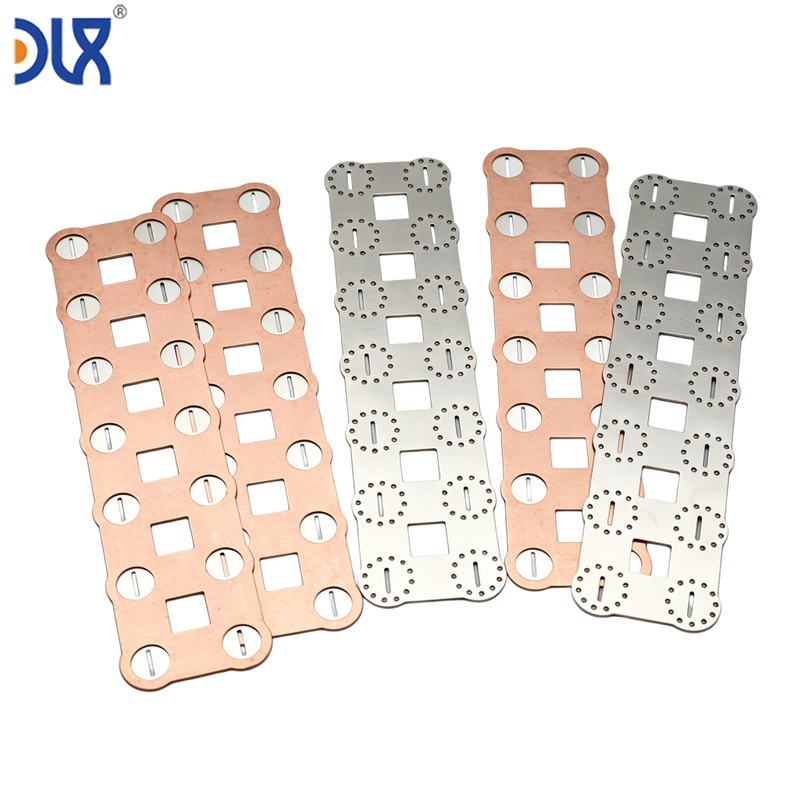

Our pure nickel copper composite sheet is a high-performance bimetallic material with one side pure nickel and one side pure copper. Produced through advanced roll-bonding technology, it forms a permanent metallurgical bond that unites copper’s superior electrical and thermal conductivity with nickel’s excellent weldability, surface durability, and corrosion resistance.
As an OEM custom pure nickel copper composite sheet, it is specifically engineered for demanding applications such as lithium-ion battery tabs, high-current connectors, and precision electronics. The dual-side design enables efficient current carrying on the copper side while allowing reliable spot welding and protection on the nickel side, delivering optimal performance and manufacturing efficiency.
Superior Processing Performance: Optimized for high-speed automated production, providing consistent flatness and edge quality that reduces machine downtime.
Dual-Metal Synergy: Eliminates the need for transitional plating or mechanical clamping, simplifying busbar design and improving reliability.
Fully Customizable OEM Supply: Flexible copper-to-nickel ratios, thickness, width, length, and surface finish available to match your production line and design specifications.
Total Quality Control: Integrated manufacturing from high-purity melting to precision slitting, ensuring 100% batch-to-batch consistency.
Specification
Attribute | Specification |
|---|---|
Availability | In Stock / Ready to Ship |
Material Structure | Bimetal: Pure Nickel (Ni) on Pure Copper (Cu) |
Bonding Interface | Permanent Metallurgical Fusion (Zero Delamination) |
Dispatch Time | Within 24-48 Hours for Stock Items |
Shipping Time | 7-20 Business Days (Global Express) |
MOQ | 10kg for Stock Items; 100kg for Wholesale OEM Contracts |
Material Layer | Ni (%) | Cu (%) | Fe (%) | C (%) | S (%) |
|---|---|---|---|---|---|
Pure Nickel Side | 99.6 min | 0.10 max | 0.10 max | 0.05 max | 0.005 max |
Pure Copper Side | - | 99.90 min | 0.005 max | - | 0.003 max |
Property | Pure Nickel (Ni) | Pure Copper (Cu) | Ni-Cu Bimetal (2:8) |
|---|---|---|---|
Density (g/cm³) | 8.89 | 8.96 | ~8.94 |
Conductivity (% IACS) | ~22 | 100 - 101 | 85 - 90 |
Thermal Conductivity (W/m·K) | 90.7 | 390 - 400 | ~325 |
Bond Strength (MPa) | - | - | ≥ 150 |
Features & Applications
Exceptional Electrical Conductivity: With values ≥85% IACS, our composite sheet minimizes energy loss, making it superior for high-current transfer applications.
Thermal Management Efficiency: The high-purity copper core provides thermal conductivity of ~385 W/m·K, effectively acting as an integrated heat spreader.
Soldering & Welding Excellence: The outer pure nickel layer ensures high-strength ultrasonic welding and lead-free soldering, protecting the copper core from oxidation.
Corrosion Resistance: The nickel layer provides a robust barrier against environmental moisture and salt spray, critical for battery terminals and outdoor electronics.
Power Electronics: Critical for IGBT baseplates, heat sinks for power transistors, and high-frequency inverter components.
Telecommunications: Applied in high-density connectors, microwave communication shielding, and power distribution modules.
Aerospace & Defense: Ideal for lightweight, high-reliability electronic housing and current-carrying components in aircraft systems.
Semiconductor Packaging: Used as lead frames and substrate materials for high-power LED modules requiring rapid heat dissipation.
DLX Advantage
Changzhou Dingli Alloy Co., Ltd is more than just a manufacturer; we are a partner in precision. Our identity is defined by "All-Process Control and Material DNA." From the initial melt of raw nickel to the final precision slitting of the clad strip, we maintain a tight process window that guarantees material consistency across every batch. With a 12,000 m² state-of-the-art facility, we have specialized in high-performance composite metals since 2002. Our engineering gene is focused on the atomic-level stability of multi-metal interfaces, providing the global electronic and automotive sectors with the most reliable OEM custom Pure Nickel Copper Composite materials on the market.
We also offer nickel-based, copper-based, and iron-based alloys, including super alloy, welding materials, anti-corrosion alloy, precision alloy, FeCrAl alloy, NiCr alloy, CuNi alloy, thermocouple and etc, in the form of wire, strip, ribbon, bar, tube, plate.
FAQ
A: It combines copper’s high electrical and thermal conductivity with nickel’s excellent weldability and corrosion resistance, resulting in lower resistance, better heat dissipation, easier assembly, and improved durability versus single-metal options.
Q2: Is this pure nickel copper composite sheet suitable for lithium battery tabs?
A: Yes. It is widely used for LIB negative electrode tabs and interconnects because the copper side provides high current-carrying capacity while the nickel side enables reliable and efficient spot welding.
Q3: Can you provide full OEM customization for this composite sheet?
A: Absolutely. We offer complete OEM customization including copper-to-nickel thickness ratio, total thickness, width, length, temper, surface finish, and packaging to exactly match your technical drawings and production requirements.
