Customized service available
DLX
Bright
ISO9001/ CE/ROHS
10kg
10-25 days
Battery,Power,Industry,Energy
One Side Pure Cu, One Side Pure Ni
Product Description
Our industrial Cu-Ni clad plate is a high-purity bimetallic composite with one side pure copper (Cu) and one side pure nickel (Ni). Produced through advanced metallurgical bonding technology, it delivers the high electrical and thermal conductivity of copper together with the excellent weldability, corrosion resistance, and surface stability of nickel.
This high-purity copper nickel clad plate is specially optimized for energy storage applications, including lithium-ion battery systems, stationary energy storage (ESS), and industrial high-current interconnects. It enables lower internal resistance, improved thermal management, and reliable long-term performance in demanding energy storage environments.
Industrial-Grade High Purity & Bond Strength: High-purity materials with strong metallurgical bonding prevent delamination under high current, thermal cycling, and mechanical stress.
Dual-Metal Synergy: Eliminates the need for transitional plating or mechanical clamping, simplifying busbar design and improving reliability.
Proven Industrial Scale: 12,000 m² facility dedicated to dissimilar metal bonding, ensuring stable supply for multi-ton global contracts.
Fully Customizable OEM Supply: Flexible copper-to-nickel ratios, thickness, width, length, and surface finish available to match your production line and design specifications.
Total Quality Control: Integrated manufacturing from high-purity melting to precision slitting, ensuring 100% batch-to-batch consistency.
Specification
Attribute | Specification |
|---|---|
Availability | In Stock / Ready to Ship |
Material Structure | Bimetal: Pure Nickel (Ni) on Pure Copper (Cu) |
Bonding Interface | Permanent Metallurgical Fusion (Zero Delamination) |
Dispatch Time | Within 24-48 Hours for Stock Items |
Shipping Time | 7-20 Business Days (Global Express) |
MOQ | 10kg for Stock Items; 100kg for Wholesale OEM Contracts |
Material Layer | Ni (%) | Cu (%) | Fe (%) | C (%) | S (%) |
|---|---|---|---|---|---|
Pure Nickel Side | 99.6 min | 0.10 max | 0.10 max | 0.05 max | 0.005 max |
Pure Copper Side | - | 99.90 min | 0.005 max | - | 0.003 max |
Property | Pure Nickel (Ni) | Pure Copper (Cu) | Ni-Cu Bimetal (2:8) |
|---|---|---|---|
Density (g/cm³) | 8.89 | 8.96 | ~8.94 |
Conductivity (% IACS) | ~22 | 100 - 101 | 85 - 90 |
Thermal Conductivity (W/m·K) | 90.7 | 390 - 400 | ~325 |
Bond Strength (MPa) | - | - | ≥ 150 |
Features & Applications
Superior thermal conductivity supporting better heat management in lithium battery packs
Outstanding weldability on the nickel side while the copper side carries high current loads
Strong metallurgical bond resistant to delamination under forming, welding, and thermal cycling
Excellent formability for precision stamping and high-volume battery component manufacturing

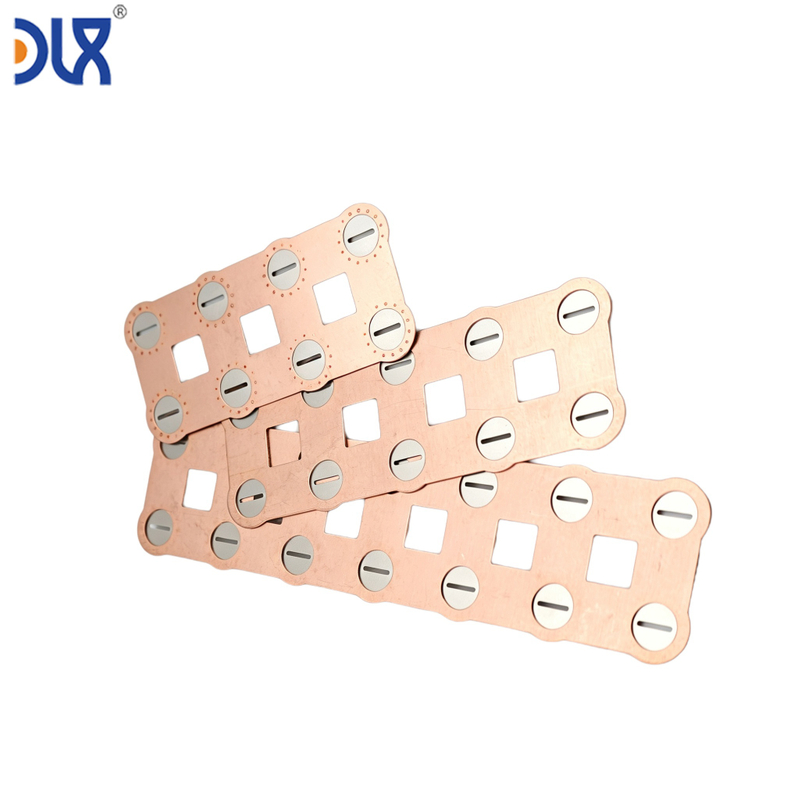

Lithium-ion battery tabs and interconnects for energy storage systems (ESS) and stationary storage
High-current busbars and connectors in industrial energy storage and battery energy storage systems (BESS)
Electric vehicle and energy storage battery module interconnects
Power conversion system (PCS) and inverter-related high-conductivity components
Industrial battery packs, backup power systems, and grid-scale energy storage equipment
Transition joints and high-reliability electrical components requiring copper conductivity with nickel weldability
DLX Advantage
Changzhou DLX Alloy Co., Ltd. stands as a pillar of reliability in the global bimetallic and specialty alloy industry. With a sprawling 12,000 m² facility, we have integrated the entire manufacturing value chain—from high-purity melting and advanced metallurgical bonding to precision finishing and automated slitting.
We also offer nickel-based, copper-based, and iron-based alloys, including super alloy, welding materials, anti-corrosion alloy, precision alloy, FeCrAl alloy, NiCr alloy, CuNi alloy, thermocouple and etc, in the form of wire, strip, ribbon, bar, tube, plate.
FAQ
A: It combines the high electrical and thermal conductivity of copper with the excellent weldability and corrosion resistance of nickel, resulting in lower resistance, better heat management, and more reliable connections in large-scale energy storage systems.
A: Yes. One-side copper one-side nickel clad plates are widely used for lithium battery tabs and interconnects in energy storage systems because they provide high current-carrying capacity and a nickel surface that enables strong, reliable welding.
A: Absolutely. We offer flexible thickness ratios, total thickness, width, length, and temper options to meet the specific requirements of industrial energy storage system designs and production lines.
