Customized service available
DLX
Bright
ISO9001/ CE/ROHS
10kg
10-25 days
Battery,Power,Industry,Energy
One Side Pure Cu, One Side Pure Ni
Product Description

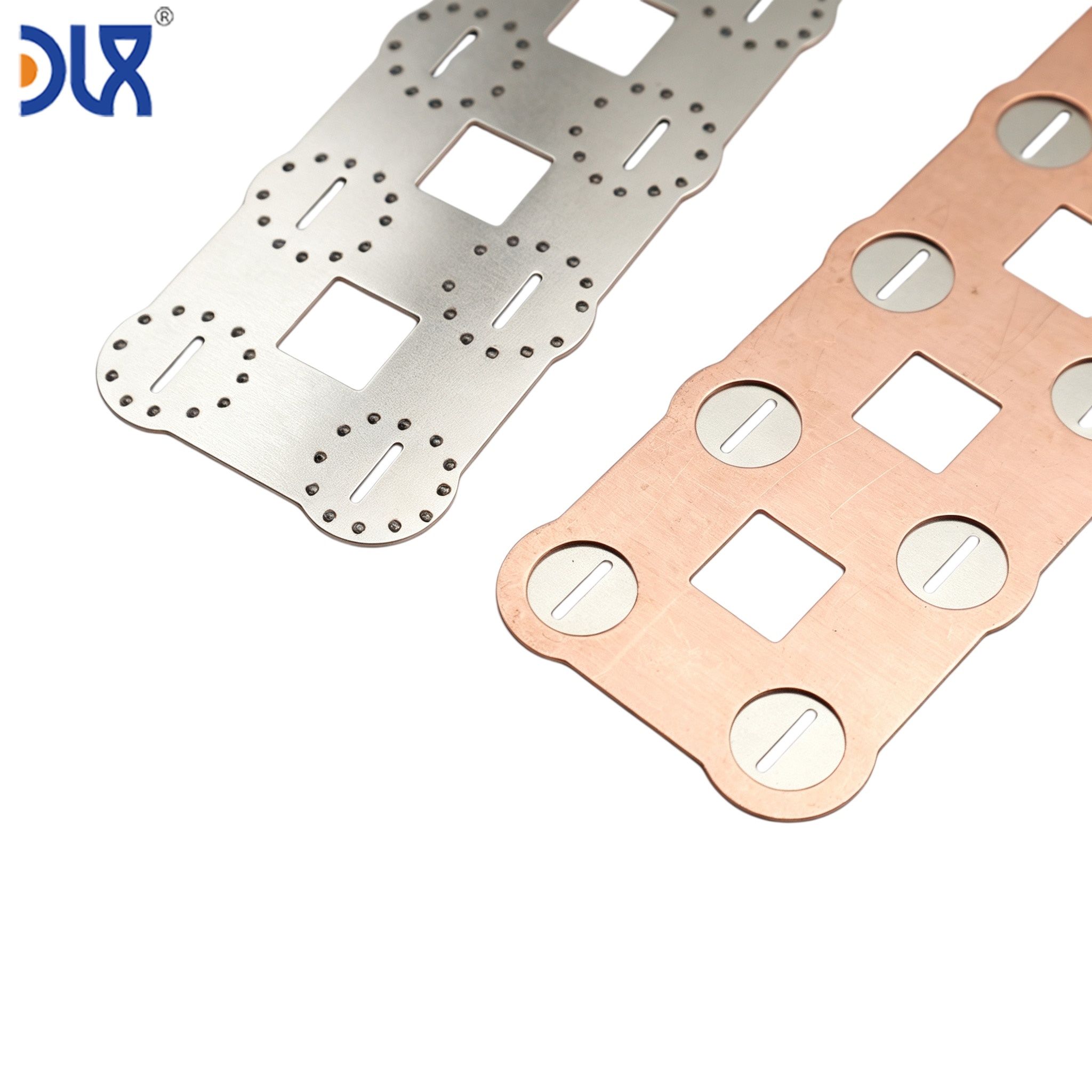

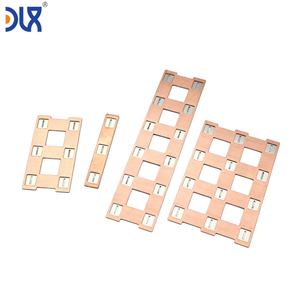

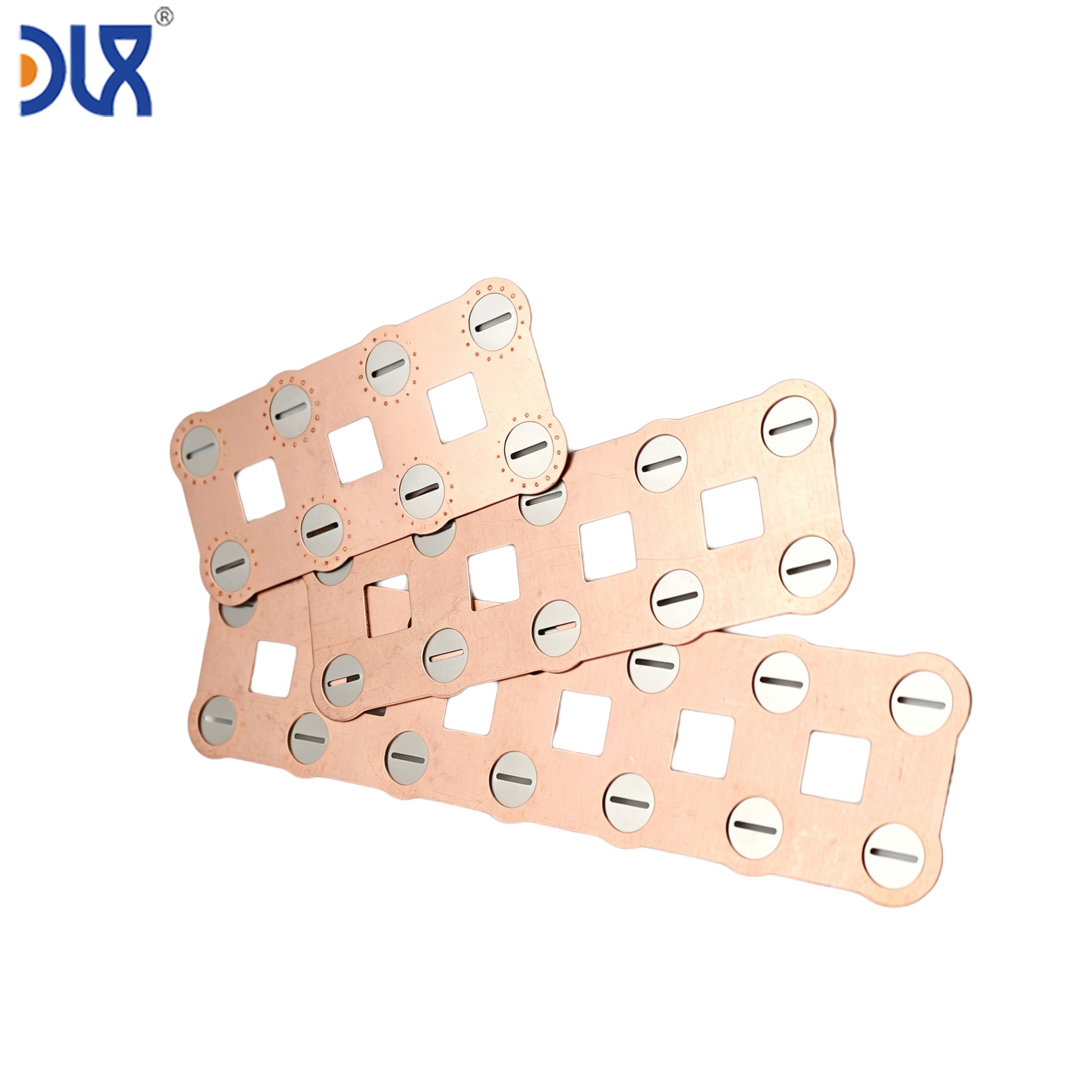

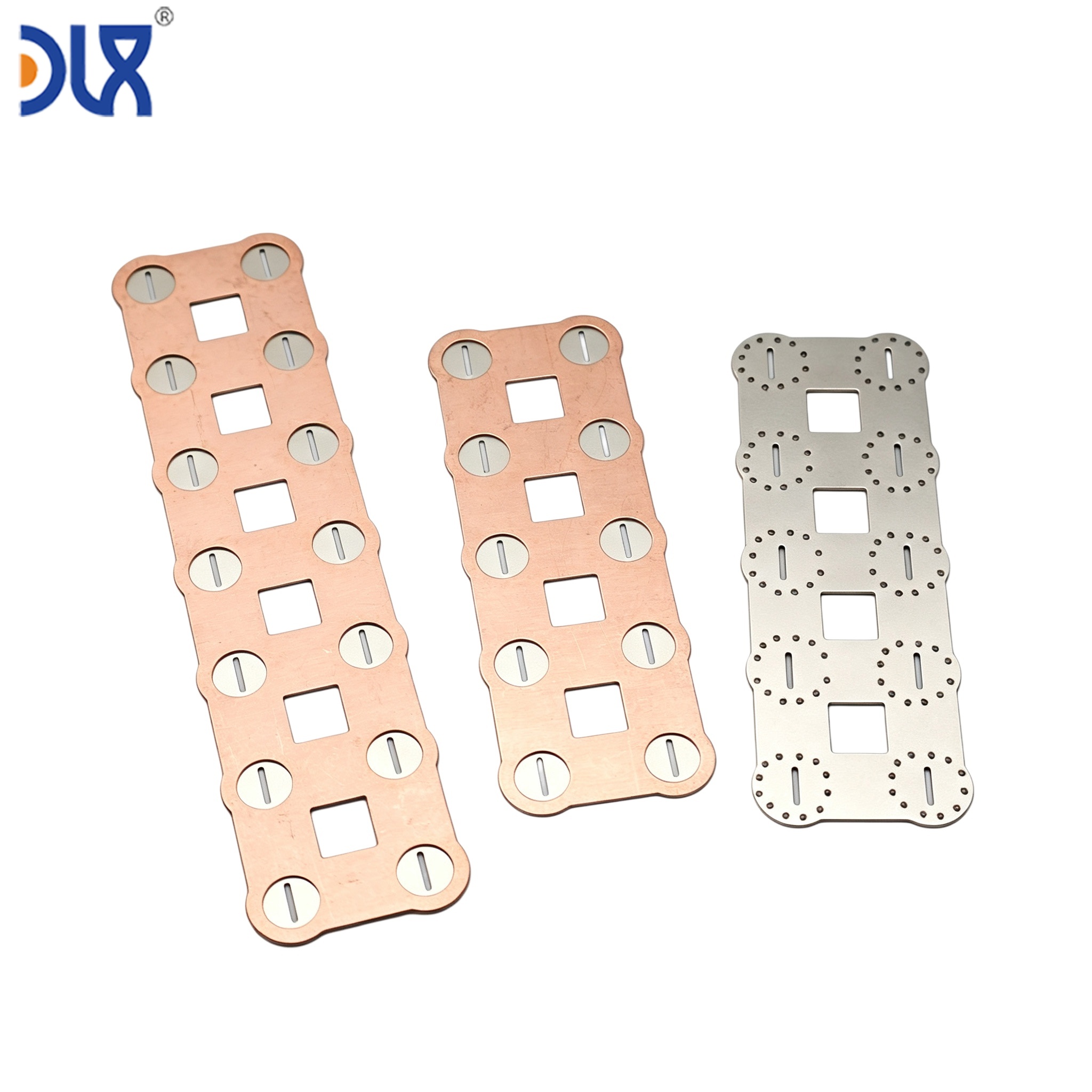

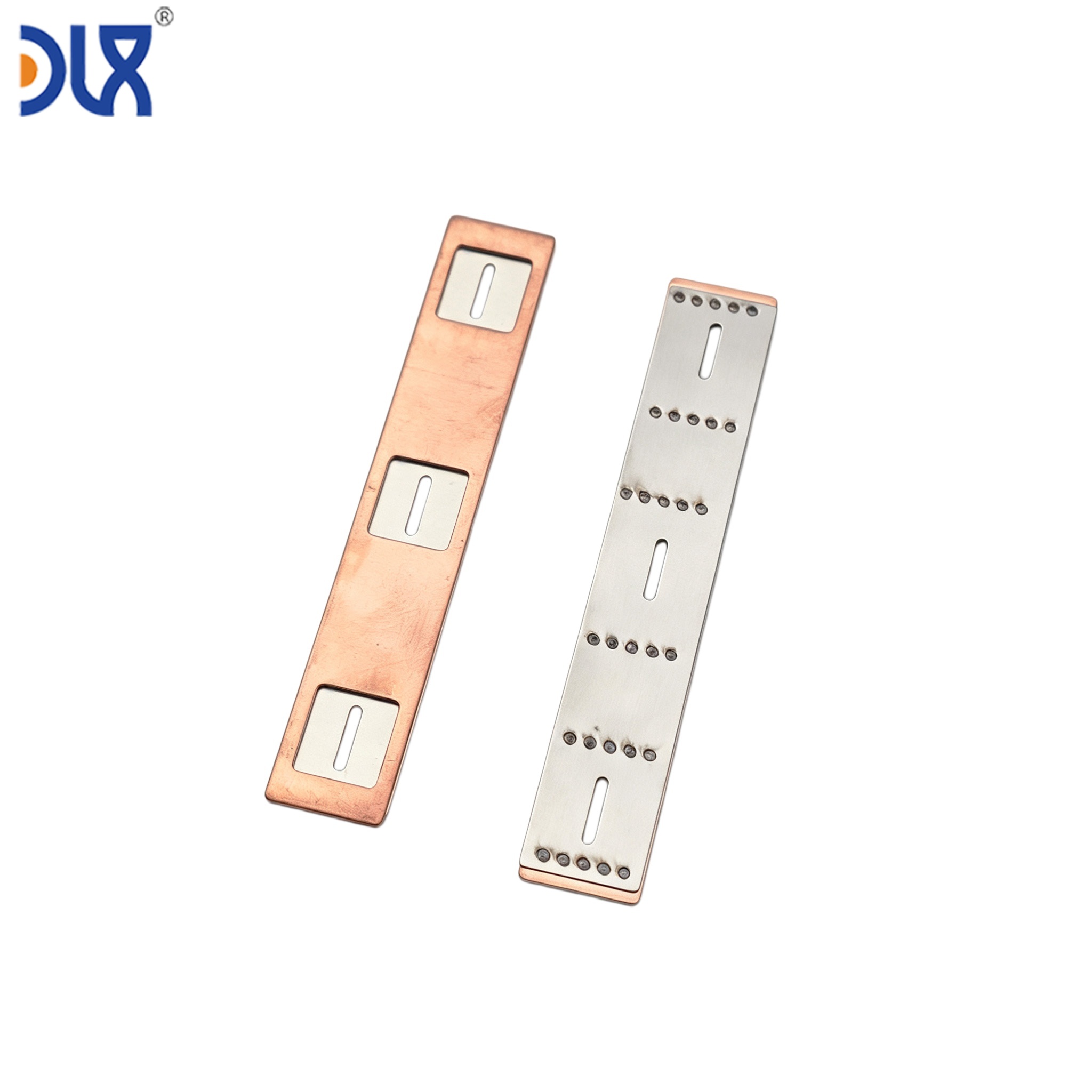

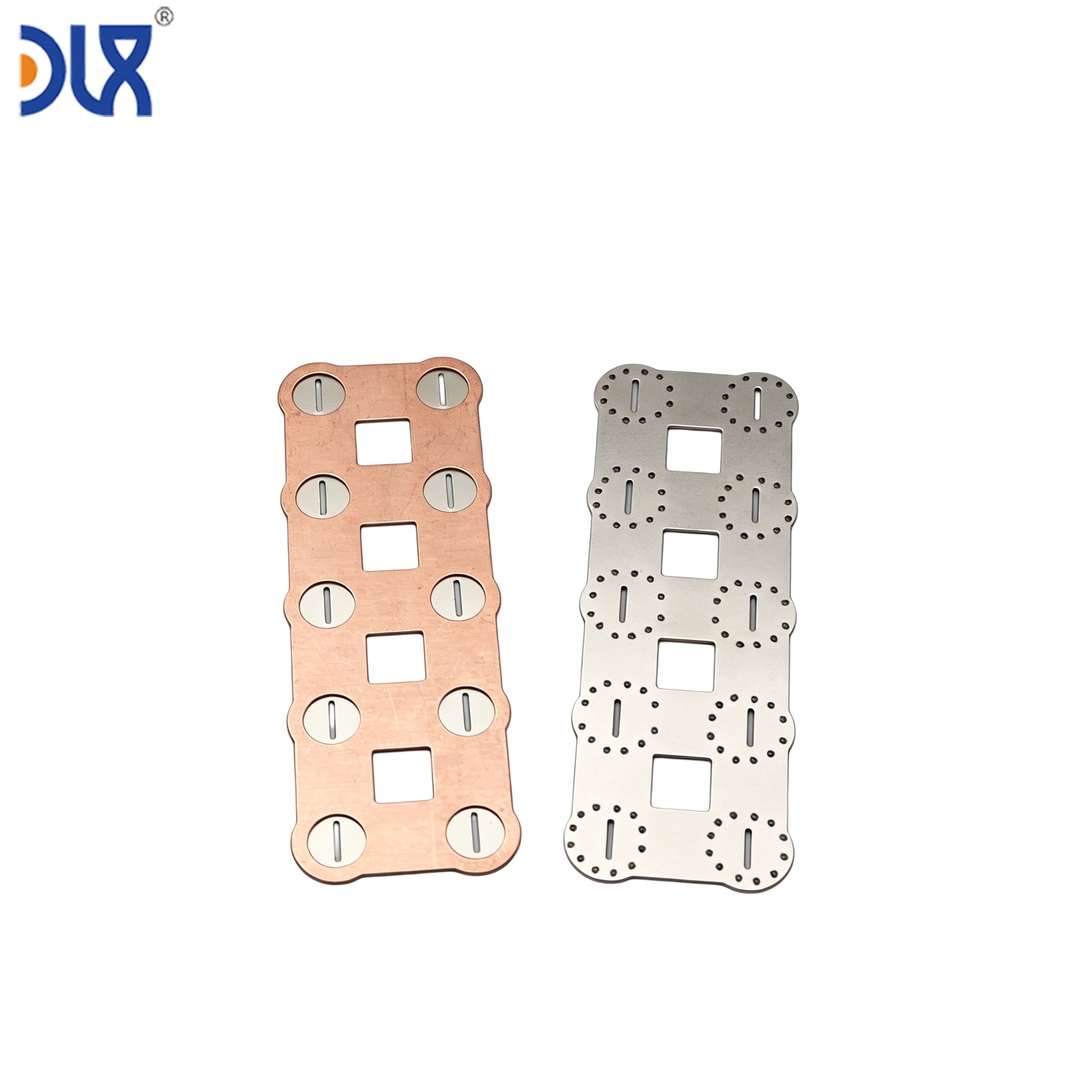

Our wholesale nickel copper composite sheet is a premium bimetallic material with one side pure nickel and one side pure copper, engineered specifically for power electronics applications. Produced through advanced metallurgical bonding technology, it creates a strong, reliable interface that leverages copper’s exceptional electrical and thermal conductivity together with nickel’s superior weldability and corrosion resistance.
This nickel copper composite sheet is widely used in power modules, IGBT modules, battery systems, busbars, and other high-current power electronics components. Available in wholesale quantities with flexible customization options, it helps manufacturers reduce resistance, improve heat dissipation, and enhance overall system reliability.
Industrial-Grade High Purity & Bond Strength: High-purity materials with strong metallurgical bonding prevent delamination under high current, thermal cycling, and mechanical stress.
Dual-Metal Synergy: Eliminates the need for transitional plating or mechanical clamping, simplifying busbar design and improving reliability.
Fully Customizable OEM Supply: Flexible copper-to-nickel ratios, thickness, width, length, and surface finish available to match your production line and design specifications.
Total Quality Control: Integrated manufacturing from high-purity melting to precision slitting, ensuring 100% batch-to-batch consistency.
Specification
Attribute | Specification |
|---|---|
Availability | In Stock / Ready to Ship |
Material Structure | Bimetal: Pure Nickel (Ni) on Pure Copper (Cu) |
Bonding Interface | Permanent Metallurgical Fusion (Zero Delamination) |
Dispatch Time | Within 24-48 Hours for Stock Items |
Shipping Time | 7-20 Business Days (Global Express) |
MOQ | 10kg for Stock Items; 100kg for Wholesale OEM Contracts |
Material Layer | Ni (%) | Cu (%) | Fe (%) | C (%) | S (%) |
|---|---|---|---|---|---|
Pure Nickel Side | 99.6 min | 0.10 max | 0.10 max | 0.05 max | 0.005 max |
Pure Copper Side | - | 99.90 min | 0.005 max | - | 0.003 max |
Property | Pure Nickel (Ni) | Pure Copper (Cu) | Ni-Cu Bimetal (2:8) |
|---|---|---|---|
Density (g/cm³) | 8.89 | 8.96 | ~8.94 |
Conductivity (% IACS) | ~22 | 100 - 101 | 85 - 90 |
Thermal Conductivity (W/m·K) | 90.7 | 390 - 400 | ~325 |
Bond Strength (MPa) | - | - | ≥ 150 |
Features & Applications
Permanent Atomic Fusion: Our high-pressure cold-rolling technology ensures the nickel and copper layers are inseparable, maintaining a shear strength of ≥150 MPa suitable for high-vibration automotive and industrial use.
Superior Conductivity Synergy: Leveraging a pure copper base (≥100% IACS), the clad plate achieves conductivity ≥88% IACS, providing a high-speed electrical highway with minimal resistance.
Weld-Ready Nickel Surface: The pure nickel side (≥99.6%) offers a stable, oxide-free interface for high-reliability fiber laser, ultrasonic, and spot welding to cell terminals or busbars.
Passive Thermal Management: With thermal conductivity ≥330 W/m·K, the copper core acts as a high-speed heat sink, preventing hotspots during high-current discharge or fast charging.
Power module interconnects and lead frames in IGBT, MOSFET, and SiC modules
High-current busbars and terminals for EV inverters and onboard chargers
Battery interconnects and tabs in energy storage and electric vehicle systems
Heat spreaders and thermal management components in power electronics assemblies
Industrial power converters, UPS systems, and high-power electronic devices
Wholesale supply for power electronics manufacturers requiring reliable Cu-Ni clad materials
DLX Advantage
Changzhou DLX Alloy Co., Ltd. stands as a pillar of reliability in the global bimetallic and specialty alloy industry. With a sprawling 12,000 m² facility, we have integrated the entire manufacturing value chain—from high-purity melting and advanced metallurgical bonding to precision finishing and automated slitting.
We also offer nickel-based, copper-based, and iron-based alloys, including super alloy, welding materials, anti-corrosion alloy, precision alloy, FeCrAl alloy, NiCr alloy, CuNi alloy, thermocouple and etc, in the form of wire, strip, ribbon, bar, tube, plate.
FAQ
A: It combines the high electrical and thermal conductivity of copper with the excellent weldability and corrosion resistance of nickel, resulting in lower power loss, better heat management, and easier assembly compared with pure nickel or pure copper alone.
A: Yes. We specialize in wholesale supply of nickel copper composite sheet with competitive pricing, stable quality, and flexible order quantities to support large-scale power electronics manufacturing.
A: Absolutely. We offer customizable nickel-to-copper thickness ratios, total thickness, width, length, and temper to match the specific requirements of your power modules, busbars, or interconnect designs.
A: The copper side provides low-resistance current paths and efficient heat spreading, while the nickel side enables strong and reliable welding. This combination reduces voltage drop, lowers operating temperature, and enhances overall module reliability.
