DLX
Customized Size
10PCS
Battery
Copper Nickel
Product Description

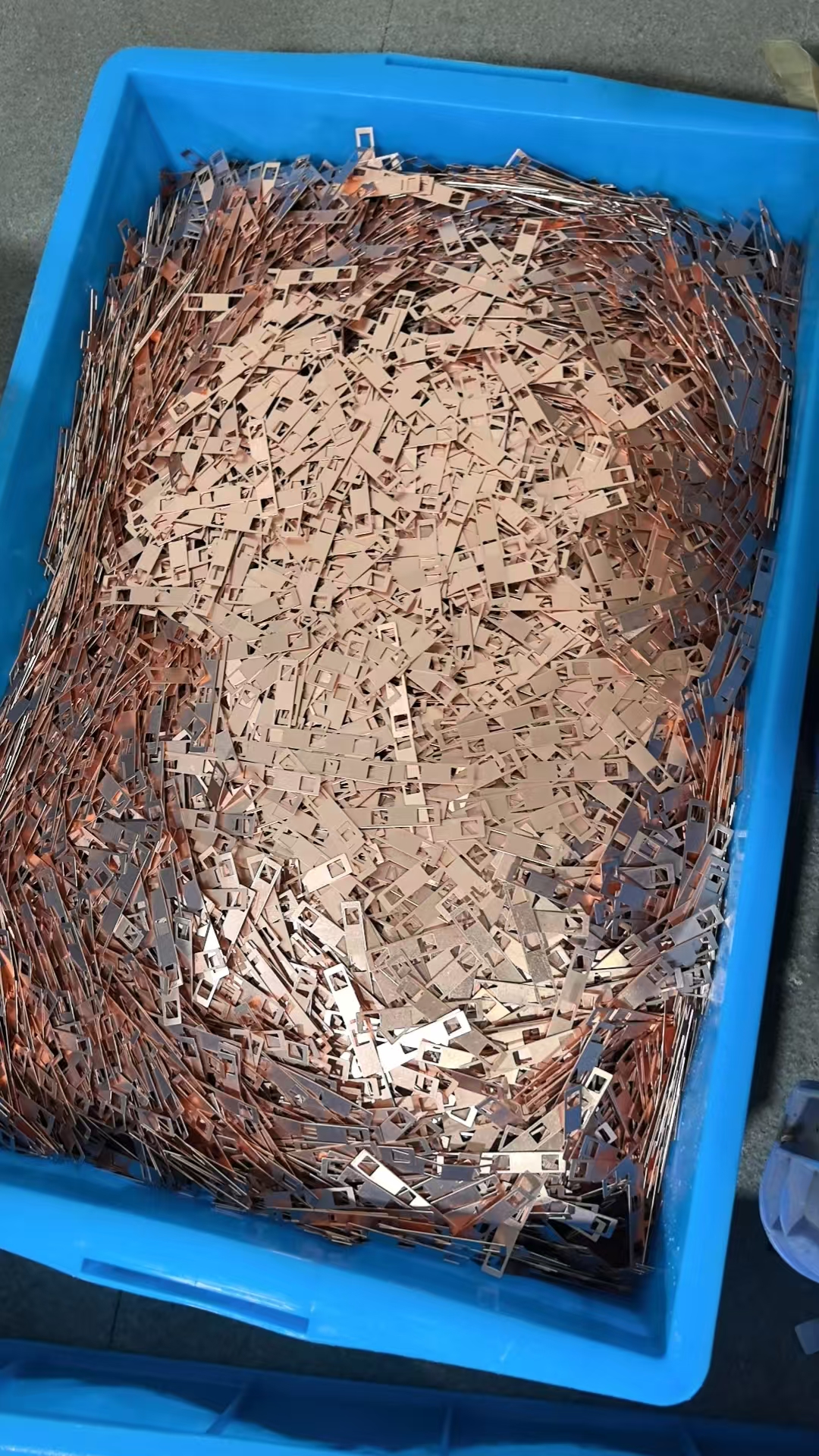

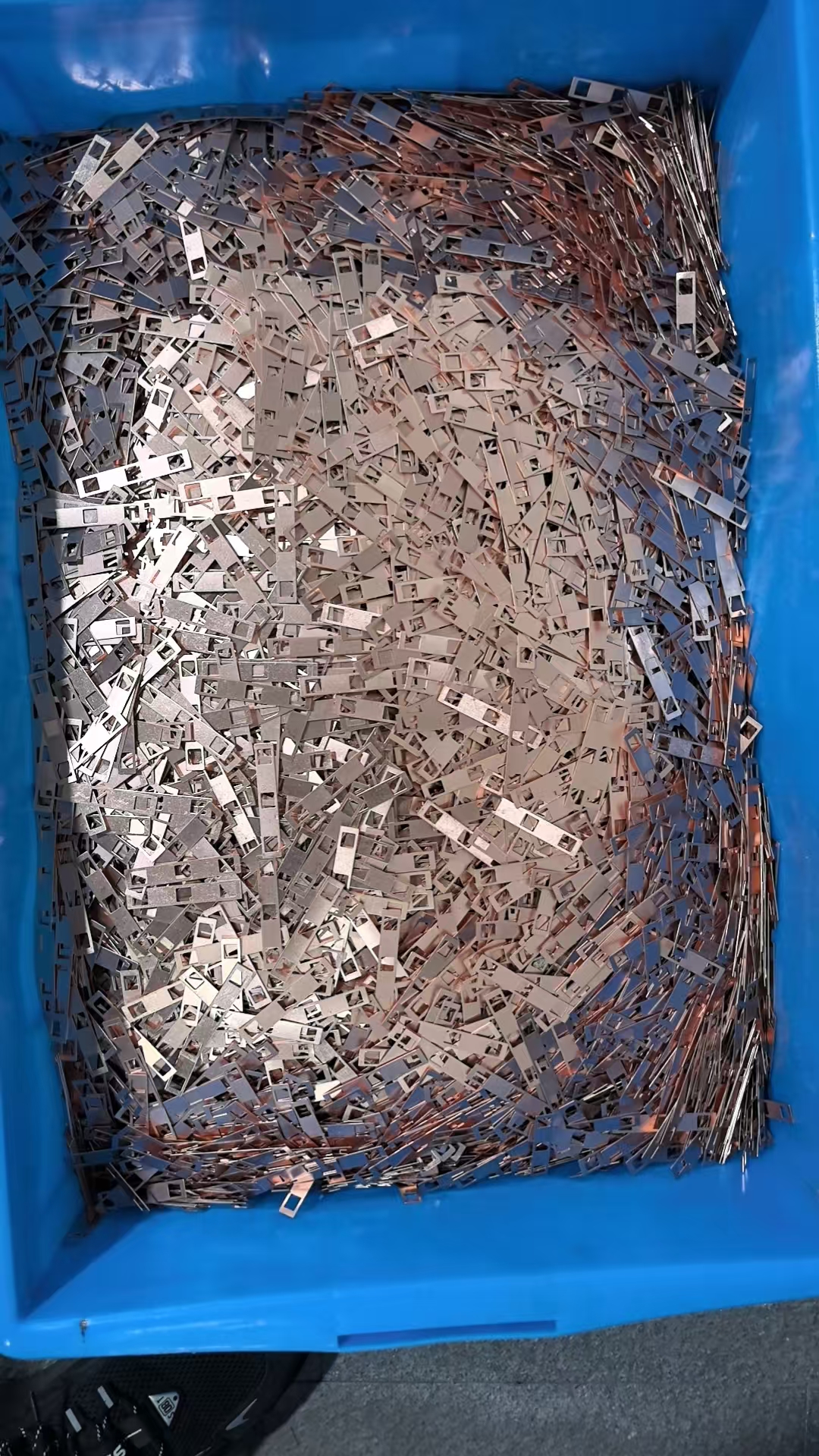

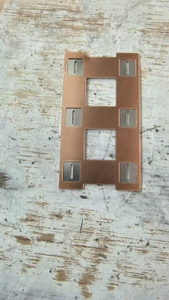

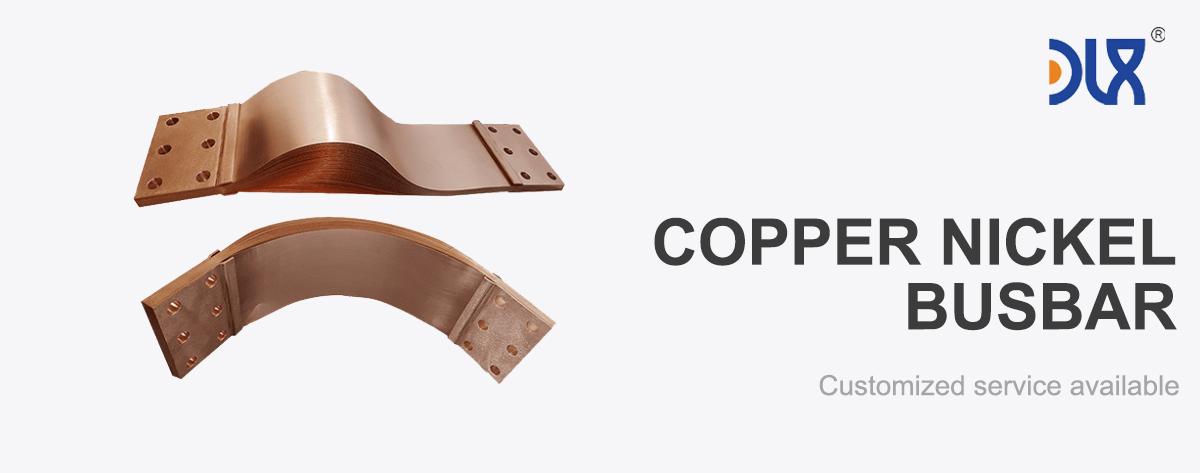

Copper Nickel Busbar is a high-performance electrical conductor engineered from copper-nickel alloys or nickel-plated copper substrates, renowned for its superior blend of conductivity and resilience. This copper nickel composite leverages the inherent strengths of copper for optimal current flow while incorporating nickel for enhanced protection against environmental degradation.

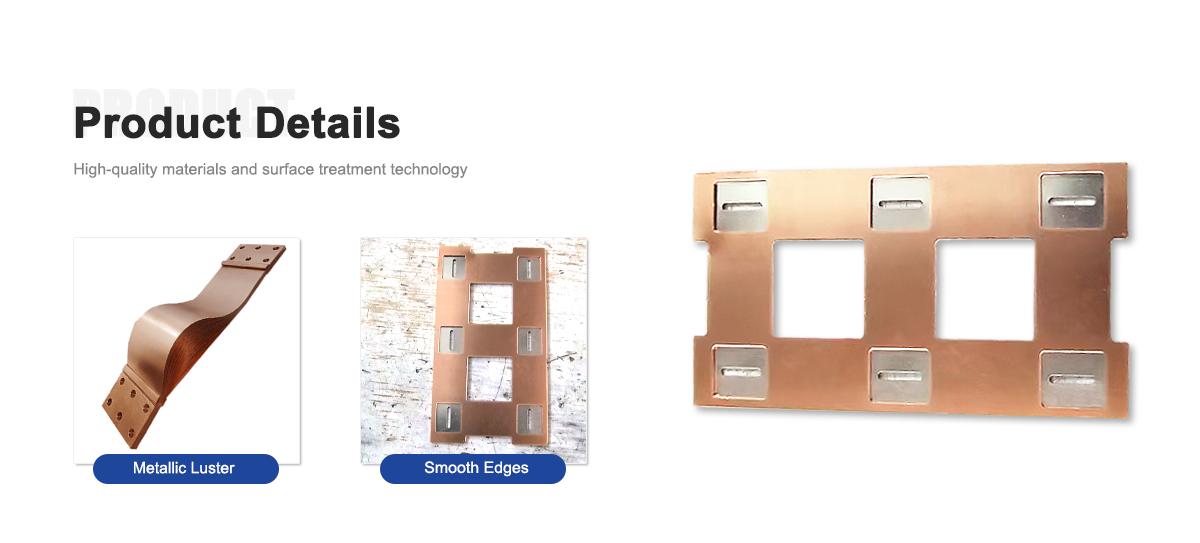

The Copper Nickel Busbar typically features a base of high-purity copper overlaid with a precise nickel layer, ensuring robust performance in power distribution systems. As a leading copper nickel busbar supplier, DLX provides customizable solutions that meet exacting requirements for electrical efficiency and longevity. Ideal for high-current scenarios, the Copper Nickel Busbar excels in environments demanding reliable, low-resistance connections.
Delivers efficient power transmission with minimal energy loss, making it a top choice for high-current Copper Nickel Busbar applications.
The nickel component shields against moisture, salt, and chemicals, ensuring the Copper Nickel Busbar performs reliably in corrosive environments like seawater or industrial settings.
Withstands elevated temperatures without degradation, ideal for demanding Copper Nickel Busbar uses in power electronics and substations.
Nickel plating boosts mechanical strength, allowing the Premium Copper Nickel Busbar to endure repeated stress and vibrations.
Reduces downtime with its robust design, providing cost-effective performance over extended periods for Copper Nickel Busbar installations.
Specification
| Size Range | |
| Wire | 0.08-7.5mm |
| Ribbon | (0.05-0.35)*(0.5-6.0)mm |
| Strip | (0.50-2.5)*(5-180)mm |

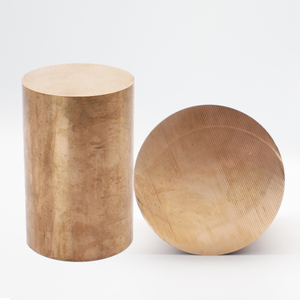

| Rod | 8-50mm |
Properties Material | Resistivity 200c μΩ.m | Max working temperature (℃) | Tensile strength (Mpa) | Melting point (℃) | Density (g/cm³) | TCR X 10^(-6)/℃ (20-600℃) | EMF vs Cu (μV/℃)(0-100℃) |
| NC003 (CuNi1) | 0.03 | 200 | 210 | 1085 | 8.9 | <100 | -8 |
| NC005 (CuNi2) | 0.05 | 200 | 220 | 1090 | 8.9 | <120 | -12 |
| NC010 (CuNi6) | 0.1 | 220 | 250 | 1095 | 8.9 | <60 | -18 |
| NC012 (CuNi8) | 0.12 | 250 | 270 | 1097 | 8.9 | <57 | -22 |
| NC015 (CuNi10) | 0.15 | 250 | 290 | 1100 | 8.9 | <50 | -25 |
| NC020 (CuNi14) | 0.2 | 300 | 310 | 1115 | 8.9 | <30 | -28 |
| NC025 (CuNi19) | 0.25 | 300 | 340 | 1135 | 8.9 | <25 | -32 |
| NC030 (CuNi23) | 0.3 | 300 | 350 | 1150 | 8.9 | <16 | -34 |
| NC035 (CuNi30) | 0.35 | 350 | 400 | 1170 | 8.9 | <10 | -37 |
| NC040 (CuNi34) | 0.4 | 350 | 400 | 1180 | 8.9 | 0 | -39 |
| NC050 (CuNi44) | 0.5 | 400 | 420 | 1200 | 8.9 | <-6 | -43 |
Application Field
Harnessing the combined strengths of copper's conductivity and nickel's resilience, the Copper Nickel Busbar is indispensable in high-stakes environments requiring reliable power distribution. Key applications include:
Essential for switchgear, substations, and electrical panels where the Copper Nickel Busbar ensures efficient current flow and corrosion protection.
Utilized in shipboard wiring and offshore platforms, leveraging the Copper Nickel Busbar's resistance to saltwater and harsh marine conditions.
Critical in solar inverters and wind turbine systems, where the Premium Copper Nickel Busbar supports high-efficiency power management in outdoor exposures.
Employed in robotics and manufacturing equipment for its durability, making the Copper Nickel Busbar a go-to for vibration-prone setups.
Powers electric vehicle infrastructure and battery packs, benefiting from the Copper Nickel Busbar's thermal stability and conductivity.
DLX Advantage
CHANGZHOU DLX ALLOY CO, LTD was established in 2002 and has got ISO9001 International Quality Management System Certificate and SGS Certificate. Our factory is professional in researching and producing special alloy material. From melting, drawing, heat treatment, finishing and testing .We offer nickel-based, copper-based, and iron-based alloys, including super alloy, welding materials, anti-corrosion alloy, precision alloy, FeCrAl alloy, NiCr alloy, CuNi alloy, thermocouple and etc, in the form of wire, strip, ribbon, bar, tube, plate.
1.Market Leader - Top 5 in China's nonferrous metal industry
2.Flexible products - Thousands of product specifications,Meet multiple needs of buyers
3.Low MOQ - Can customize samples
4.Short production lead time，fast delivery of whole cabinet

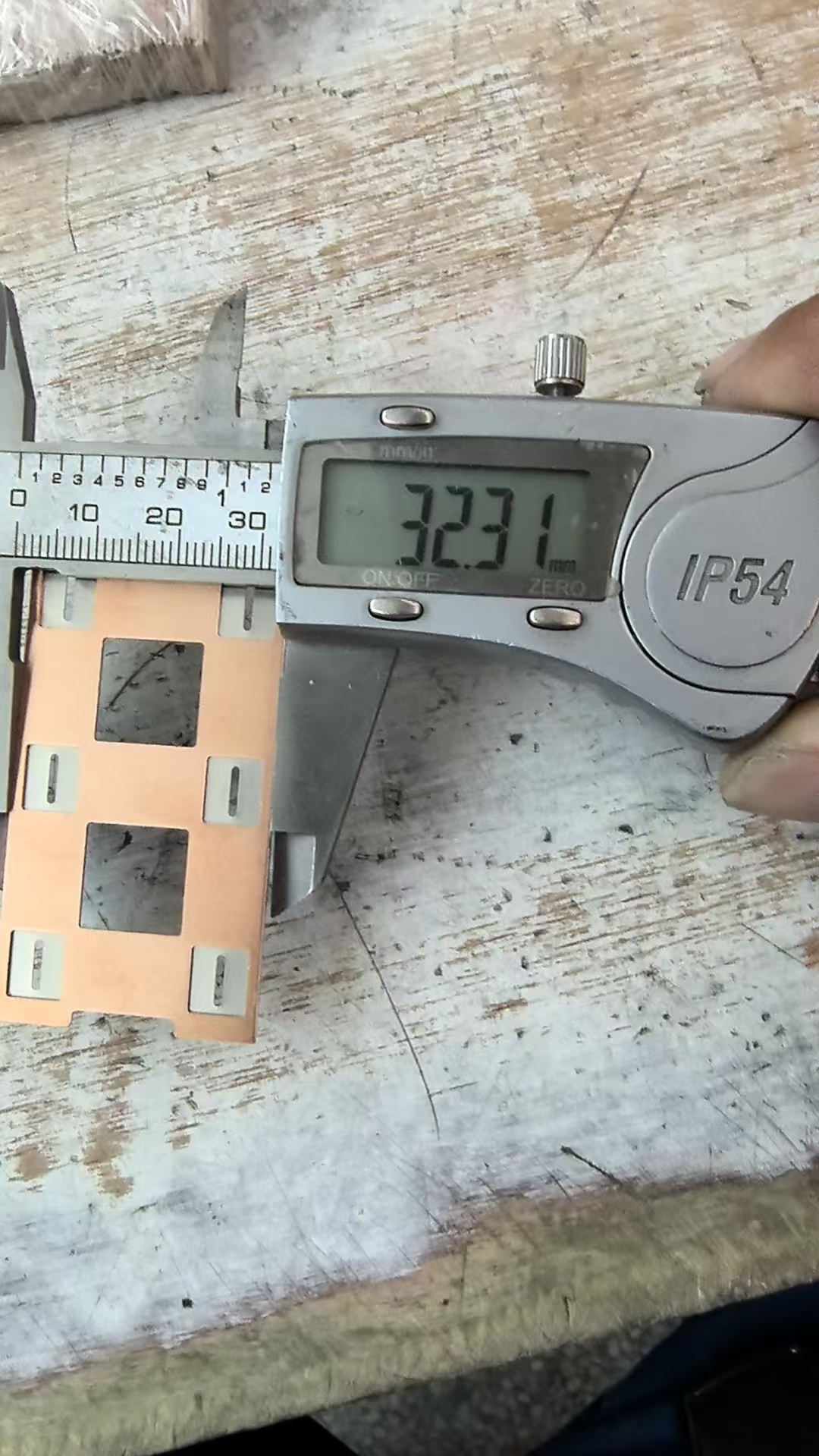

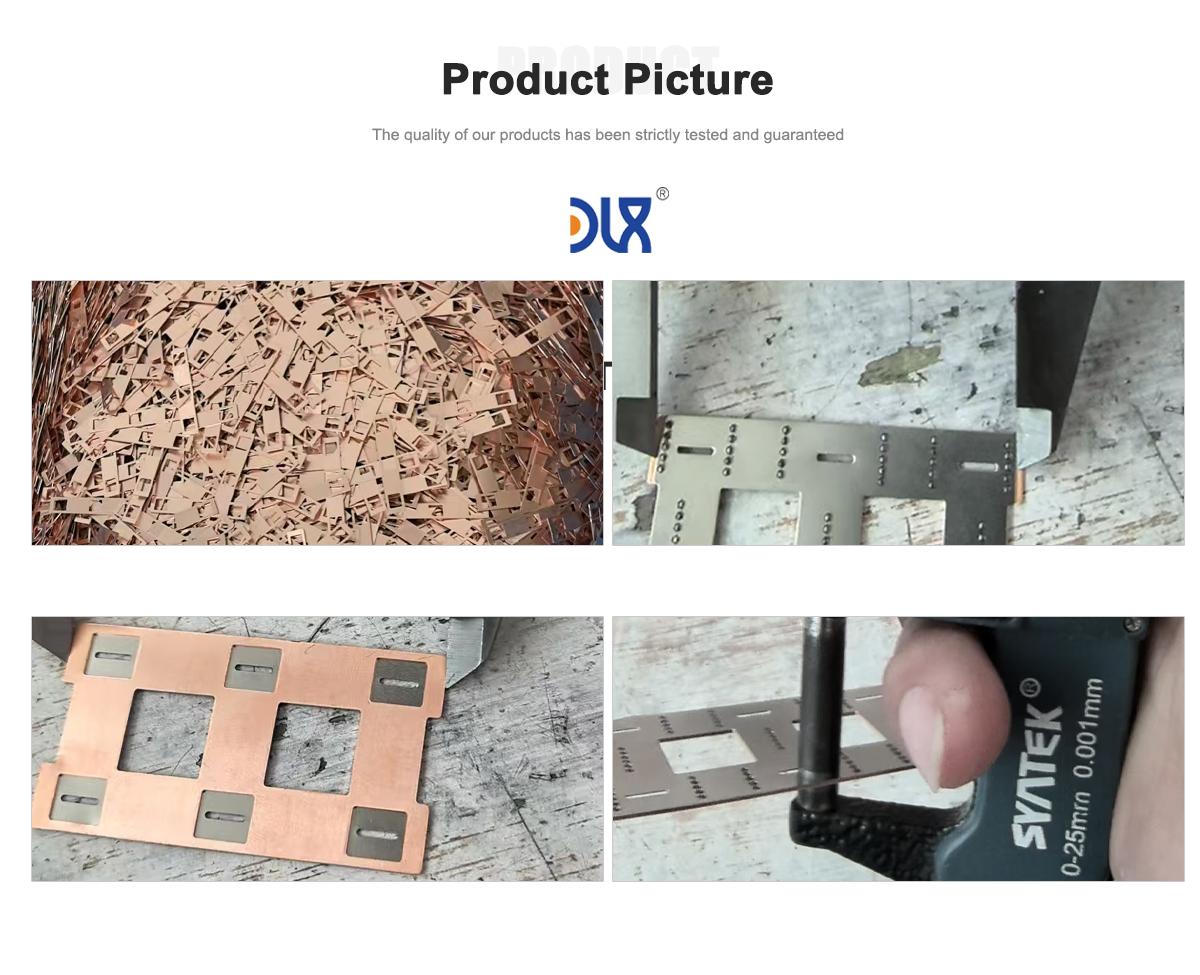

5.Professional inspection equipment - Before delivery, we will use spectrometers, tensile testers and other professional equipment to conduct a comprehensive inspection of the products to ensure that the goods are qualified for acceptance
6.Professional business team - Quickly responds to customer inquiries,24-hour professional quotation online The salesperson will follow the customer's requirements for the use of the product,Professionally recommend more appropriate performance and price products to customers
7.Intact packaging - Packaging according to customer needs.You can customize wooden boxes to ensure that the goods arrive at the destination in good condition
8.Various payment methods - Facilitate customer payment
9.Get good reviews from customers - Old customers have long-term cooperation,The longest is more than 7 years
10.Received various awards - Google is very recognized by us,They give us awards every year
FAQ
Direct factory pricing for High-Quality Copper Nickel Busbar with competitive wholesale rate
Custom Sizes & Large Stock Availability
Fast Global Shipping & Reliable Industrial Supply
Guaranteed High Purity for Electronic & Industrial Applications
It depends on the quantity of the order, 10-30 days for small orders. For large orders, it takes 60 days.
Yes! We accept OEM/ODM production. You can send us your samples or drawings.
T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
Yes, you are welcome to visit our factory. We are glad to have the opportunity to get to know each other.
We manufacture our products in Jiangsu, China and ship them from China to your country as soon as possible, which usually depends on your product requirements and quantity.
Yes, we can.
